Automatic Soft Drink Mixer

Product Overview

Description

Applicable products of soft drink mixer (CE):

juice, lemon carbonated drink, carbonated drinks, mineral water, non-carbonated drinks.





Character of the equipment:



1.Incessant production of carbonated drinks and non-carbonated drinks;

2.It is of fully automatic syrup mixing system;

3.Two homogenizing mixing tanks connect middle flow meter and syrup container fix by one in-feeding pipe;

4.Fully automatic hydraulic system is adopted for in-feeding of syrup system;

5.Syrup mixes by permutation pump;

6.It is easy to adjust capacity and proportion of water and syrup.





Advantage o f the system:



1.Direct connection between existing syrup system or transportation standard barrels,

2.Process of syrup mixing, forming reach fully automatization, which is very economical,

3.Several syrup fix can be added because module structure is adopted,

4.It reached sanitary requirement because of its frame and flange connection. Sanitary standard parts of the equipments can have it sterilized in production( product changing time is reduced),circle steel horses structure is used.

5.The parts of this mixer can be sterilized during production, resulting in higher productivity.





Parameter



Model	Unit	JSS-1500	JSS-2500	JSS-5000
Capacity	kg/h	1500	2500	5000
Mixing ratio region	water:syrup	3:1-10:1
Gas content	CO2H2O volume ratio	>2.6
Cooling water into temp	°C	3-5
Pre-carbonization tank and syrup tank work pressure	Mpa	0.05-0.08
Storage tank work presuure	Mpa	0.2-0.5
Power	kw	1.5kw	2.42kw	5.9kw
Dimension	mm	1200×1000×1800mm	1500×1000×2000	3000×2000×3000mm
Weight	kg	600kg	1000kg	3000kg

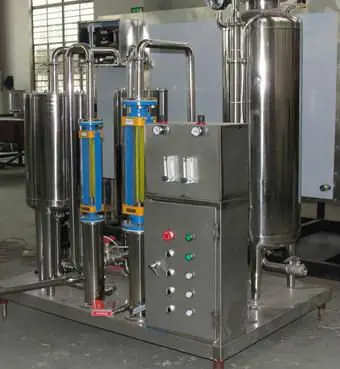

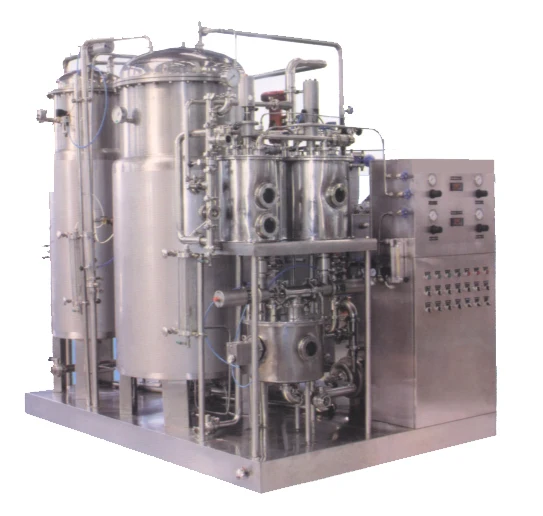

Machine picture
