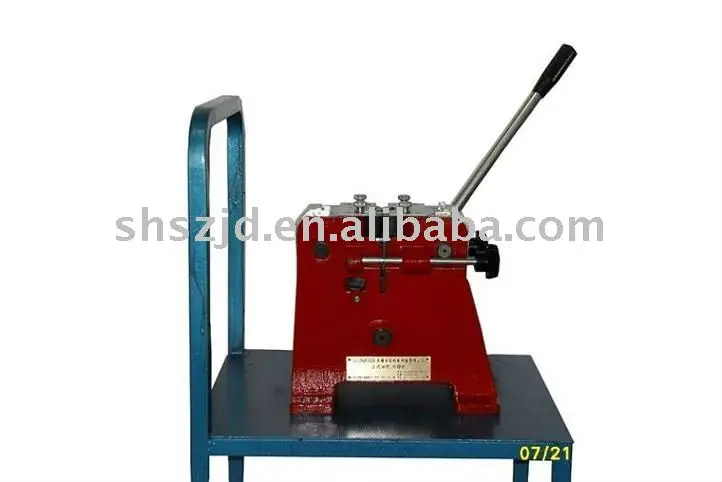

trolly cold press welding sets, trolly copper wire cold welding machine

Product Overview

Description

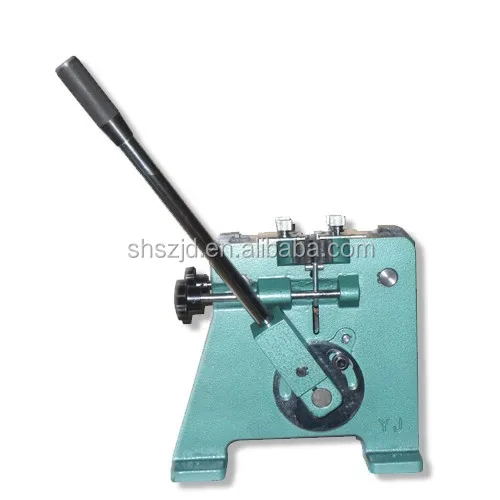

SZ-3TR trolly cold press welding sets / welding cable machine / trolly copper wire cold welding machine



1. Application: Widely used in the cold welding for the wire of copper, aluminum, gold, silver, nickel, and other non-ferrous metal wire/rod.
2. Range of the wire: Copper: 0.70mm-4.5mm
                               Aluminium: 0.70mm-6.0mm
3. Structure: Precise Moulding(spheroidal graphite cast iron QT-600-3
4. Advantage:

No power, no heat, no electricity,  light,  easy to operate, welding just one minute.

5. Overall dimensions: 300mm* 190mm × 290mm (L*W*H)
6. Material of mould: Integral casting/moulding

7.Weight:37KG



Description	Welding Range	Dimension (L*W*H)	Net weight
SZ-1A Hand Clamp cold pressure welder	Copper: 0.06-0.50mm, Al: 0.06mm-0.50mm	190mm*50mm*60mm	0.7KG
SZ-1B Hand Clamp cold pressure welder	Copper: 0.12-0.60mm,  Al: 0.12mm-0.65mm	150mm*65mm*90mm	1.1KG
SZ-2S Hand Clamp cold pressure welder	Copper: 0.30-1.00mm, Al: 0.30mm-1.30mm	215mm*75mm *75mm	1.3KG
SZ-2T Desktop cold pressure welding machine	Copper: 0.30mm-1.3mm, Al: 0.30mm-1.50mm	250mm*65mm *145mm	10.8kg
SZ-3T Desktop cold pressure welding machine	Copper: 0.80mm-4.00mm,  Al: 0.80mm-5.50mm	300mm*190mm *290mm	33KG
SZ-3TR Desktop cold pressure welding machine	Copper: 0.70mm-4.5mm,  Al: 0.70mm-6.00mm	300mm*190mm*290mm	36KG
SZ-158 Hydraulic pressure cold welding machine	Copper: 3.00mm-10.0mm, Al: 3.00mm-15.00mm	1230mm*700mm*1130mm	830KG



Brief description:

1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire

2. No need any power, heat, only match corresponding dies.

3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.



4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.

5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. It should make four single cavity dies or two double cavity dies.



6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.

7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.

For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.



8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.

9. It can weld following wires: copper wire ( purple copper wire, brass wire, including round wire or flat wire, square wire); aluminum wire. Plastic wire and other wires should remove surface insulation part, then welding.

Steel wire can’t be welded.

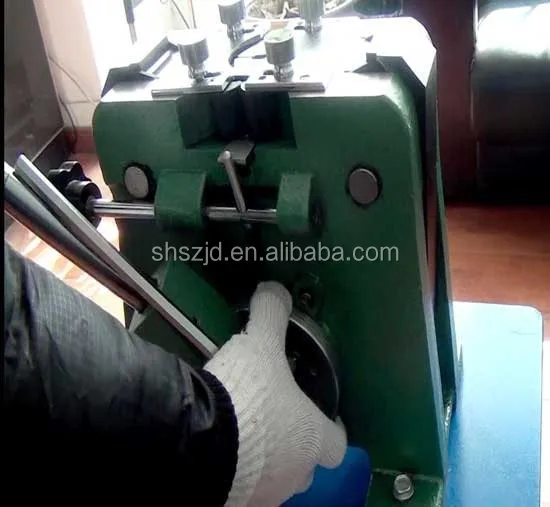

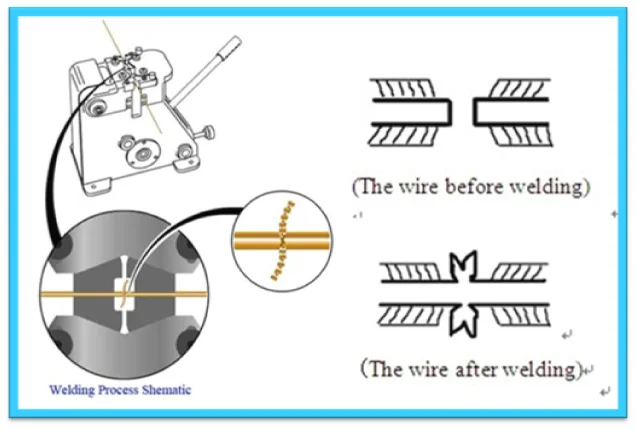

Welding process:

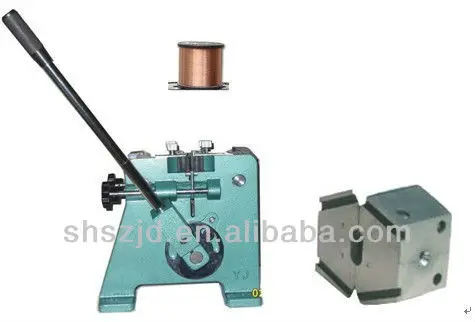

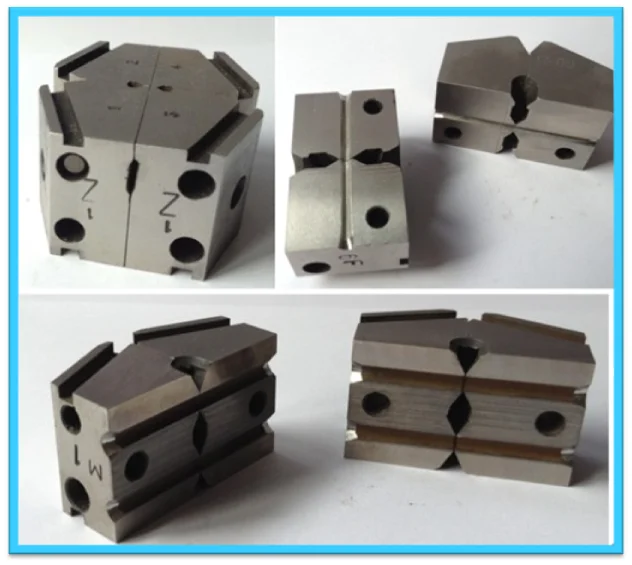

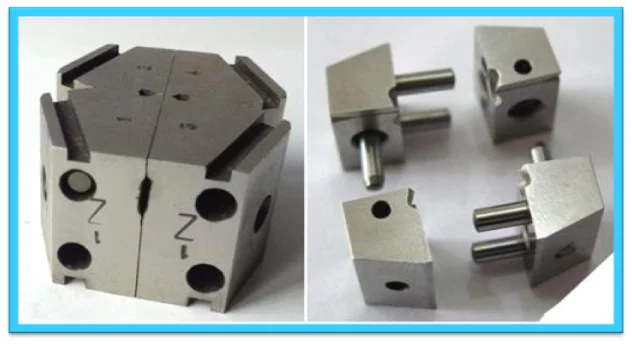

Cold welding dies for SZ-3TR( the dies on model SZ-3T and SZ-3TR are the same dimension):

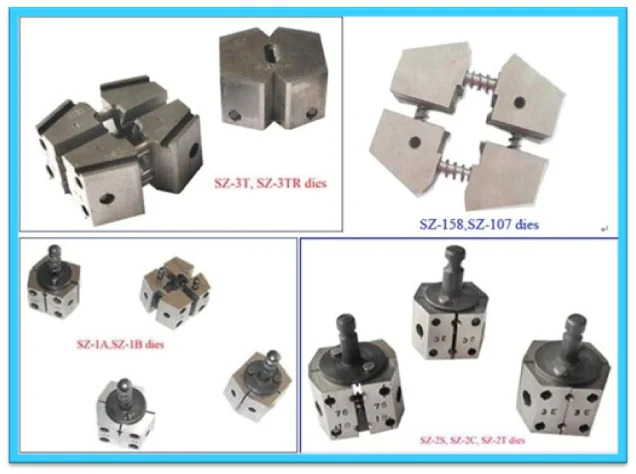

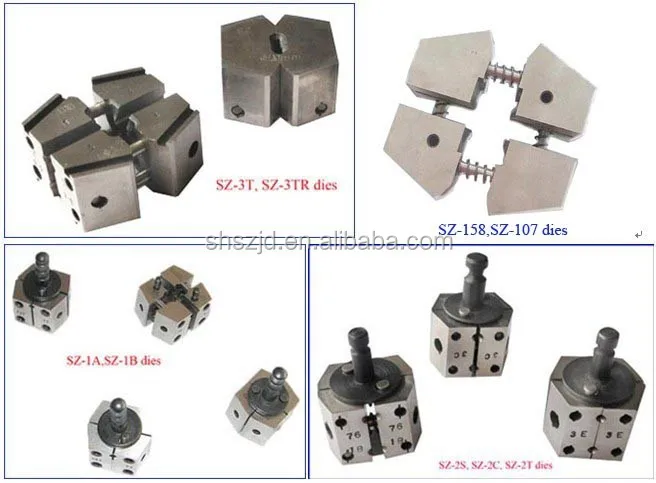

All welding dies of our cold welding machine( four types in total)

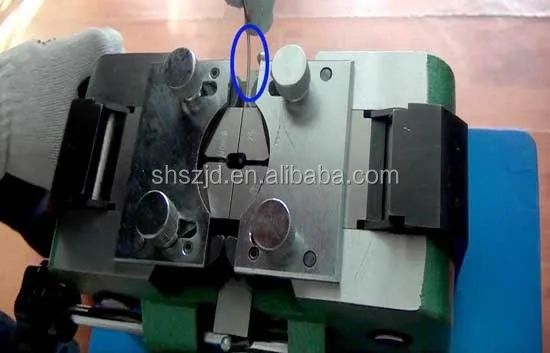

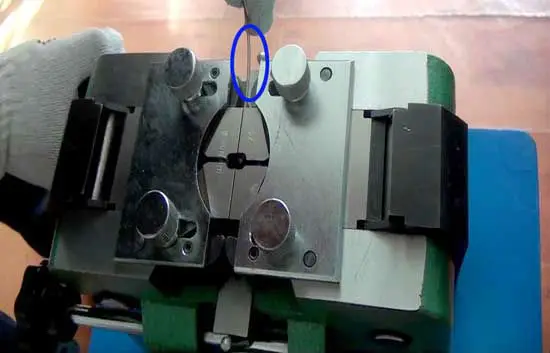

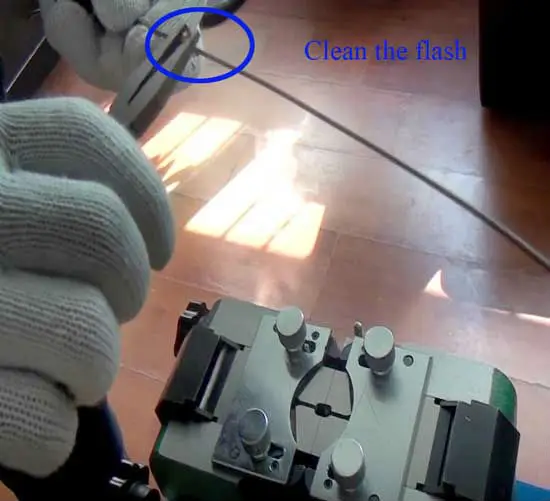

Model SZ-3TR cold welding machine operating process:

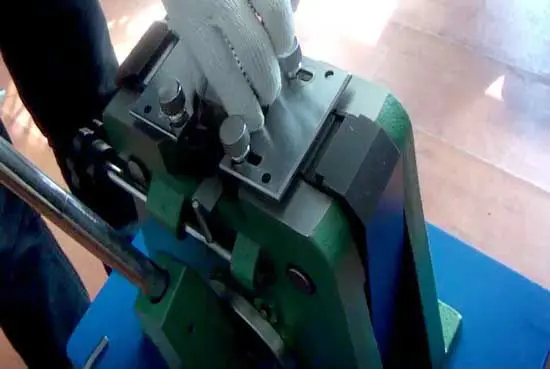

1. Install dies

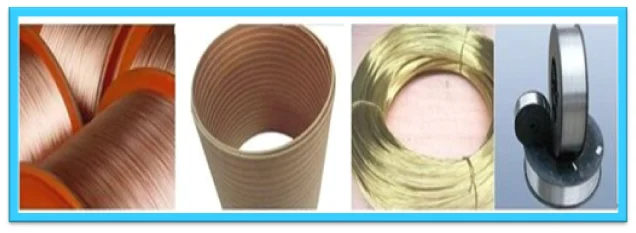

  Those wires can be welded by cable cold welder:

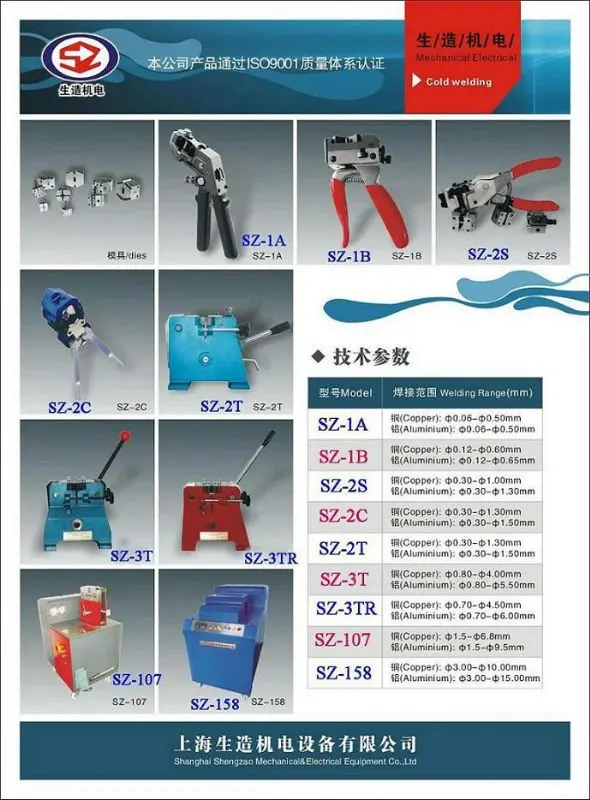

All cold welding list ( choose suitable machine by the wire size you need (mm) and compare the machine'swelding range:
