DR2 S 6 мм, 8 мм, отверстие вала, кодировщик двигателя, гибкая пластиковая муфта соединительной трубы, муфта передачи/Экономичная Цена (IBEST)

Product Overview

Description

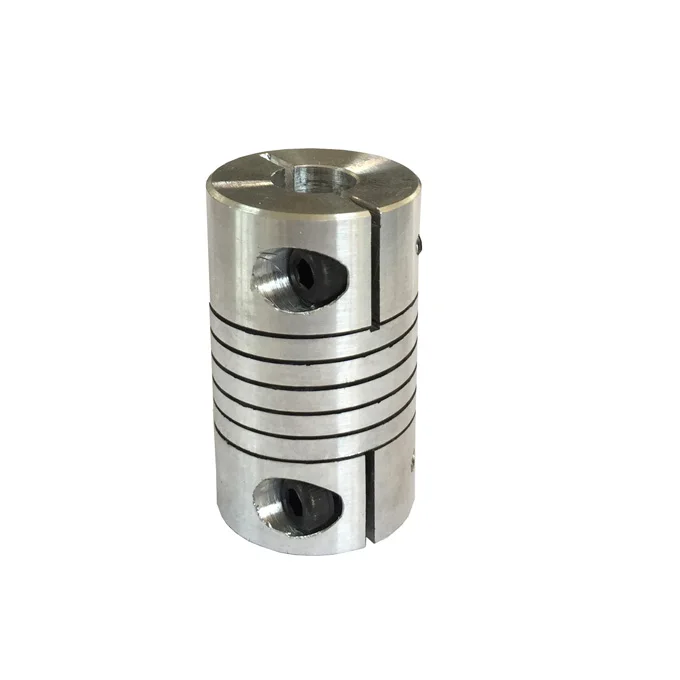

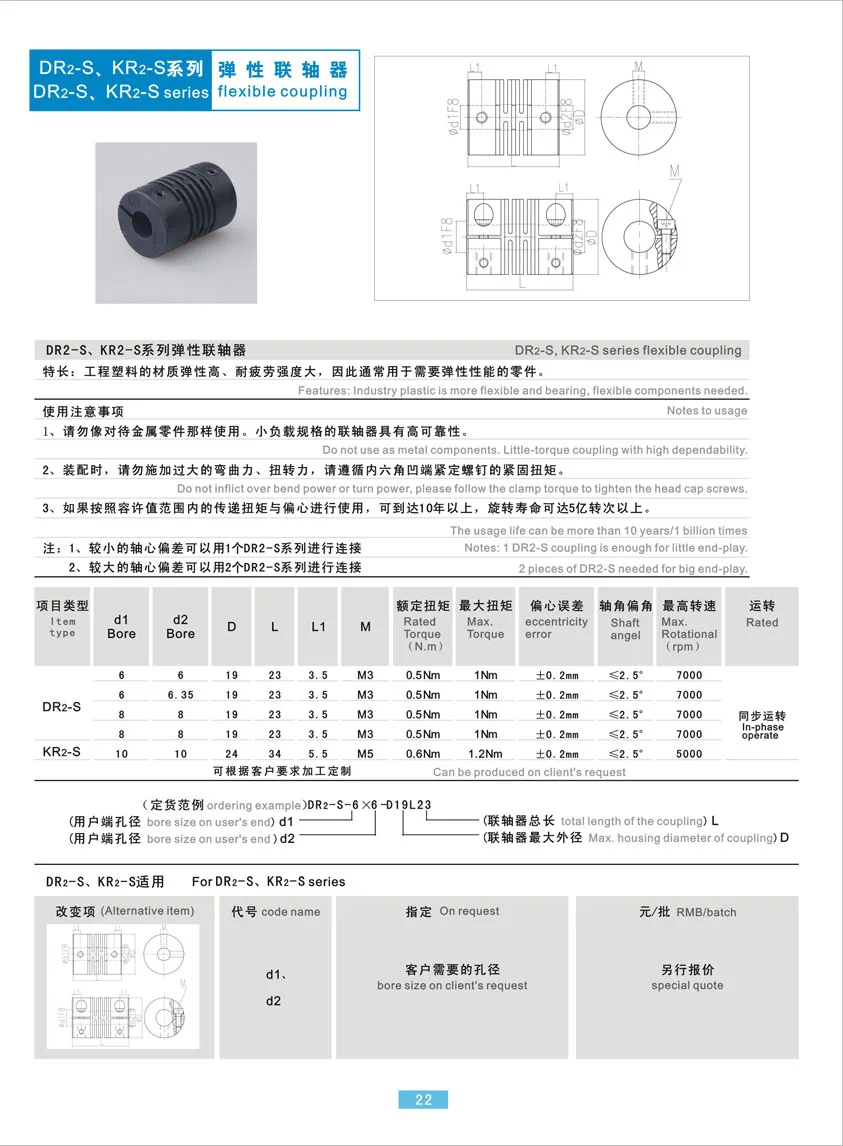

IBEST DR2-S Plastic Type Flexible coupling





Features:

*   D and L can be defined by user; Standard: Outside D=19mm, length=23mm.
*   Diameter of hollow shaft : Standard hole 6mm, 8mm. (or 10mm need to be specified when ordering)

*   Zero backlash.
*   Excellent response and high torque capacity.
*   Identical clockwise and anti-clockwise rotational characteristics.
*   One-piece metallic spring coupling, 2 screws for clamping.
*   For servomotor, step motor connection.
*    Material: Engineering plastics
*    M: The hole dia. Of the encoder end. N: The hole dia. Of the user end.

*    Torque <25.0Nm, the axial degree <0.5mm, the corner setover<1 degree.
*    Extensive application.
