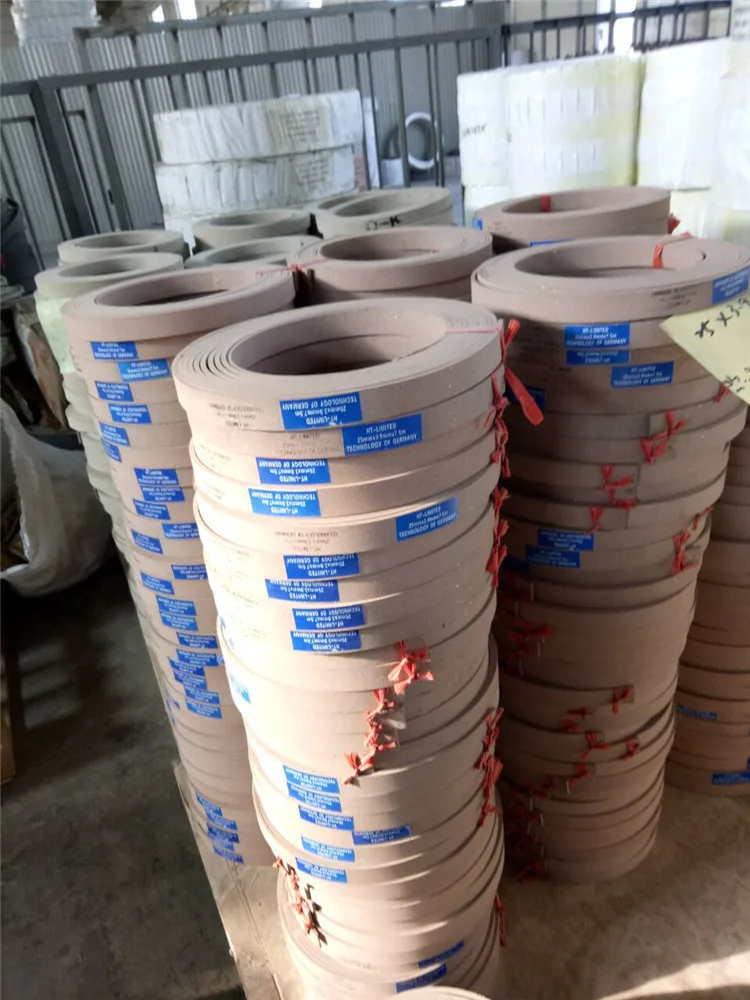

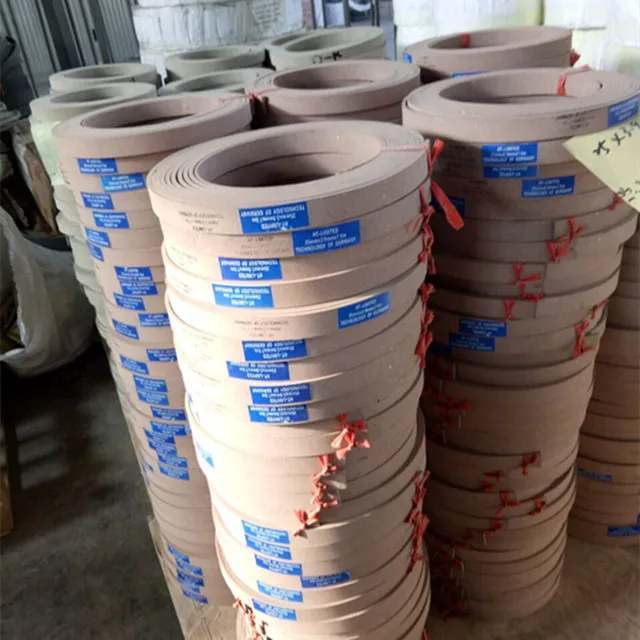

Non Asbestos rubber based brake lining in roll

Product Overview

Description

Non Asbestos rubber based Brake Lining in Roll



Color: as per your request

Thickness: 5-20mm;

Width: ≤300mm;

Length: 10m 15m 20m, or as per your request

Material: Ceramic grid fiber, synthetic rubber, phenolic resin, inorganic filling.

Work condition: 200°C, Pressure: 1.0 mpa

Standard: GB/T11834-2000

Application: widely use in decelerating and braking of engineer machines, industry machine and mining machines.

Performance: good elasticity, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, etc

We can manufacture the color, length and material as per your request

 Wear Performance of Woven Resin Brake Lining in roll

Interface Temperature	Friction coefficient	Wear rate(CM3/NM)
100°C	0.40—0.65	≤0.7×10-7
150°C	0.35—0.65	≤1.1×10-7
200°C	0.30—0.60	≤1.3×10-7

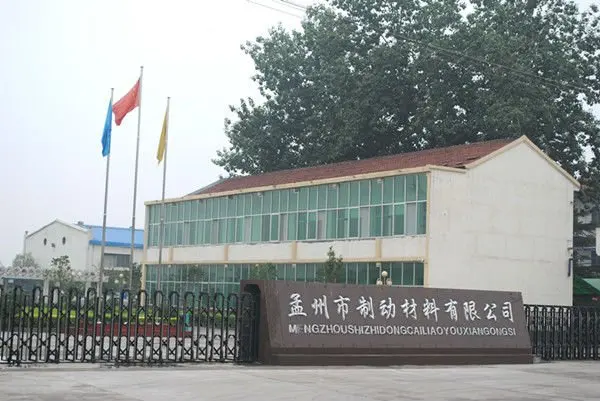

Our factory:

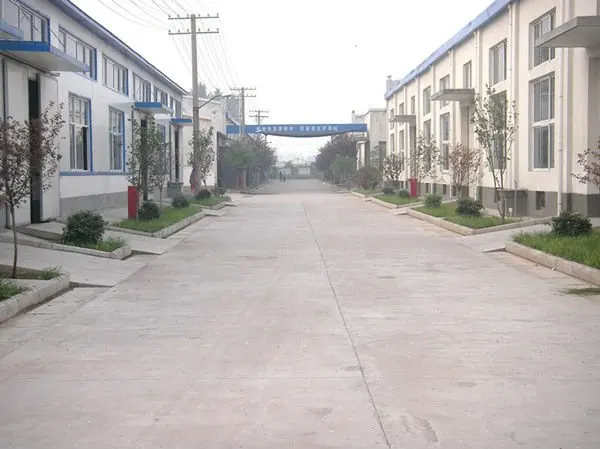

Factory plant:

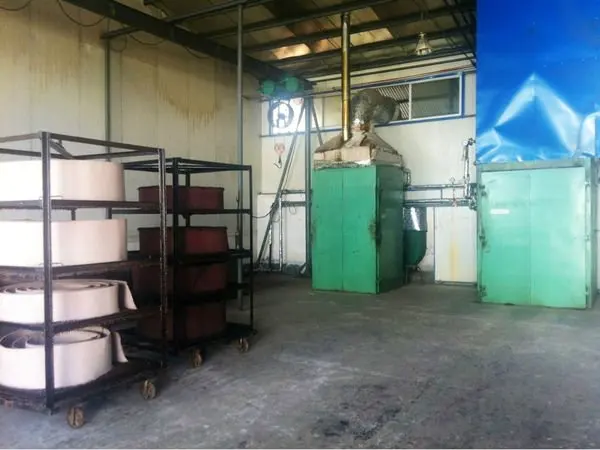

2. Dipping and roasting plant:

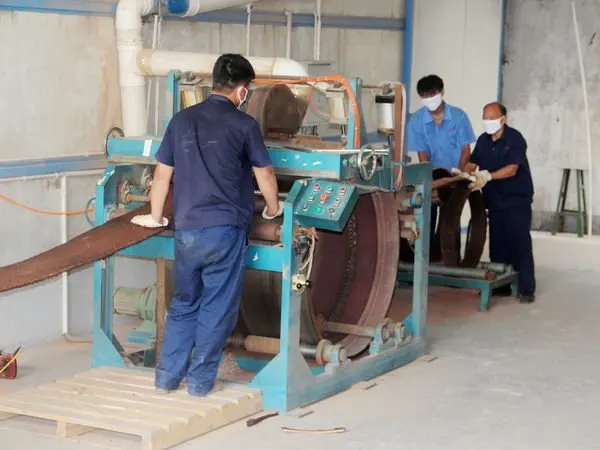

3. Cutting plant:

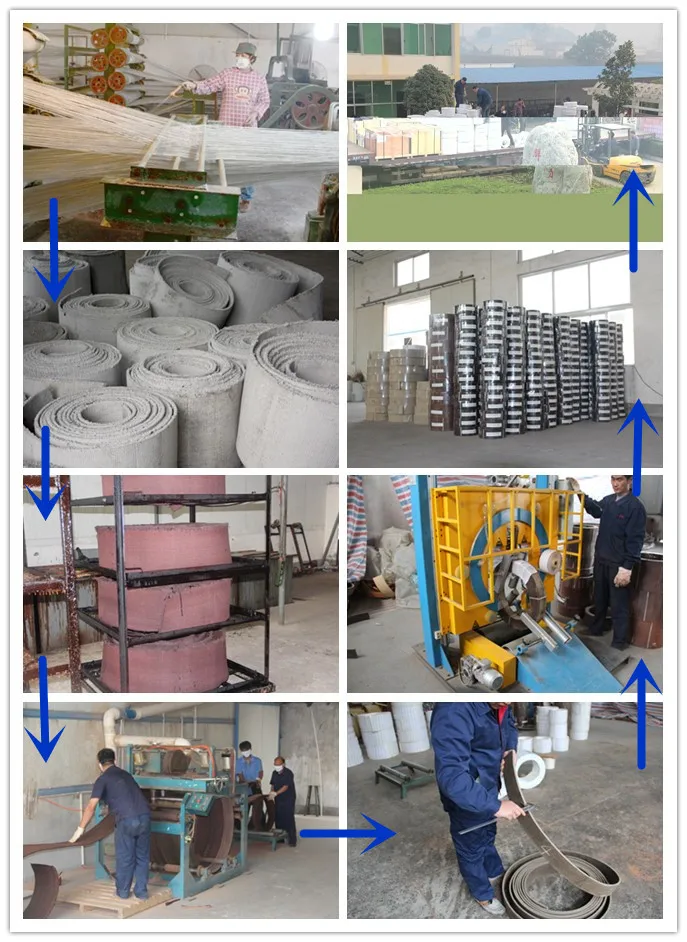

Production flow:
