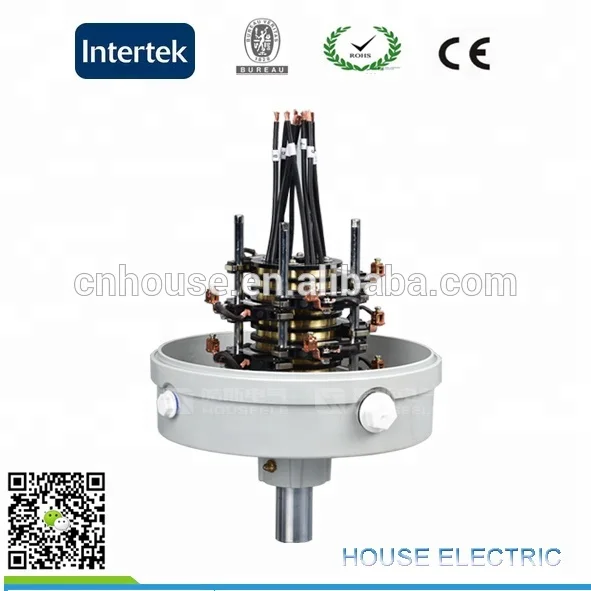

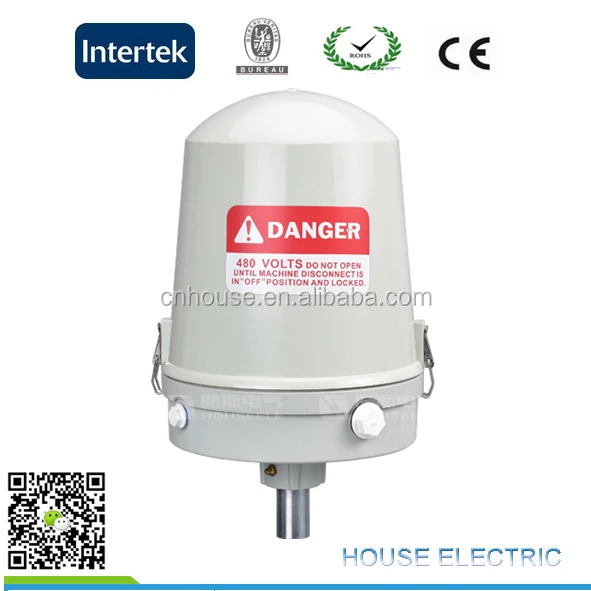

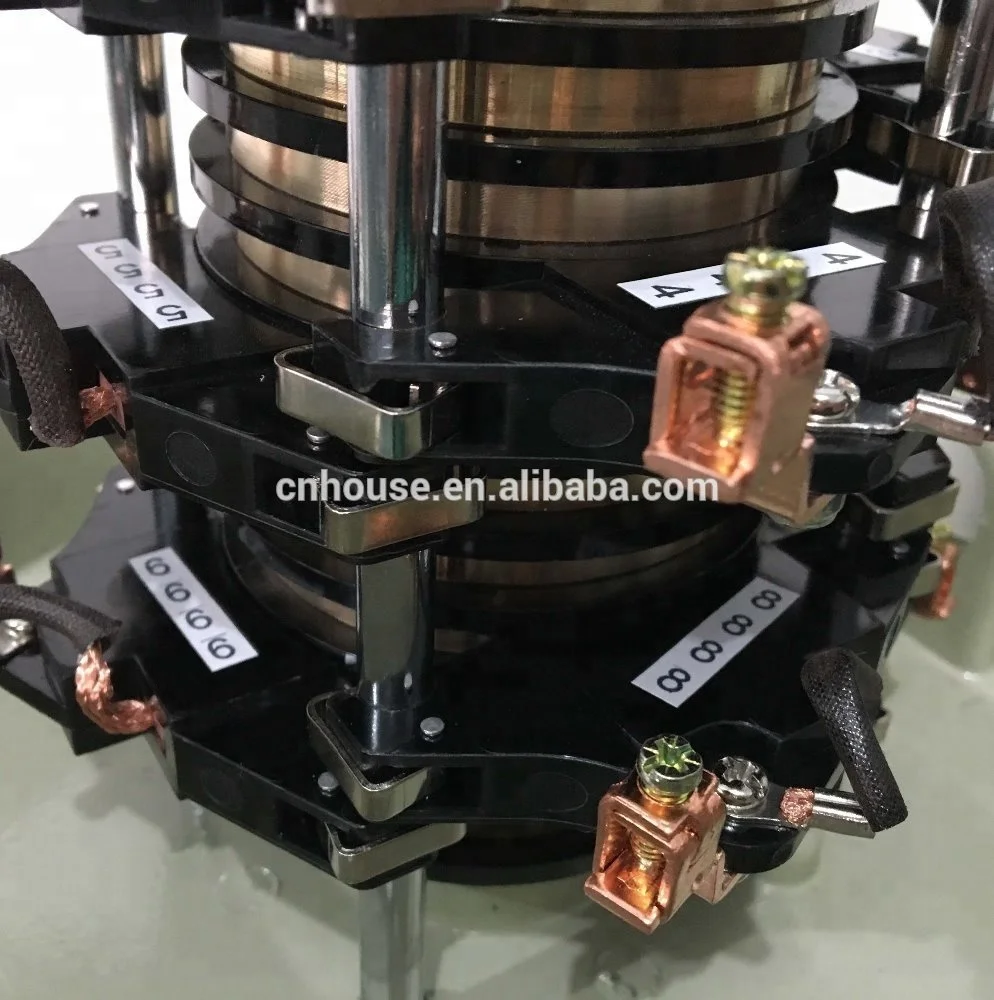

COLLECTOR RING-ELECTRIC CONTROL FOR CENTER PIVOT IRRIGATION SYSTEM

Model No.:  HS8120-11RINGS 25A

 Working temperature:

Temperature: -20℃~60℃

Relative humidity:<95%

Specification:

1.Dynamic contact resistance:<10mΩ

2.Voltage:0-480V/240VAC

3.Current:@25Amp per ring

4.Contact material:brass & Carbon brush

5.House material:metal base & ABS cover/aluminium cover

Feature:

1.with 11 rings the collector ring gives total connection between the main electric panel and the spans

2.Bearing rotate,make sure good performance.

3.the collector ring is water proofed

4.Stainless steel shaft makes long lifetime.

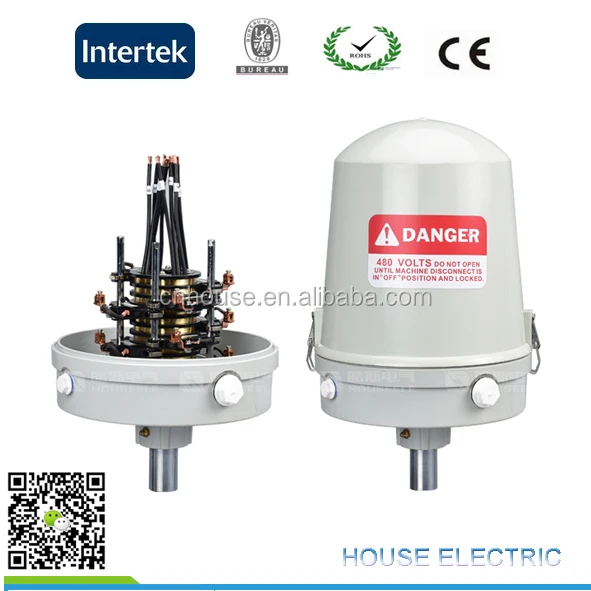

Installation:

The collector ring is installed on the center pivot irrigation frame,consists of rotation part and fixation part.The rotatry structure of rotating prt connected device called "roter:,the fixed part installed on the bracket of the equipment,called "stator"

The "rotar" is fixed through the G1" threaded hole or the G 1/2" threaded hole on the base side.The "stator" is installed on the base through the mouting shaft G1"

Maintenance Mode:

1.The slip ring could not exceed the rated current and voltage when working.

2.The whole carbon brush set should be changed when the 2/3 original used out.

3.Long term storaged product should be rotated 5-10 minutes with no-load and then plus load before use.

4.Accesorries:we provide 11b cable connectors cover

Drawing:

r

Features:

Electric controlers parts:

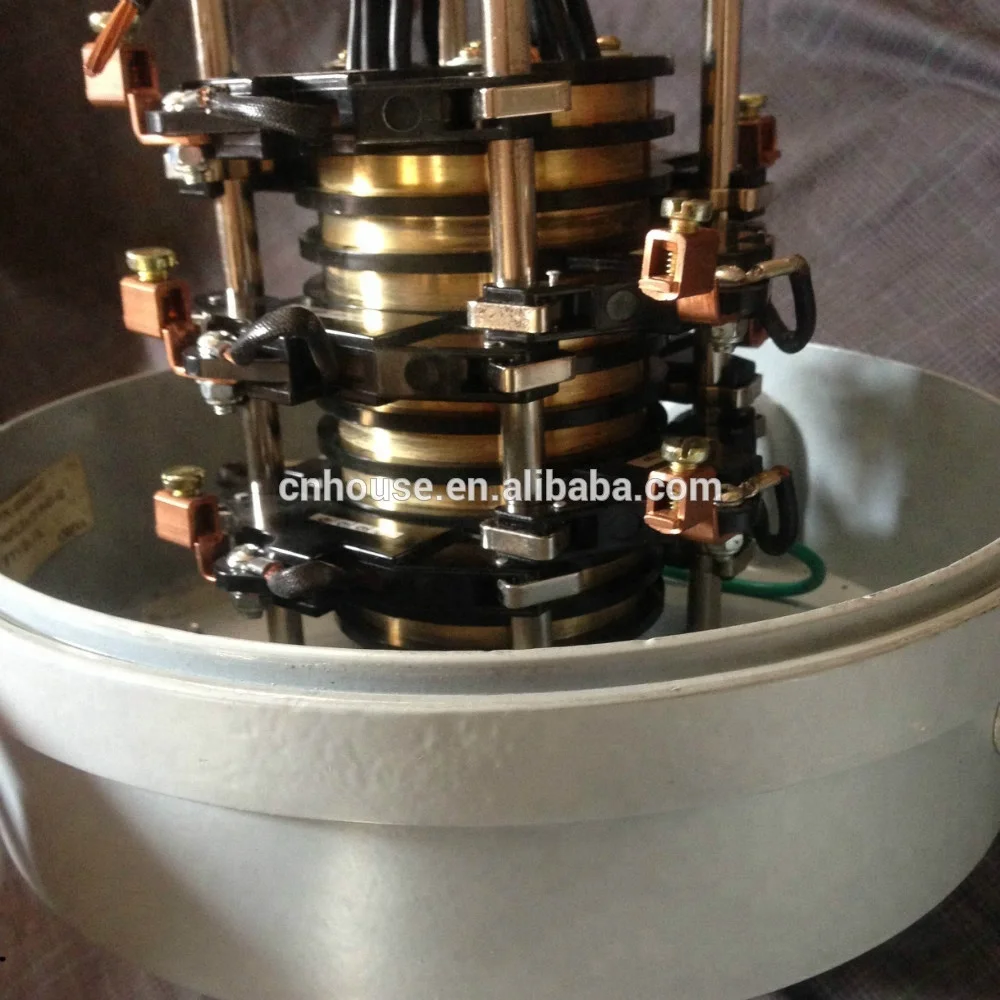

 11 lines slip ring for center pivot irrigation system,carbon brushes collector ring

Welcome to contact me to get more detials.

11 lines slip ring for center pivot irrigation system,carbon brushes collector ring
