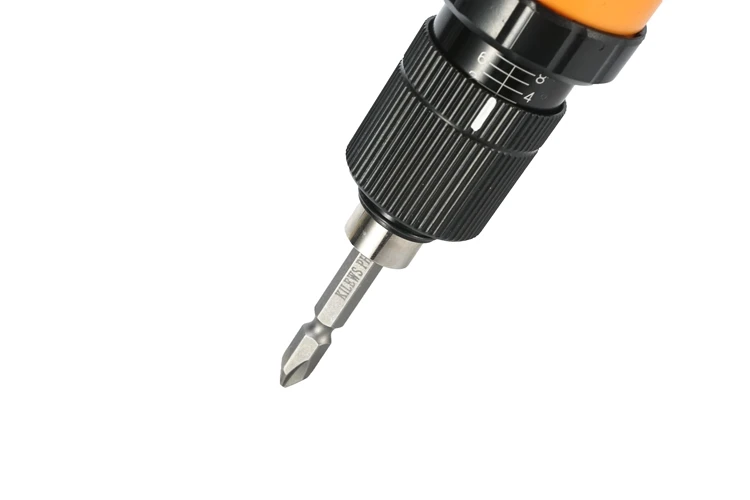

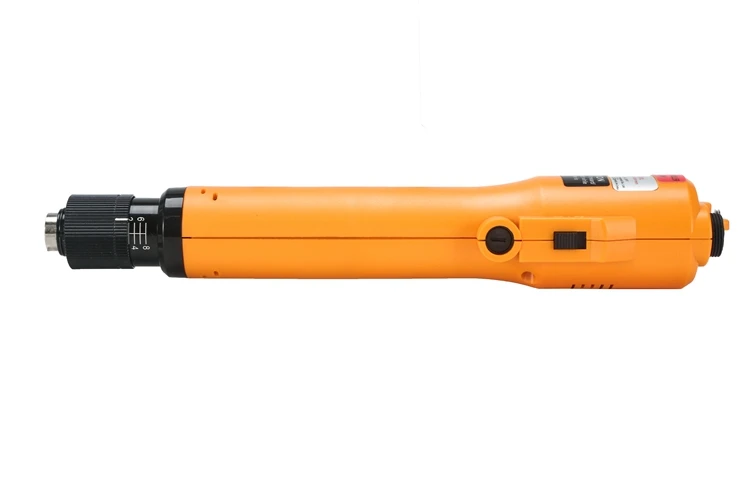

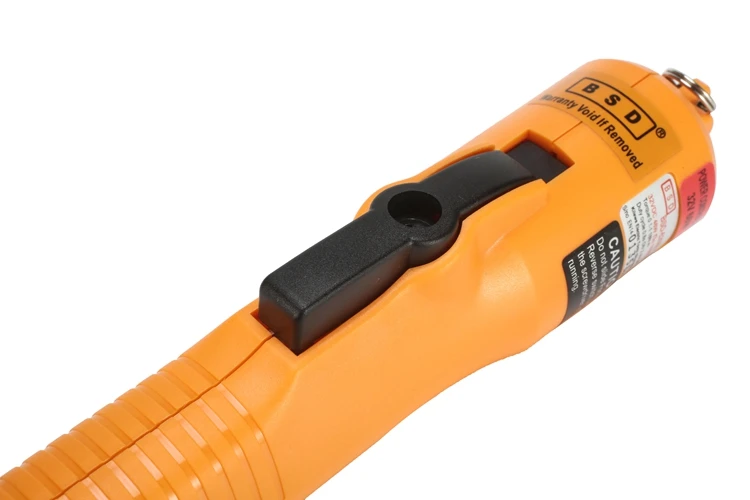

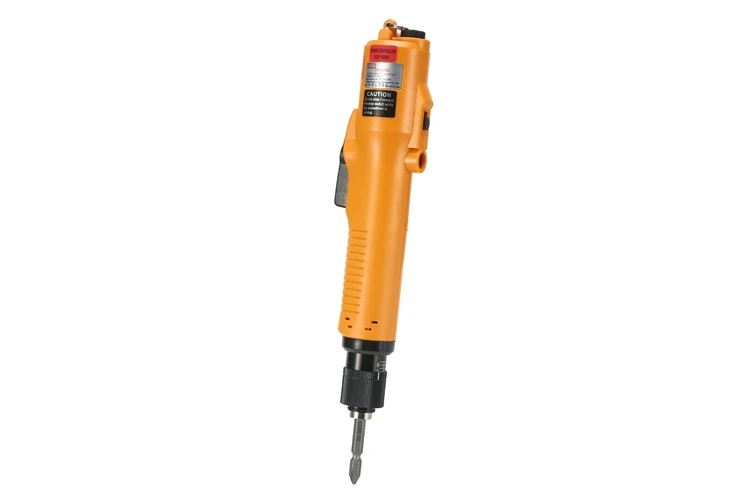

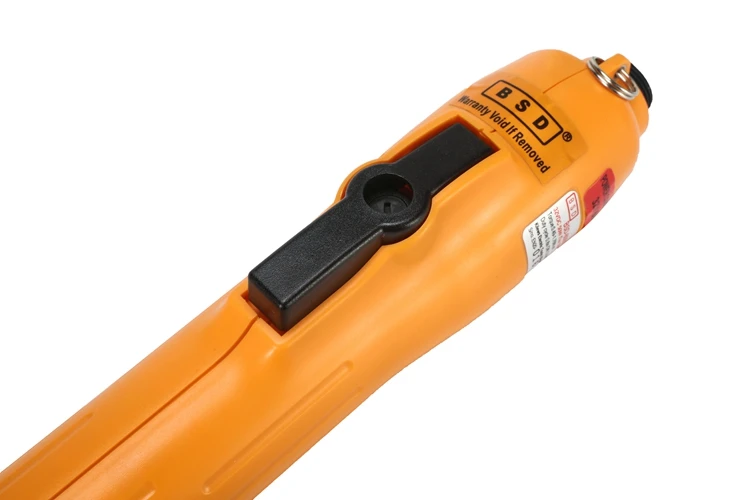

BSD 8000L High Torque Compact DC Automatic Electric Screwdriver ( electric driver for assembly,electric screw driver)
- Category: Power Screw Drivers >>>
- Supplier: Kilews Electric Tools (Shanghai) Co. Ltd.
Share on (464940417):
Product Overview
Description
Product Overview

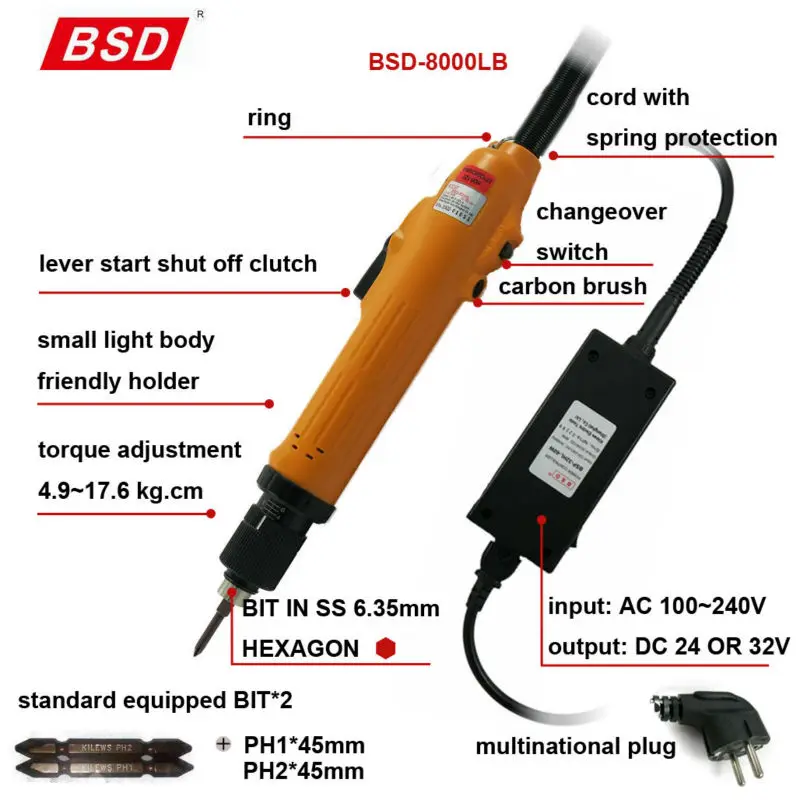

High Torque Compact DC Automatic Trigger Start Electric Screwdriver

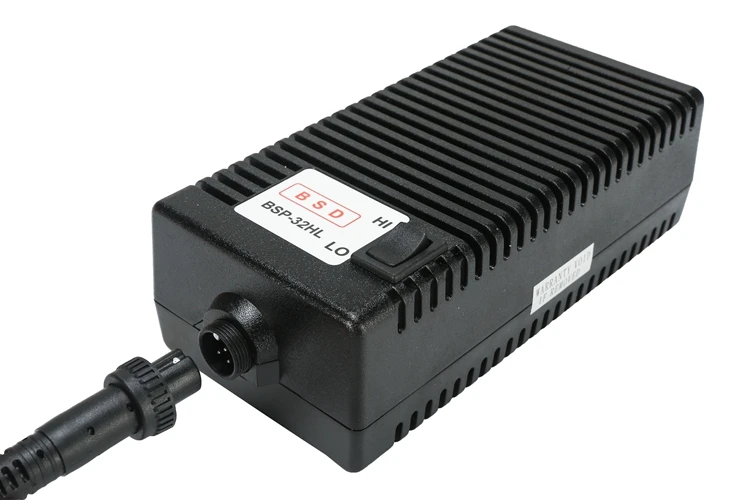

1) The power controller features:
a) Model: BSP-32HL
b) Input voltage: AC 100~240 50/60Hz
c) Output voltage: DC 32V
d) Outside dimensions: 200*80*66mm
e) Weight: 460g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.5~1.76 N.m
1) The power controller features:
a) Model: BSP-32HL
b) Input voltage: AC 100~240 50/60Hz
c) Output voltage: DC 32V
d) Outside dimensions: 200*80*66mm
e) Weight: 460g
f) Remark: RoHS
2) Screwdriver features:
a) Torque range: 0.5~1.76 N.m
b) New technology high temperature-resistant, vibrating-resistant, slippery-resistant, friendly holder, free from fatigue under long-time using and improve production efficiency.
c) Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency.
d) High tech DC motor made by Japanese materials. Fast start with low electric current. Stable rotation and precision±3%.

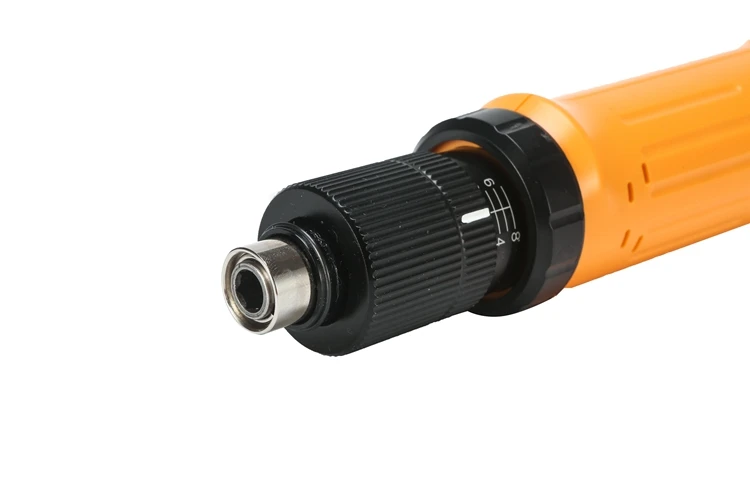

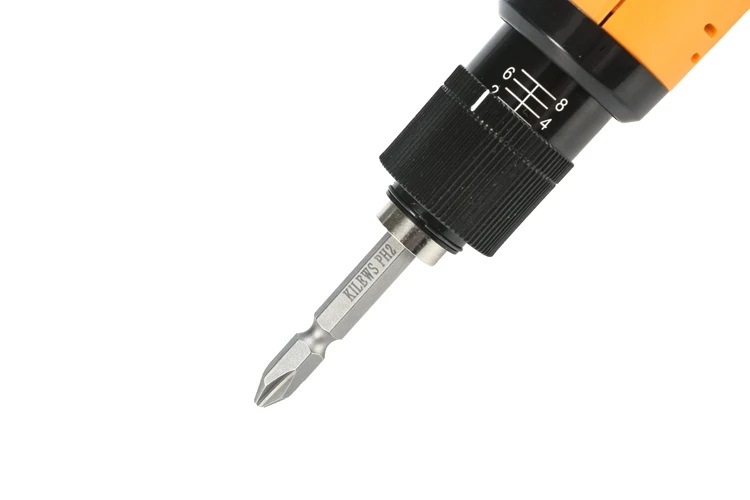

e) 0-8 stepless torque adjustment, rotation speed selected by switche Hi& Lo or VR(freely adjust).
f) Be operated with torque fixing ring (KC-2) most qpplied to office machines, PC andperipheral optional.
g) Precisive torque, torque adjusted from small to large, stepless, stable, fast speed,easy operation and improve production efficiency.
c) Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency.
d) High tech DC motor made by Japanese materials. Fast start with low electric current. Stable rotation and precision±3%.
e) 0-8 stepless torque adjustment, rotation speed selected by switche Hi& Lo or VR(freely adjust).
f) Be operated with torque fixing ring (KC-2) most qpplied to office machines, PC andperipheral optional.
g) Precisive torque, torque adjusted from small to large, stepless, stable, fast speed,easy operation and improve production efficiency.
FEATURES AT A GLANCE
Economical solution for general assembly
High speed model available
Carrying case available upon request
CE available upon request
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Torque | 0.5~1.76 N.m | 5~18 kgf.cm | 4.4~15.84 Lbf.in |
2 | Unloaded Rotation Speed(r.p.m) | Lo 600 Hi 1000 | ||
3 | Torque Adjustment | Stepless | ||
4 | Screw Size Dia(mm) | 2.0~3.5(Machine Screw) | 2.0~3.0(Tapping Screw) | |
5 | Power Consumption | 50W | ||
6 | Weight(g) | 600 | ||
7 | Length(mm) | 260 | ||
8 | Repeatable Torque Accuracy (%) | ±3% |
PRODUCT CONFIGURATION
