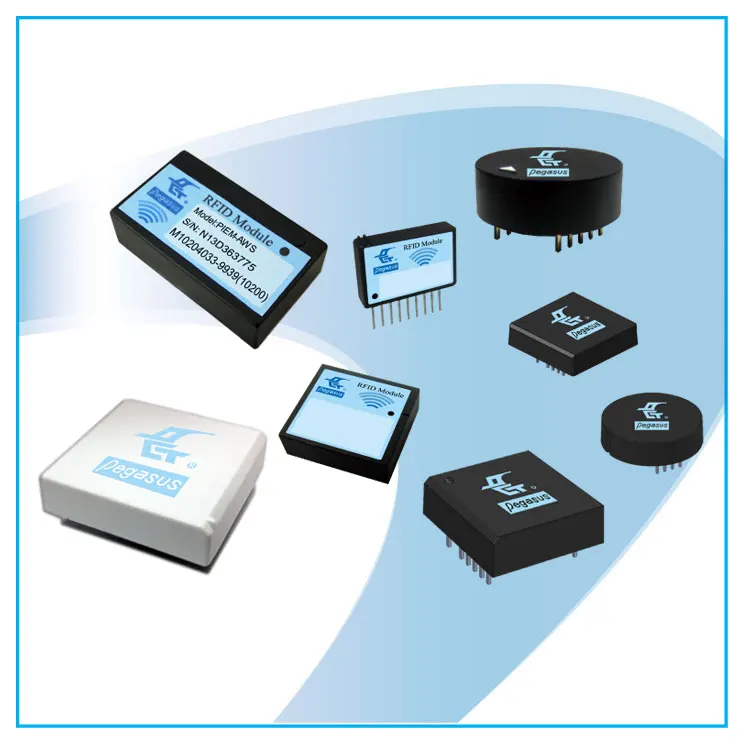

RFID EM LF 125KHz with antenna reader module, EM4100, EM4102, EM4200, TK4100, T5567

Product Overview

Description

RFID EM 125KHz with antenna reader module

Features
•AM 125KHz contactless proximity reading RFID module specially for EM cards.
•Either Wiegand 26bits , ABA or ASCII,  format output selected by pin connection.
•Read only for EM cards, and the data are sent by Data 0 and Data 1.
•Lower cost with effective performer.
•Compact size.
•Can support to read Manchester 64 and 128 bits (with encryption function) cards, and in ASCII format output.(option).
•SDK simplifies various RFID product developments.
•Supply flexible ODM/OEM.
•ID-12 compatible.(Model No.PIEM-FWAS-LB)
•Including antenna
•Without antenna.(optional)

•With CE certification

Specifications

•Dimensions:26 (L) x 25 (W) x 7 (H) mm

•Transmitting frequency:AM 125 KHz

•Card format:EM 4102 or compatible

•Read range:10cm(Depend on card type)

•Voltage supply Range:+3.7V through +5.4V

•Power consumption:5VDC @ 30mA nominal, 12VDC(optional)

•Standard encoding:Manchester 64-bit

•Operating temperature:-10℃~75℃

•Storage temperature:-20℃~85℃

•Storage humidity:5 ~ 95% RH

•Net weight:7g±5%

Optional accessories

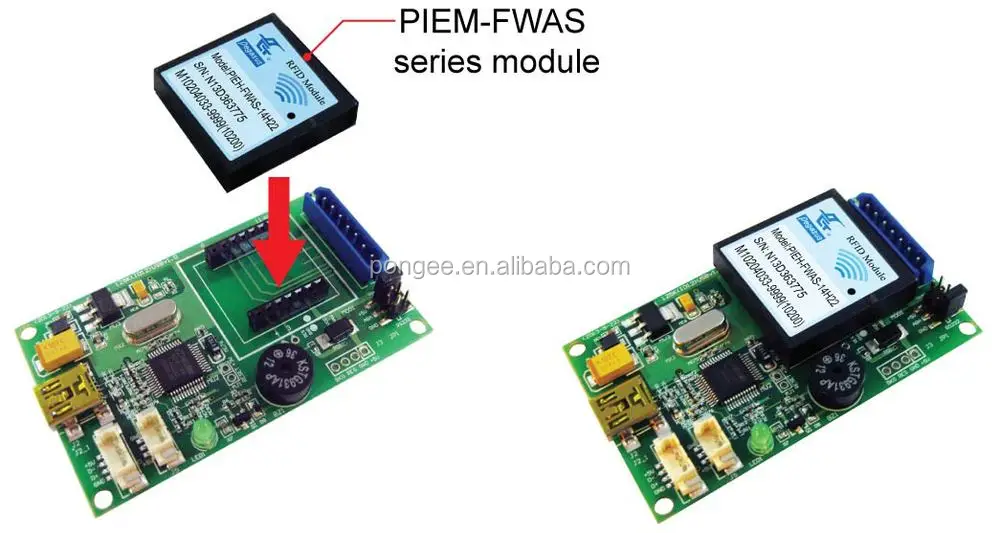

125KHz ASK EM starter kit module(PXEM-F-SDK) support multi-cable wiring connection(7 pin, 3 pin, Mini USB cable) convert into multi-interface output for testing.(Wiegand, ABA, RS-232, USB)

It helps to shorten and simplify RFID products development schedule compared with PIEM-FWAS series module.

Application field



How to order

PIEM-FW: RFID 125KHz EM read module, Wiegand 26 bits, With antenna.

PIEM-FWS: RFID 125KHz EM read module, Wiegand 26 bits, ASCII, With antenna.

PXEM-FWAS: RFID 125KHz EM read module, Wiegand 26 bits, ABA, ASCII, Without antenna.

PIEM-FWAS: RFID 125KHz EM read module, Wiegand 26 bits, ABA, ASCII, With antenna.

PIEM-FWAS-H: RFID 125KHz EM read module, Wiegand 26 bits, ABA, ASCII, High Reset, With antenna.

PIEM-FWAS-LB: RFID 125KHz EM read module, Wiegand 26 bits, ABA, ASCII, Low Reset, With antenna.(ID-12 compatible)

PIEM-FS-840: RFID 125KHz EM read module, ASCII, read Manchester 64 and 128 bits, With antenna.

PIEM-FW34AS: RFID 125KHz EM read module, Wiegand 34 bits, ABA, ASCII, With antenna.

PIEM-FWAS-12V: RFID 125KHz EM read module, Wiegand 26 bits, ABA, ASCII, DC 12V, With antenna.

PXEM-FSCS-3.3V: RFID 125KHz EM read module, ASCII, Checksum, DC 3.3V, Without antenna.









We reserve the right to change the specification without priornotice or obligation!
