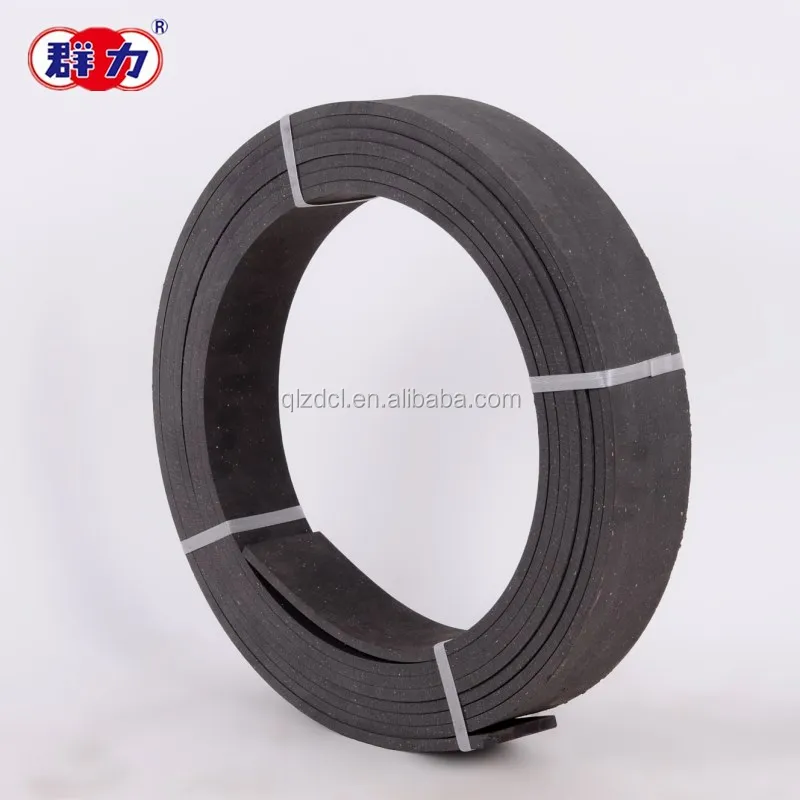

Auto brake roll lining, Non Asbestos rubber based Auto Brake Roll Lining

Product Overview

Description

LFX-J Non Asbestos rubber based Brake Lining in Roll



Color: as per your request

Thickness: 5-20mm;

Width: ≤300mm;

Length: 10m 15m 20m, or as per your request



Material: carbon fiber, mineral fiber, synthetic rubber, phenolic resin, inorganic filling, wire netting.

Work condition: 200°C, Pressure: 1.0 mpa



Standard: GB/T11834-2000



Application: widely use in decelerating and braking of engineer machines, industry machine and mining machines.



Performance: good elasticity, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, etc.



We can manufacture the color, length and material as per your request



 Wear Performance of Woven Resin Brake Lining in roll

Interface Temperature	Friction coefficient	Wear rate(CM3/NM)
100°C	0.40—0.65	≤0.7×10-7
150°C	0.35—0.65	≤1.1×10-7
200°C	0.30—0.60	≤1.3×10-7
