Product Overview
Description

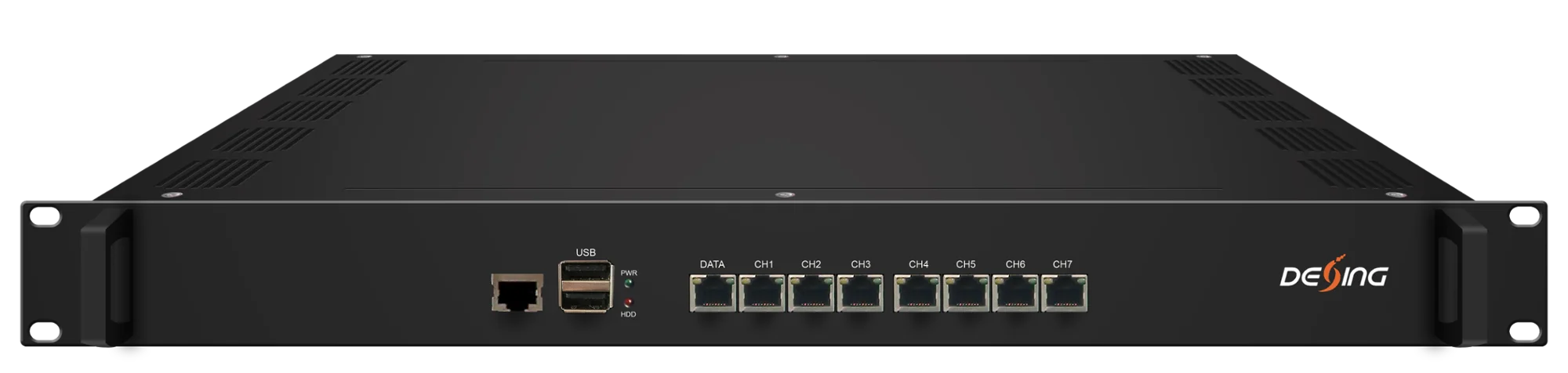

NDS3508F IPTV Gateway with 7 IP input over UDP, Http, RTSP and HLS
Outline
Dexin NDS3508F IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
Main Features
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
l Support TS files uploading through Web management
l Support IP anti- jitter function
l Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)
l Support downloading Dexin IPTV APK directly from this device
l Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
l Support program playing with APK downloaded android STB and TV, maximum 150 terminals
l Control via web-based NMS management through DATA port
Specifications
Input | IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS | |
TS files uploading through Web management | ||
IP output | IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast) | |
System | Memory: 4G | |
Solid-State Disk(SSD): 16G | ||
Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) | ||
Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK) | ||
Play programs with APK downloaded android STB and TV, maximum 150 terminals | ||
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization | ||
web-based NMS management thru DATA port | ||
General | Demission | 482mm×324mm×44mm (WxLxH) |
Temperature | 0~45℃(operation), -20~80℃(storage) | |
Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
