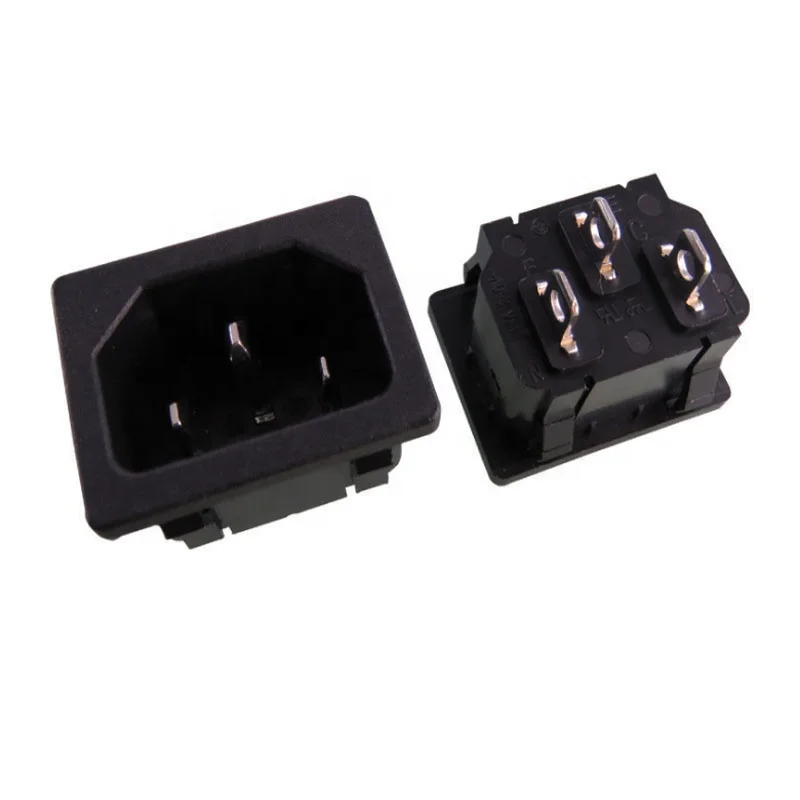

3pin male plastic plugs with earring holes
- Category: >>>
- Supplier: Shenzhen Hongming Qiang Technology Limited
Share on (465266083):
Product Overview
Description
3pin male plastic plugs with earring holes

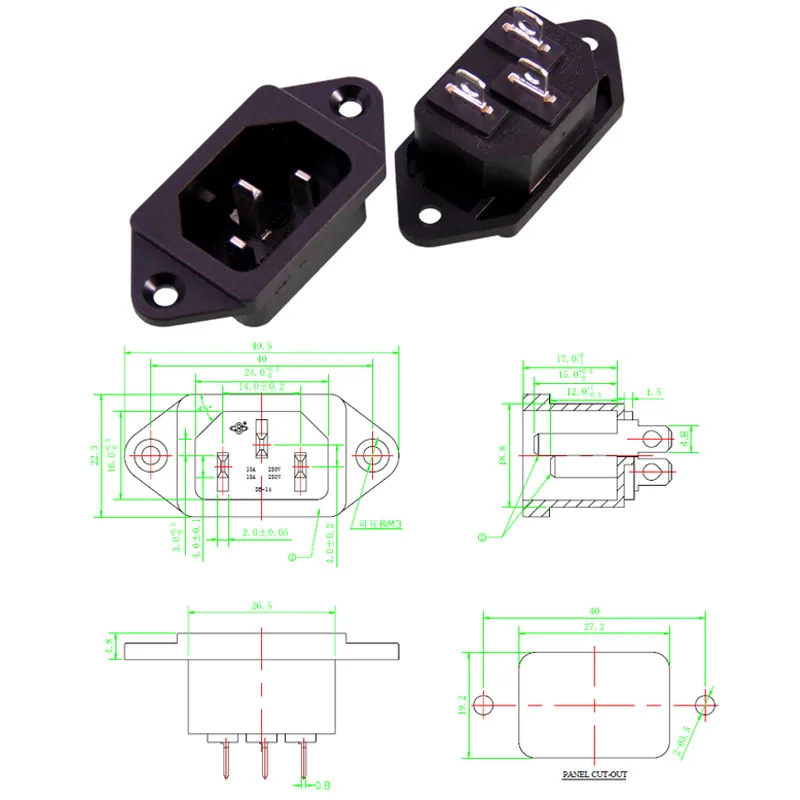

1.Specification
Name | AC power inlet with rocker switch | Brand | HM |
Model | HM-DB-14 | Type | AC Power Socket |
Rated load | 10A 250V,15 A 250V AC | ||
Material | Housing:PBT(thermoplastic UL flammability V-094) ,Terminal:copper alloy | ||
Operating temperature | -25°C~+70°C | Insulation insistence | 100MΩ min 500V DC |
Pull force of terminal | Push:≤60N(6.12Kgf) pull: ≥30N(3.0kfg) | ||
Electric strength | 2000V for one minute | ||
Hole | Funneltype , PCB ,straight terminal | ||
| hard card | A=0.8,1.0,1.2,1.5,2.0,2.5mm | ||
| switch choosed | 2pin,3pin,4pin rocker switch | ||
more related product details,please feel free to contact with us!
Packaging & Shipping
2.About us
Q1: Are you a factory or trader?
we are a factory.
Q2: Why choose your company?
1.more than ten years manufacture experience about more kinds of switch
2.good quality,competitive price,fast delivery time
3.more switch type choosed,such as keyboard switch,rotary switch,rocker switch, push button switch, slide switch,dip switch,micro switch,tact switch,ac/dc socket and connector.
4.Design and Develop new mould depends on clients requirement
5.The best after-sale service
6.Anytime you need help ,please contact with us we keep online all the time.
Q3: How to get the samples and quote the best price soon?
we need to know more details about the products you inquired,for example
what functions?what size?what rating?where the type to be used?
we free to offer the samples
Q4.How about the delivery time?
Gernally speaking it is need 2 weeks if your quantity below 10K pcs or it depends on your quantity to confirm the time.
Q5:How about the package of the goods?
we often package the goods more safty, both inner box and outside cartons
