Large capacity rice color sorter machine with 441 channels
- Category: Grain Processing Machinery >>>
- Supplier: Hefei Taihe Intelligent Technology Group Co. Ltd.
Share on (466807803):
Product Overview
Description
Large capacity rice color sorter machine with 441 channels
DC series 7R MODEL |
DC series 10R MODEL |

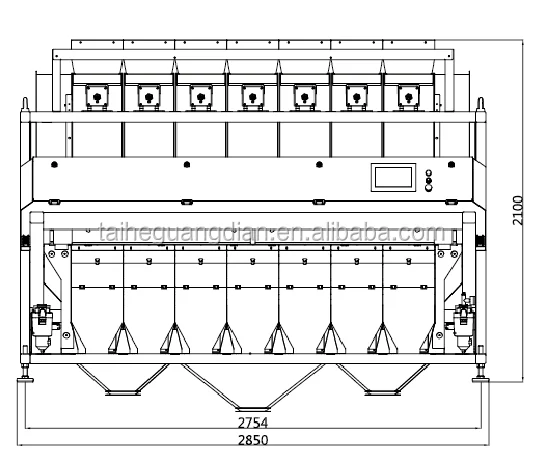

Schematic
Product Technical Features
Camera
leading in the industry
International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²
High-frequency Solenoid Valve
leading in China
High-quality high-frequency solenoid valve, with consistency of near zero error.
Service life more than 1 billion times.
Ultra high precision, leading in China
Intelligent Image Processing Algorithm
The combination of colors and shapes of
intelligent algorithm
Leading role in China.
Precise professional sorting solutions
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Feed Trough
special technology
Application of high-quality 300mm ultra wide trough in China;
Special anodization treatment process ensures the required production in line with the international first-class level;
Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
Human-Computer Interface
simple and easy to operate

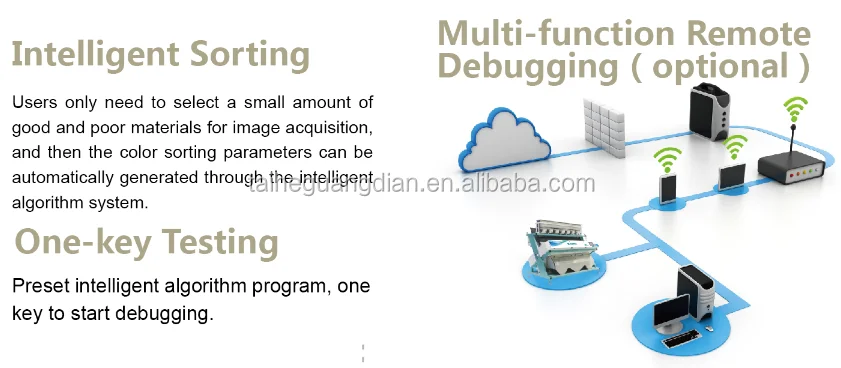

More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.

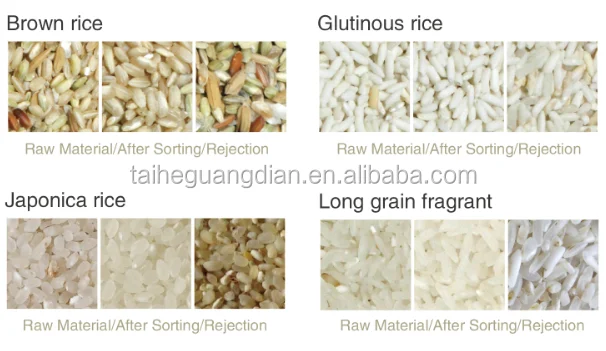

Examples Of Sorting
Product Model
DC series 7R
DC series 10R
Product Specifications
| MODEL | SIZE(MM) | POWER(KW) | PRODUCT OUTPUT(T/H) | SORTING ACCUARCY(%) | CARRYOVER RATE |
| 6SXM-315 | 2226*1520*2070 | 3.3 | 5.2-12.0 | ≥99.99 | ≥10:1 |
| 6SXM-378 | 2540-1520-2070 | 8.8 | 7.0-12.0 | ≥99.99 | ≥10:1 |
| 6SXM-441 | 2854*1520*2070 | 4.4 | 9.0-17.0 | ≥99.99 | ≥10:1 |
| 6SXM-504 | 3168*1520*2090 | 5.0 | 10.0-19.0 | ≥99.99 | ≥10:1 |
| 6SXM-630 | 3796*1520*2090 | 6.2 | 11.0-20.0 | ≥99.99 | ≥10:1 |
| 6SXM-756 | 2560*2787*1911 | 7.6 | 12.0-24.0 | ≥99.99 | ≥10:1 |
| 6SXM-1008 | 3188*2787*1911 | 10.0 | 16.0-32.0 | ≥99.99 | ≥10:1 |
Remarks:
1.The color performance above takes the japonica rice with impurity content of 2% as an example. Specific indexes may vary with the difference in materials and impurities.
2.There will not be further notice about product updating, and users should refer to the actual conditions of the machine.
