Product Overview
Description
Product Description
| Model:FX-475-484-20 | |
| Item | Technical |
| Frequency range | 475.3 - 484.8MHz |
| Insertion loss | ≤2.5dB |
| Ripple | ≤2.0dB |
| Return Loss | ≥18 dB |
| Rejection | 60dB≥@474.0MHz |
| 60dB≥@486.1MHz | |
| Power | 20W |
| Temperature | -10°C~+65°C |
| Connector Type | N-K,50Ω |

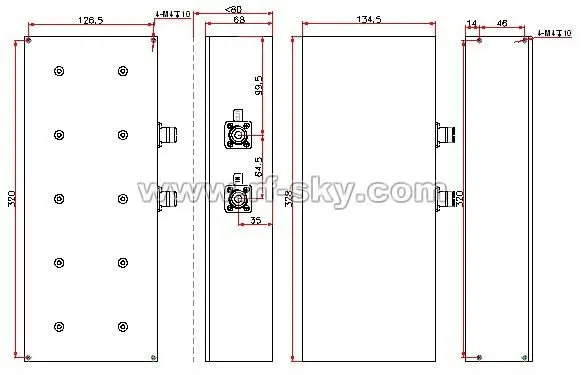

| Size | 328*134.5*68 mm(Don’t include tuning screw 10mm) |
| Color | Black |
