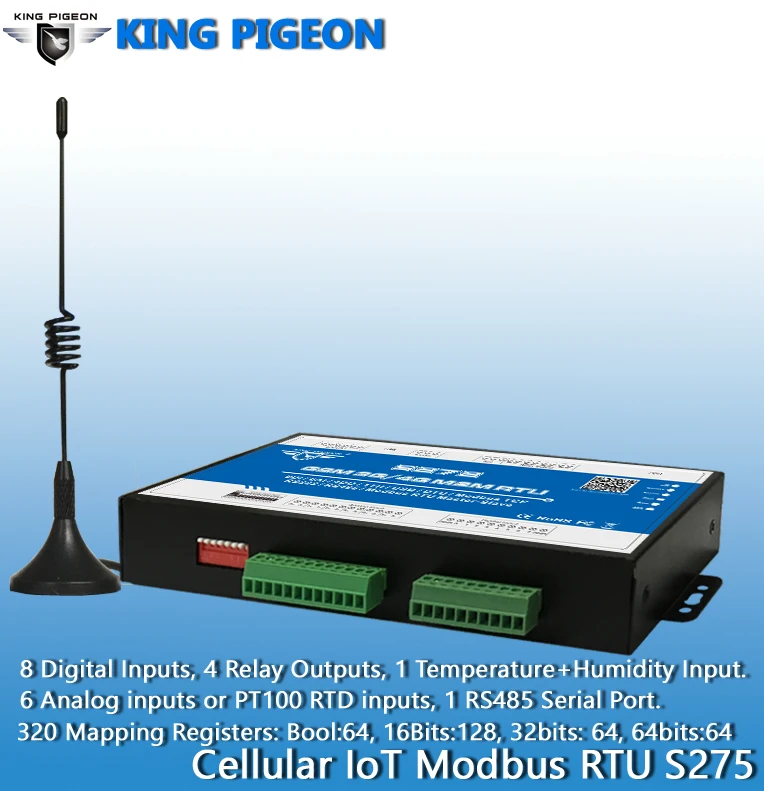

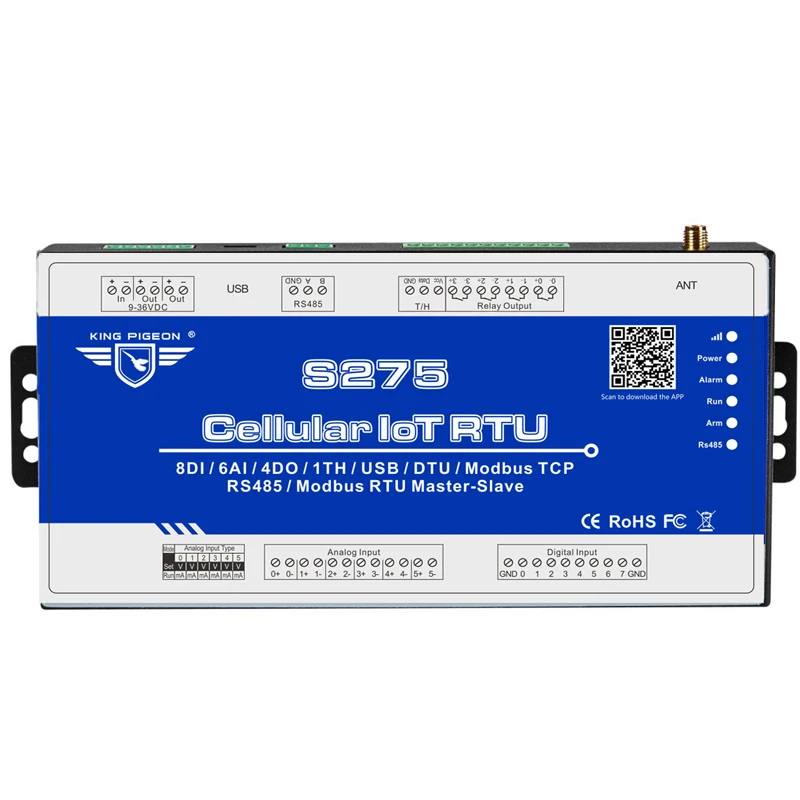

Modbus MQTT GSM GPRS 3G 4G Data Processing with many Protocols S275

Product Overview

Description

GPRS data Logger  Supports SMS, CSD, GPRS, UDP and TCP/IP ,Modbus RTU protocols.







King Pigeon Hi-Tech.Co.,Ltd is a professional GSM Alarm, wifi camera alarm, GSM SMS Controller Alarm, GSM GPRS 3G M2M, GSM GPRS 3G RTU Automation, GSM GPRS 3G Telemetry Data Logger, GSM 3G Senior Telecare, GSM 3G Senior Telehealth OEM ODM Manufacturer since 2005.

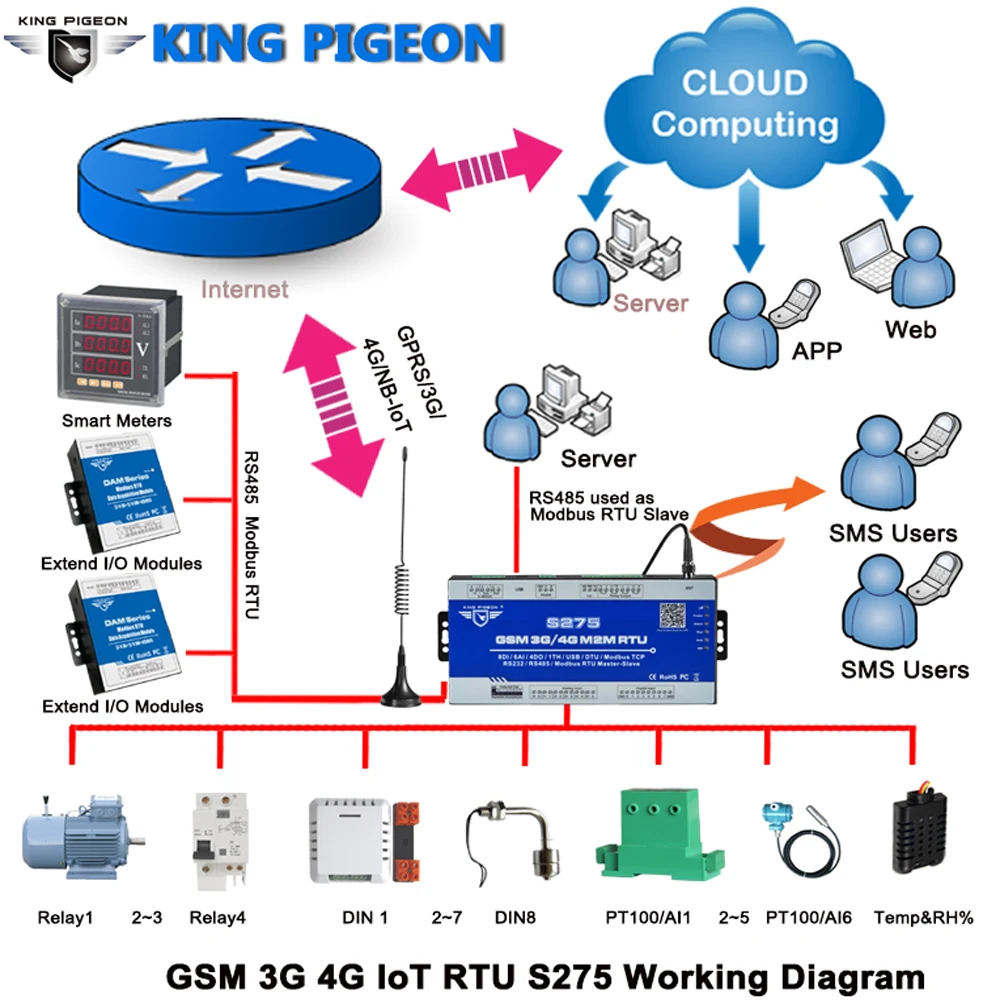

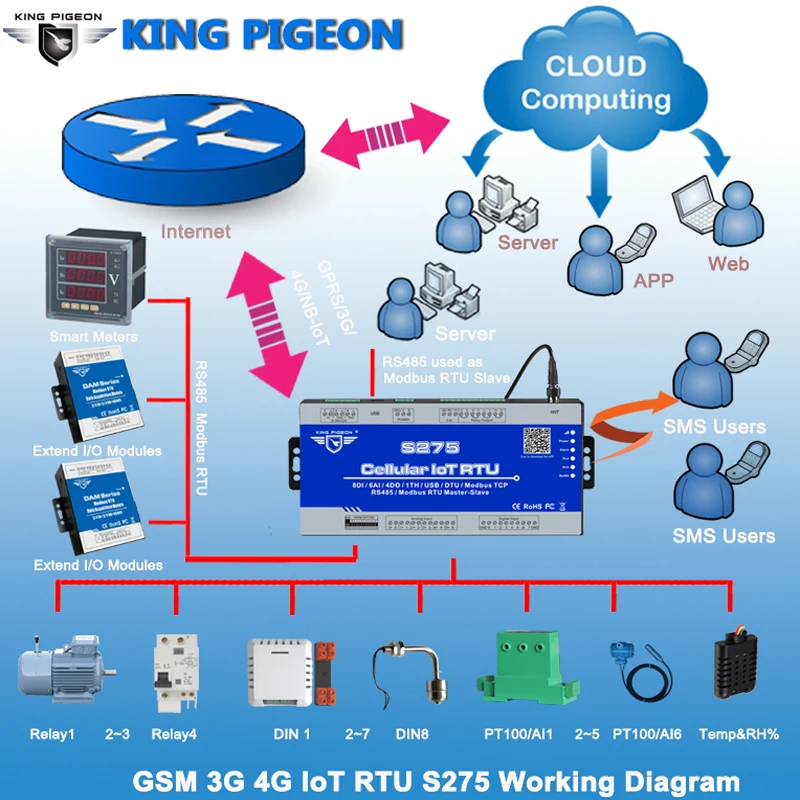

The King Pigeon S Serial GSM GPRS Telemetry Engine equipped Siemens MC55i quad-band GSM Module inside, is a low cost, M2M, data logger, universal GSM GPRS Engine which can transmit and receive analog, digital and pulse counter data, PLC, Varity metering equipments to any device connected to the GSM/GPRS network such as mobile phones, Web Sites, monitoring center, control room.

Features:



 Direct connection to the GSM GPRS Network;

 Transparent Serial Data Tunneling using low cost SMS/GPRS network;

 Remote Configuration by SMS Messages or GPRS;

 Upload data via GPRS or SMS on Schedule or event occurs;

 Supports Dynamic Domain name or fixed IP address;

 Supports SMS, CSD, GPRS, UDP and TCP/IP protocols;

 Supports Modbus RTU protocols;

 2 RS232 Serial Ports, and 1 RS485 Serial Ports;

 6 OPT Coupler (5-24V) Digital Inputs can be programmed to NC/NO/Edge/Level type by switch, OPT and NON OPT can be programmed by switch, when alarm occurs can send Alarm Messages by SMS or GPRS or auto dial the preset phone numbers;

 4 of the 6 digital inputs can be used as Pulse Counters;

 4 OPT Digital Outputs can be programmed as dial to switch on/off with free communication fee, alarm-linkage and Schedule to action, also can be send SMS to switch on/off;

 10 Analogue Inputs. (12 bit resolution, 0-5V or 4-20mA can be programmer by switches);

 User friendly PC Programming Interface, it can remotely program the terminals as well as to upload the data from the terminals by SMS or GPRS, all of the Current Value or status of the terminal can be display directly, and also will display the SMS Command details while you programming it;

 Power supply 8V to 24V;

 Size: 125mm* 80mm* 30mm.Model List Table:Model DI DO AD Temp. RS232 RS485 ProtocolsS240 6 4 10 2 2 2 SMS, CSD, GPRS, UDP,TCP/IP, Modbus RTU,ABB, and more equipment protocols can be added according to your requirements.S230 6 4 6 2 2 2 S220 6 4 4 2 2 2 S210 4 4 2 2 1 1 S200 4 1 1 2 1 1 Construction:
