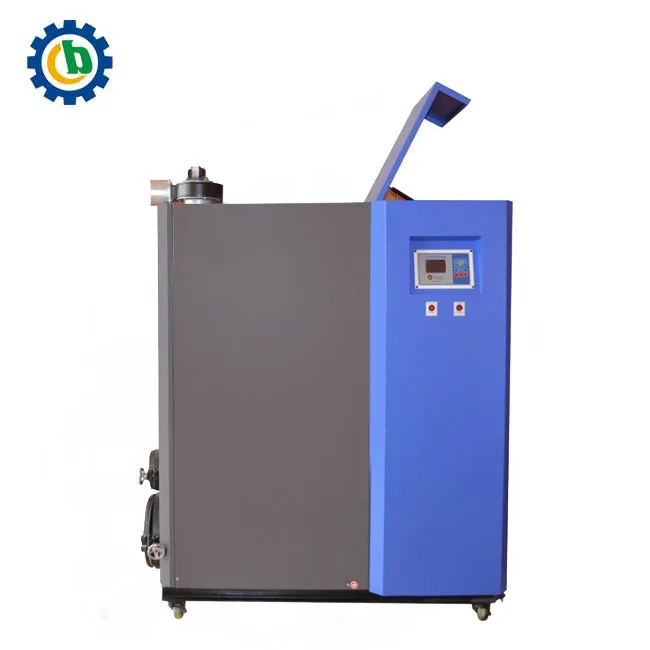

35kw residential wood pellet fired boiler renewable domestic hot water boiler for 120 150m2 heating area

Product Overview

Description



Residential Wood Pellet Fired Boiler Renewable Domestic Hot Water Boiler

Brief Introduction of Pellet Fired Hot Water Boiler:



High efficient and energy-saving:  Our biomass boilers using gasification ways to have complete combustion, boiler heating up rapidly, the thermal efficiency can reach more than 90%;



Environmental Protection:  to promote environmental protection the fuel of this kind boiler are biomass fuels, affordable, worry-free about wide variety of sources; special gasification chamber can make the fuel material into half-full gasification combustion, no need to set up the tall chimney, only connect the boiler air-outlet to outdoor; and configured the special dust removal device, no visible smoke emissions.



Intelligent Control:  we adopt microcomputer one-button operation, automatic feed automatic ignition, with the setting temperature, start and stop cycle, and fault alarm function, simple and easy operation.



Powerful Function: in the case of the furnace's preheating completes , can get hot water within 1-2 minutes; we set a unique heat exchanger structure in the furnace body, so there is no need to outlay external heat exchanger, heating and hot water two functions can work simultaneously without disturbing each other.

Fuel Material Requirements:

wood pellets, straw pellets, peanut shell pellets, cotton stalk pellets, bean stalk pellets with diameter between 6-10mm, palm shell, wood chip and waste wood.

Biomass Pellet Boiler Technical Parameters:



Model		BVFW0.24	BVFW0.35	BVFW0.48	BVFW0.60	BVFW0.70	BVFW1.05	BVFW1.40	BVFW2.80
		85/65-M	85/65-M	85/65-M	85/65-M	85/65-M	85/65-M	85/65-M	85/65-M
Rated Calorific Quantity(Kcal/h)		20×104	30×104	40×104	50×104	60×104	90×104	12×105	24×105
Thermal Efficiency
Rated Outlet Temp.		85 celsius degree(185F)
Operating Pressure		Atmospheric
Power Voltage(v)		380	380	380	380	380	380	380	380
Water Storage(kg)		980	1170	1408	1630	1920	2215	2885	3500
Hoper Quantity(kg)		100	120	150	150	200	300	400	500
Fuel Consumption(kg/h)		32	48.2	61	76	95	140	190	375
Boiler Proper Size(mm)	L	980	1080	1150	1150	1350	1580	1780	3100
	W	818	915	1030	1030	1230	1450	1650	1650
	H	2250	2350	2350	2680	2680	3250	3250	3250
Transportation Weight(kg)		980	1170	1408	1630	1920	2215	2885	3500



Pellet Boiler Cases in Different Fields:



Customer Evaluation:

 We Biagon has been engaged in boiler for many years, and we have professional sales team, transportation team service for our customers, saving cost and time for many customers and getting good comment from customers. Until now, we have exported to many countries, including Singapore,Malaysia,Indonesia, New Zealand, South Africa, Columbia, Ukraine, Czech,Argentina,Brazil,etc.
