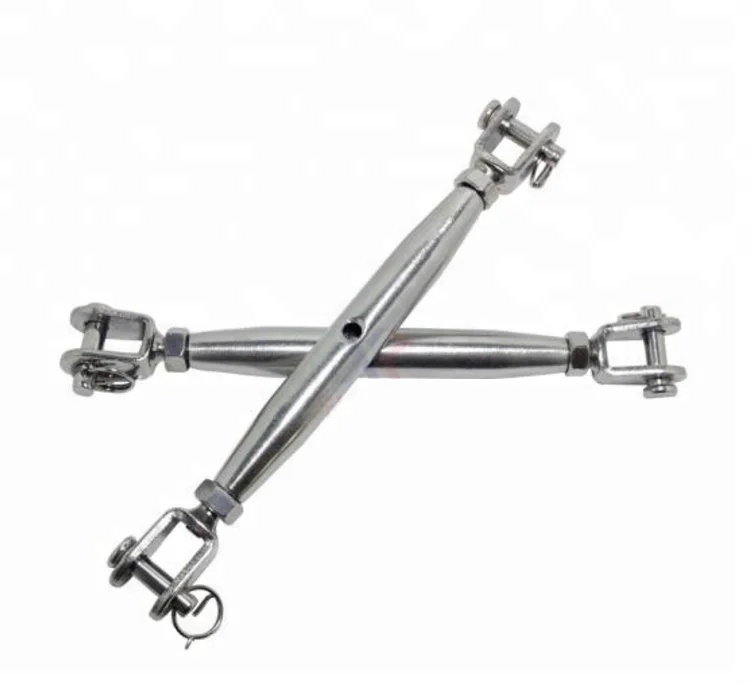

Rigging Screws With Jaw and Jaw
- Category: >>>
- Supplier: Qingdao H-Quality Industries Co. Ltd.
Share on (467576259):
Product Overview
Description
Product Description
We are specializing in producing turnbuckle for 20 years.
1) An ISO 9001:2008 certified manufacture.
2) Exporting 50 containers per months abroad from 1994 to now and have won a high reputation in the market.
3) All enquire will be responded within 12 hours.
4) ISO, products test reports provided on request.

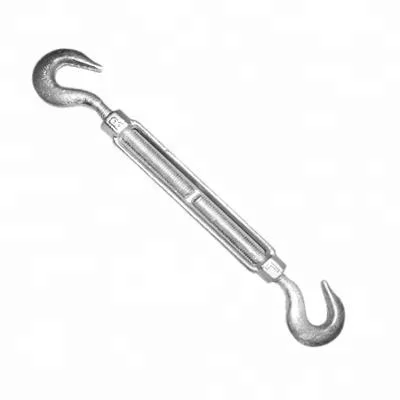

As a professional manufacturer, our products are various, such as DIN 1480 turnbuckle, commercial type turnbuckle with hook and eye, JIS frame type turnbuckle with eye and hook, rigging screws with jaw and jaw, U.S. type turnbuckle etc.
1) Material: Stainless steel (SS316, SS304), 45#, 20# (carbon steel).
2) Surface treatment: Electro galvanized, hot dipping galvanized, self-colored or according to customers’ requirements.
3) Standard: Meets to the performance requirements of Federal Specification FF-T-719b Type 1, FORM 1, except for those provisions required of the contractor.
Proof load is 2.5 times of W.L.L.; MBS is 5 times of W.L.L
| Part No. | Size mm | T.L. ton | Body Length mm | N.W. kg |
| RRST0120 | M12 | 1.00 | 229 | 0.67 |
| RRST0160 | M16 | 1.50 | 229 | 1.20 |
| RRST0200 | M20 | 2.25 | 229 | 2.15 |
| RRST0220 | M22 | 3.25 | 305 | 3.25 |
| RRST0240 | M24 | 4.25 | 356 | 5.20 |
| RRST0270 | M27 | 5.25 | 368 | 6.75 |
| RRST0320 | M32 | 7.25 | 381 | 9.35 |
| RRST0390 | M39 | 10.25 | 406 | 11.20 |
Company Information
Constitute | The company headquarter Three wholly-owned manufacturing factories The joint-venture factories |
Top-notch technical and R&D team | 3 professor-level senior engineers 6 senior engineers 12 engineers |
Field | Metallurgy, Electric Powder, Shipyard, Sea Port, Oil-field, Railway, Machinery, Auto, Energy, Aerospace, etc. |
Equipment | Hydraulic Extruders (3150T/2000T/500T), Friction Presses (1600T/1000T/630T/300T), Hydraulic Press Machines (3000T/1500T/600T), Drawing and Straightening Machines (100T/40T/10T), Intermediate Frequency Induction Furnaces (2T/1T/0.5T), Vacuum Annealing Furnaces (5T/2T/1T), Punching Machines (250T/160T/100T/80T/25T), Automatic Heat Treatment Equipment and Automatic Plastic Coating Line |
Test | Tensile test less than 300tons, Chemical analysis of such metal materials as steel, aluminum, copper, etc. Metallurgical microstructure laboratory and ultrasonic defects detecting center. |
Certificate | ISO 9001-2008, BV, CE |
