ZB B Digital whiteness tester paper laboratory equipment

Product Overview

Description

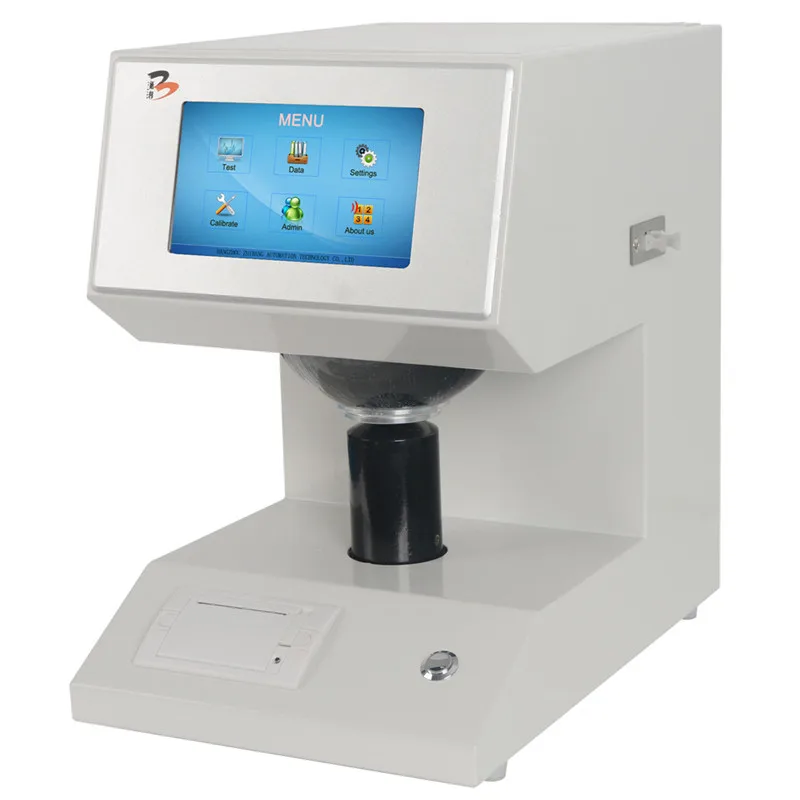

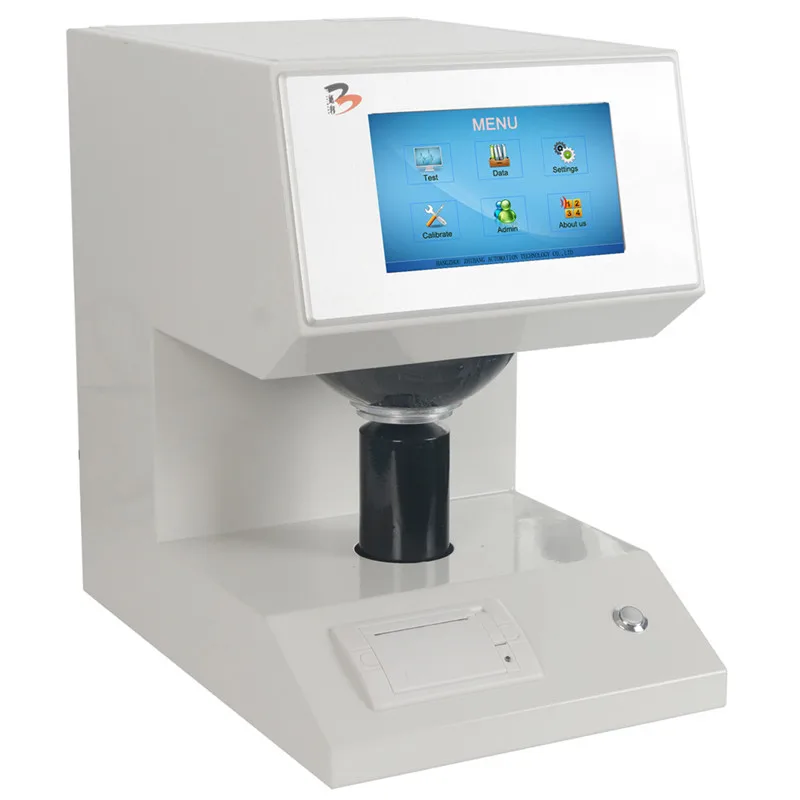

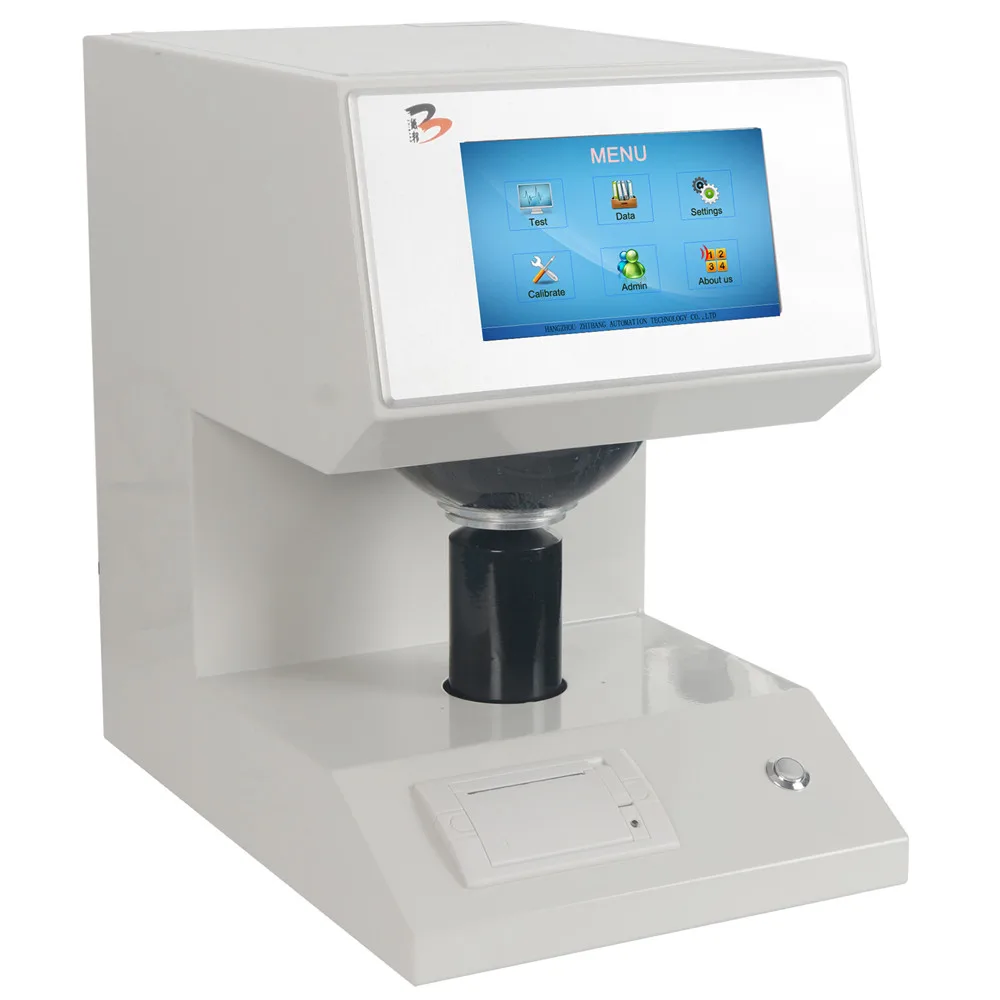

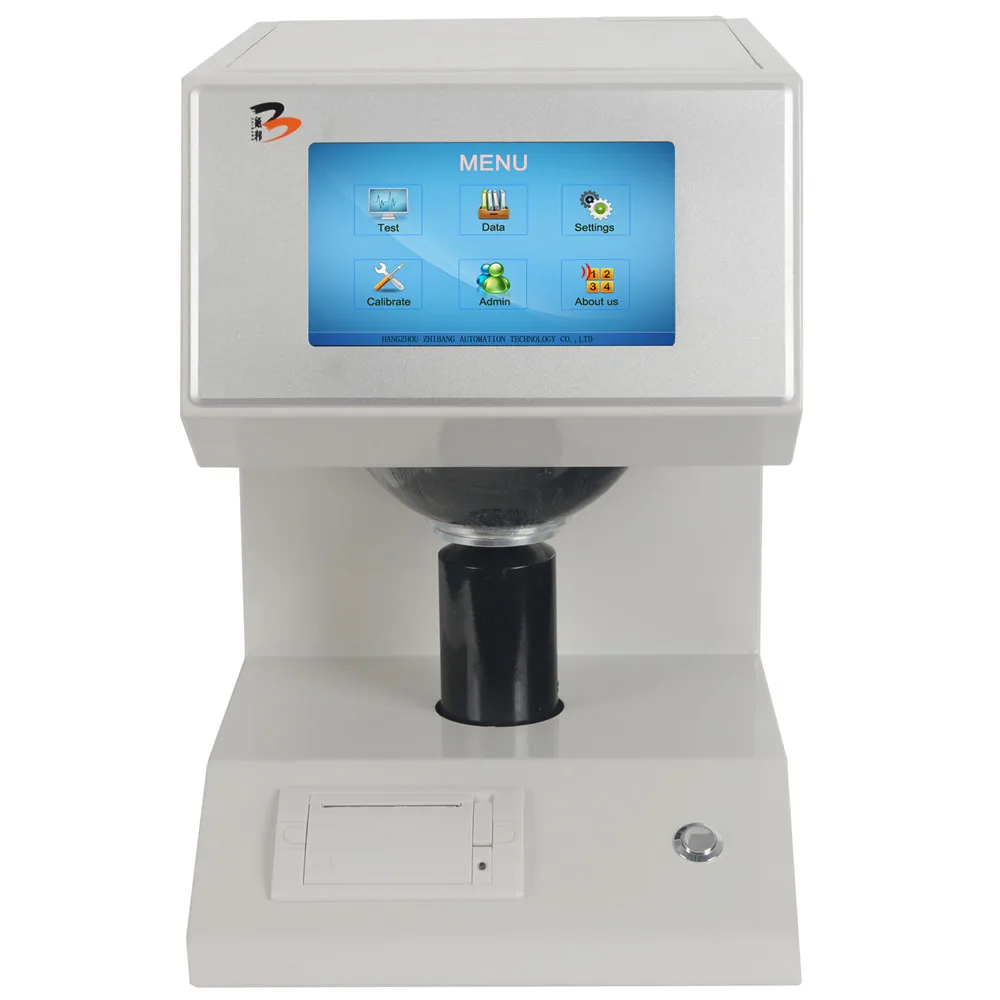

ZB-B Whiteness tester

Introduction

The instrument mainly used to measure the brightness and whiteness,applied in paper, cardboard,textile, painting ,chemical building materials, plastic , cement ,food, salt, ceramics  cosmetic etc, Like the following:

1.Measure ISO(R457) and fluorescent material’s fluorescent whiteness

2.Measure Light stimulus value Y10

3. Measure opacity op

4. Measure transparency T

5. Measure light scattering coefficient S and optical absorption coefficient A

6. Measure ink absorption value

Standards

ISO 2469  ISO 2470  ISO 2471  ISO 9416   GB/T 7974  GB/T 1543  GB/T 10339  GB/T 10339  GB/T 2913  GB/T 13025.2  GB/T 5950  GB/T 8424.2  GB/T 9338  GB/T 13173.14  GB/T 13835.7  GB/T 22427.6    FZ-T50013

Main Features

1.Has excellent appearance and compact structure ,and advanced circuit design can ensure accurate and stable measurement data.

2.Simulate D65 illuminator to illuminate.

3.Adopted d/o illuminating--geometrical viewing conditions.Diameter of the globe of diffusion is 150mm and diameter of the testing hole is 30mm.Light absorber is provide to eliminate the effect of mirror reflection.

4.Adopted large color touch screen.English display and prompt steps can show the results of measurement and statistics. Good human-machine interface makes the instrument easy to operate.

5.Added the printer and used the imported Thermal Printer , no need to use ink and colored tape, no noise and fast speed.

6.Equipped with RS232 interface can communicate with the computer software

7.Has power-off protection, Correct data would not lose

Main Technical Parameters

Power supply	220V±10%, 50Hz
Zero drift	≤0.1%
Indicating drift	≤0.1%
Indicating error	≤0.5%
Repetitive error	≤0.1%
Specular reflectance error	≤0.1%
Sample size	diameter ≥30mm       thickness≤ 40mm
Dimension	360*264*400mm
Net weight	20kg
