Jiangmen Tings 5 gallon filling machine plant bottle water filling machine for 20 liter
- Category: >>>
- Supplier: Jiangmen Tings Drinking Water Equipment Co. Ltd.
Share on (468162519):
Product Overview
Description
Product Description

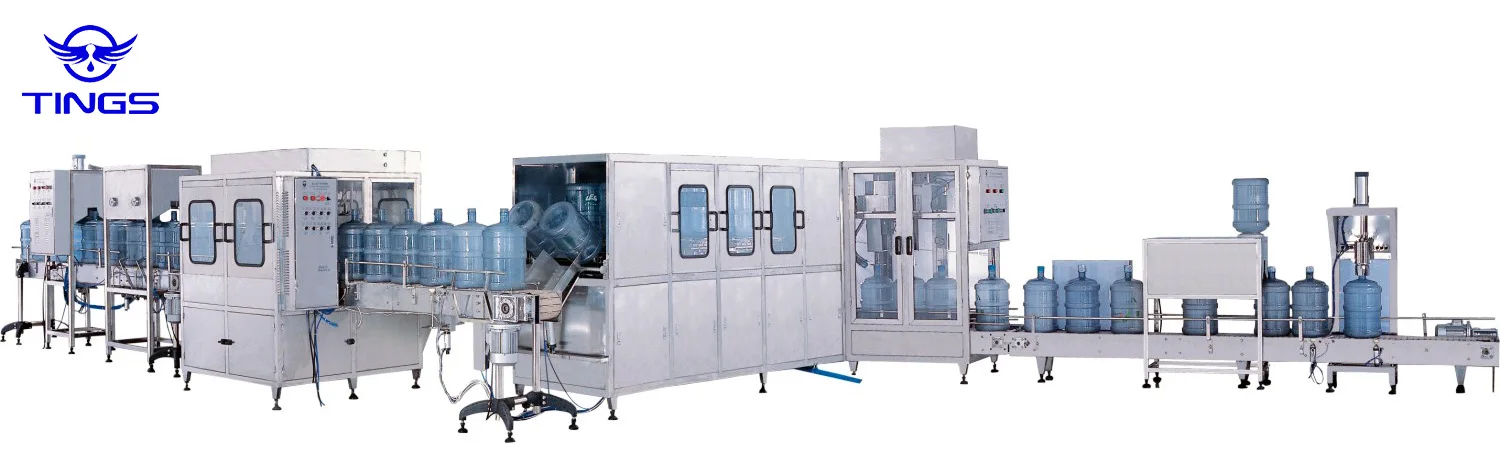

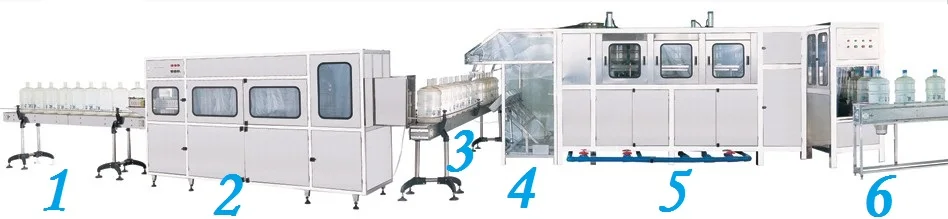

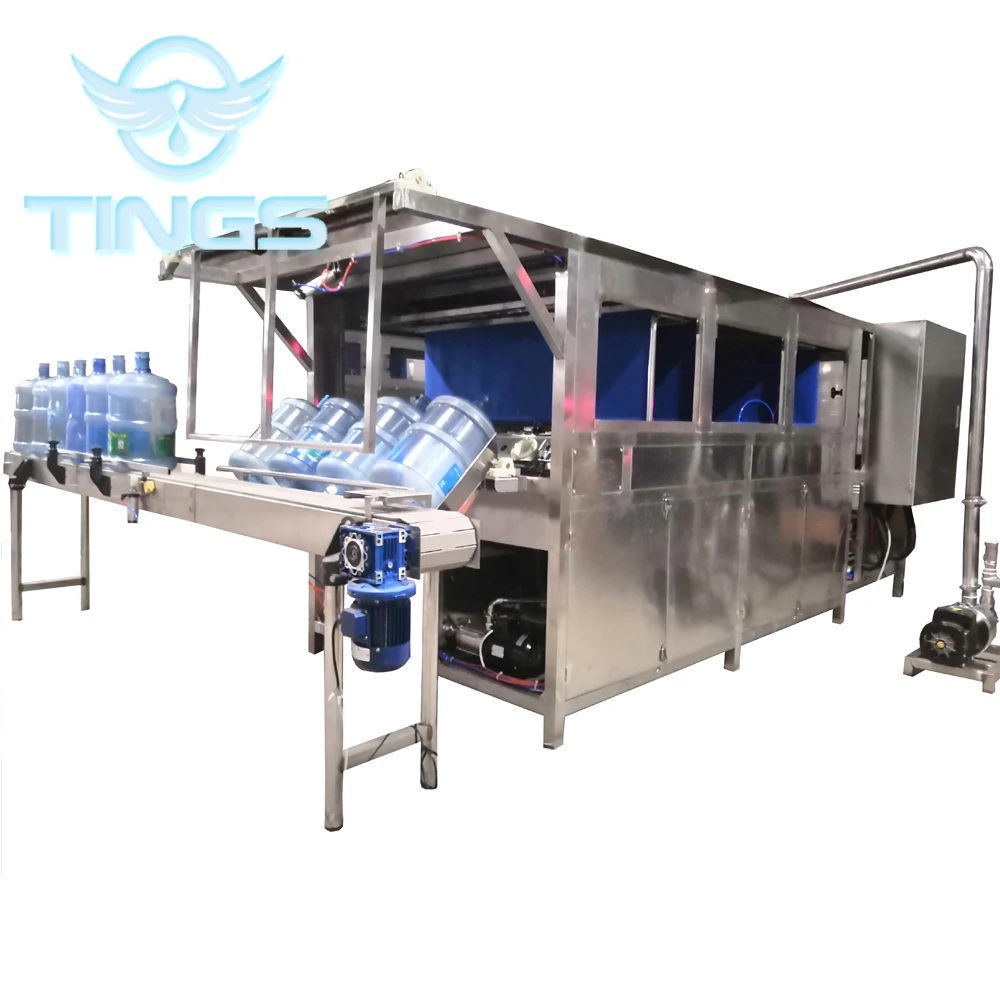

Tings 5 Gallon Bottled Water Filling Line:
This Series Barrel Filling Machine is specially designed to produce 3 or 5 gallon barrel drinking water, production line, which is ideal for production for mineral water, distilled water and pure water. The use of top quality stainless steel guarantees it high-performance resistance of corrosion and easiness of cleaning. With major electrical components coming from SIEMENS and OMRON, and original components for gas path imported from AIRTAC, combined with interior and exterior spray nozzles for cleaning barrels provided by know-how enterprise of American spray companies. This machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an entegrated (machine, electricity and gas) full automatic barrel filling line.
Application: This machine is a washing-filling-capping integrated machine, which is mainly used for 5 Gallon bottled water filling process. It is designed for shortening the contact time between drink material and outside, so as to improve the sanitation condition of the water product and increase the economy benefit.
Features: It is designed with automatic air conveying structure which makes the conveying of the bottles more convenient, faster and easier.
Features: It is designed with automatic air conveying structure which makes the conveying of the bottles more convenient, faster and easier.
Model No. | XG-100/J(300buckets/H) |
Machine Type | Automatic |
Bottle Type | 5 Gallon Bottle |
Capacity | 300BPH |
Filling Station | 2 |
Capping Station | 1 |
Certificates | CE / SGS / ISO 9001 |
Advantage:
1. Safe contact between water and machine:
We use national standard stainless steel 304/316, Nickel content ≥8%.
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
2. High effeciency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time
Machine Details

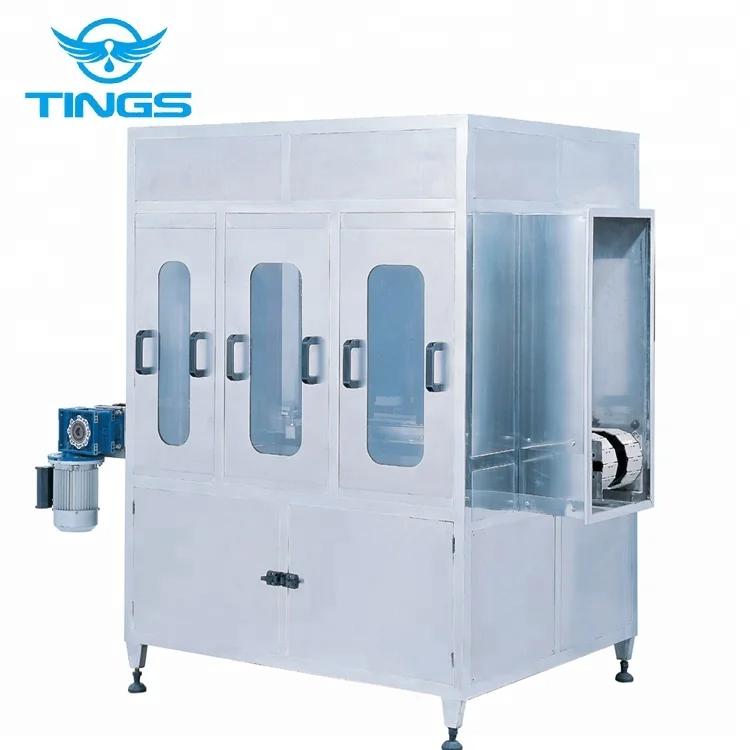

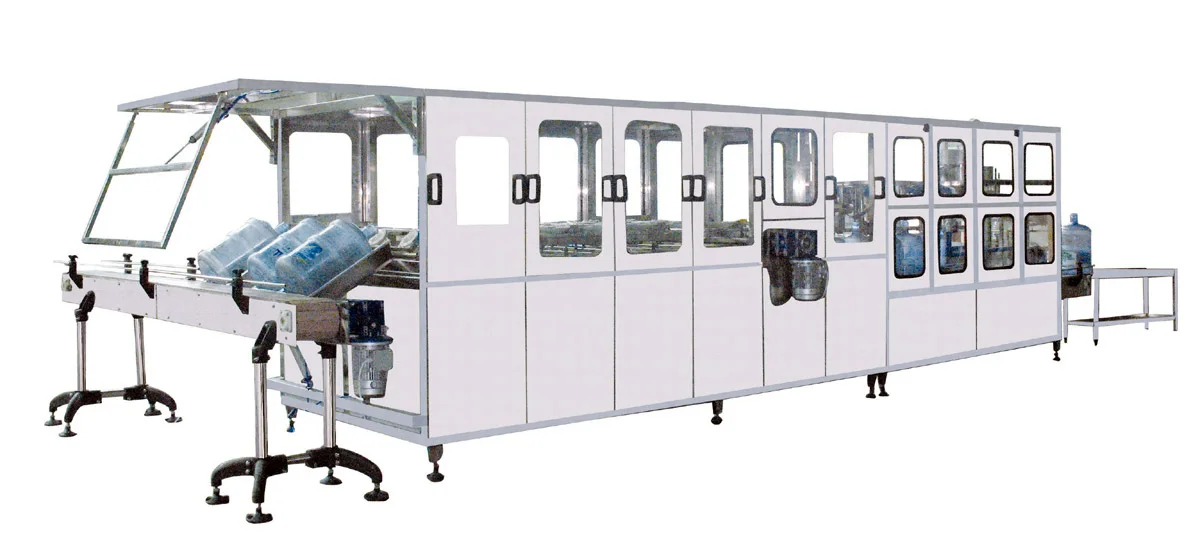

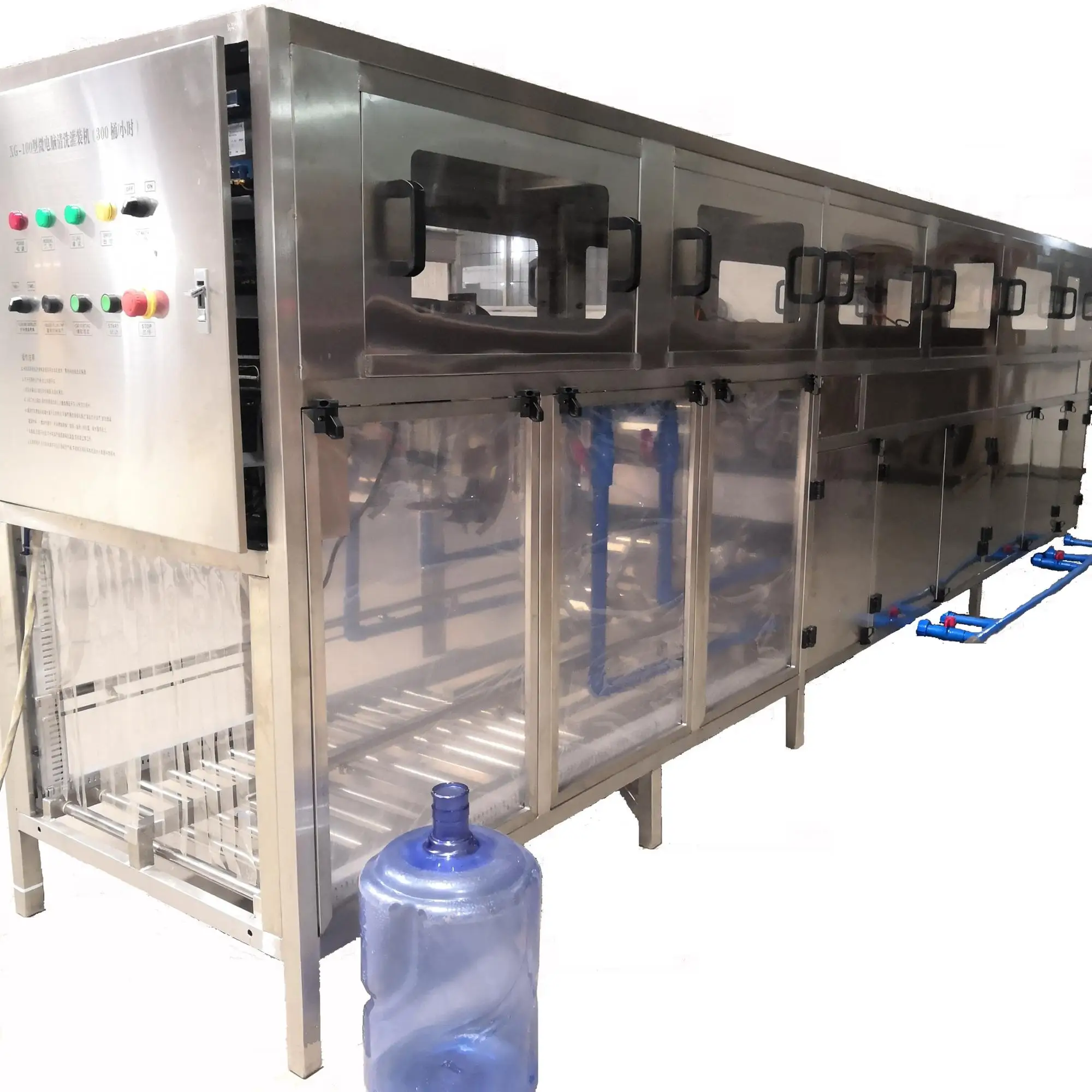

Automatic filling machine
Full Automatic 5 Gallon water filling machine, save time, save labor cost, and save power.
More models with different capacities:
No. | Model No. | Capacity | Washing Station | Filling Station | capping Station |
1 | XG-100 | 100BPH | 3X1 | 1 | 1 |
2 | XG-200 | 200BPH | 4X2 | 2 | 1 |
3 | XG-250 | 250BPH | 4X2 | 2 | 1 |
4 | XG-300 | 300BPH | 6X2 | 2 | 1 |
5 | XG-450 | 450BPH | 6X3 | 3 | 1 |
6 | XG-600 | 600BPH | 8X4 | 4 | 1 |
7 | XG-900 | 900BPH | 10X6 | 6 | 1 |
8 | XG-1200 | 1200BPH | 13X6 | 6 | 1 |

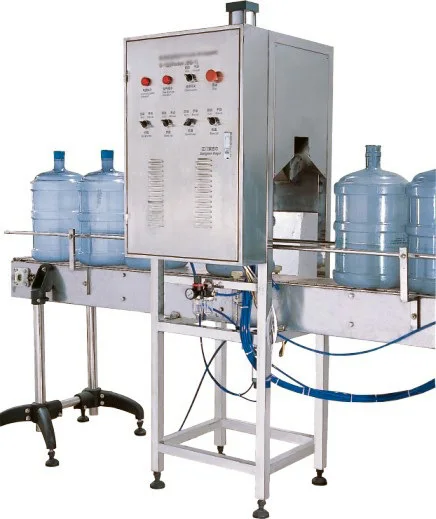

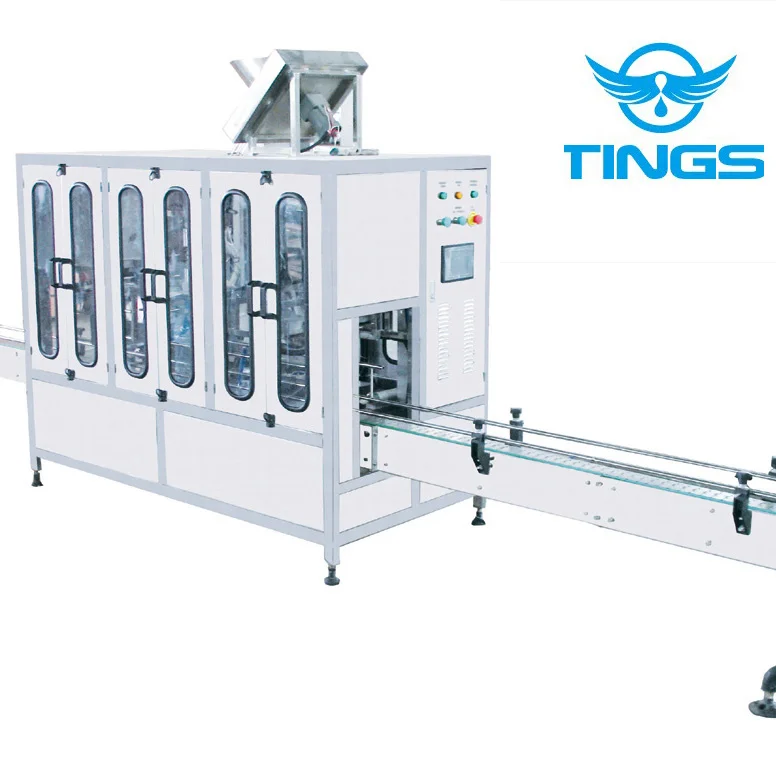

Automatic Decapper
1. Adopting PLC and pneumatic cylinder, it can work in line. cap-removing head does not damage the cap and bottle mouth at all. So cap can be re-used. Capacity is adjustable. It is compatible with a wide range of bottle height and cap diameter.
2. With the barrel controlled by photoelectrical signal. Under the condition that no barrel or the outlet of cap-removing machine is jammed, the barrel will be transferred to the lower part of the cap-removing head by transferring belt for automatic positioning.
3. The cap-removing head consists of four pieces of arch covers. The head is open and pressed on the opening of the barrel. With
four pieces of arch covers tightened and locking the edge of the bucket opening in a fast way. After that, the barrel is raised
and the cap is removed. Then it is released automatically, with cap blown to the collective sink by air.
4.The whole process is controlled by computer.
2. With the barrel controlled by photoelectrical signal. Under the condition that no barrel or the outlet of cap-removing machine is jammed, the barrel will be transferred to the lower part of the cap-removing head by transferring belt for automatic positioning.
3. The cap-removing head consists of four pieces of arch covers. The head is open and pressed on the opening of the barrel. With
four pieces of arch covers tightened and locking the edge of the bucket opening in a fast way. After that, the barrel is raised
and the cap is removed. Then it is released automatically, with cap blown to the collective sink by air.
4.The whole process is controlled by computer.

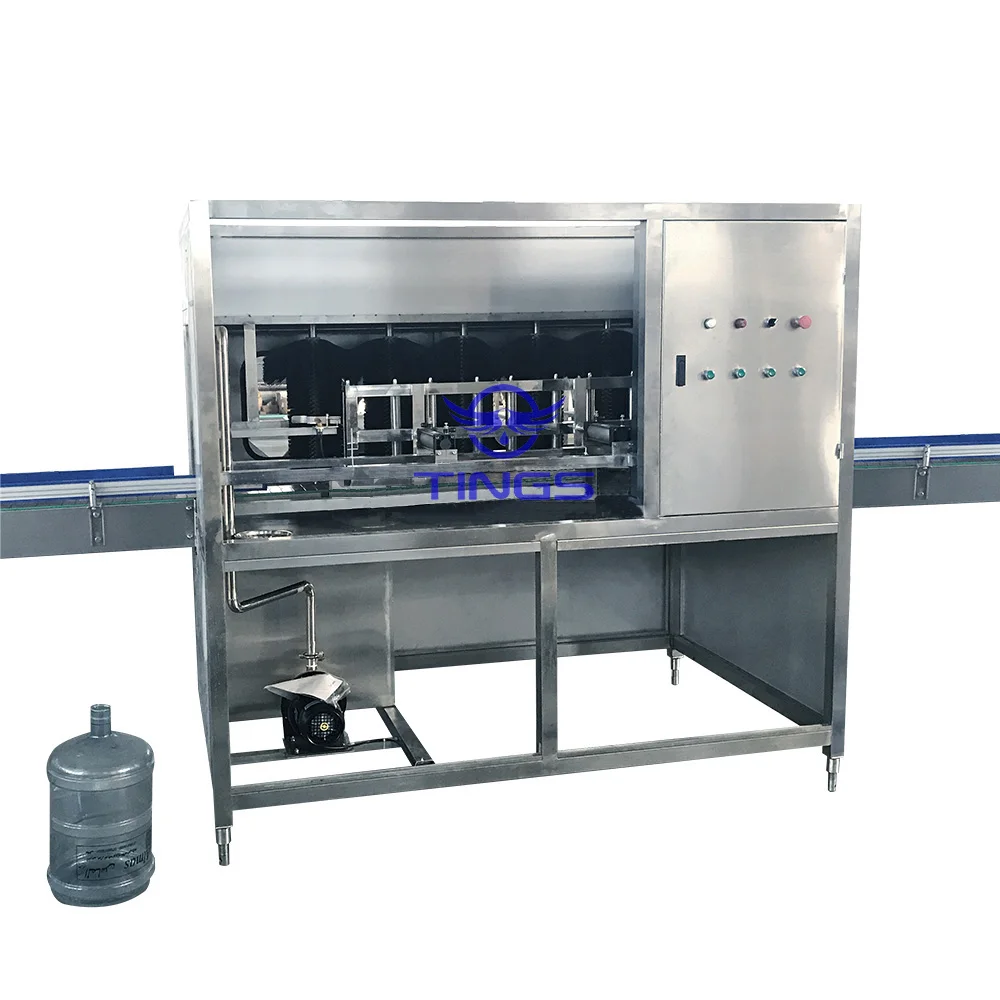

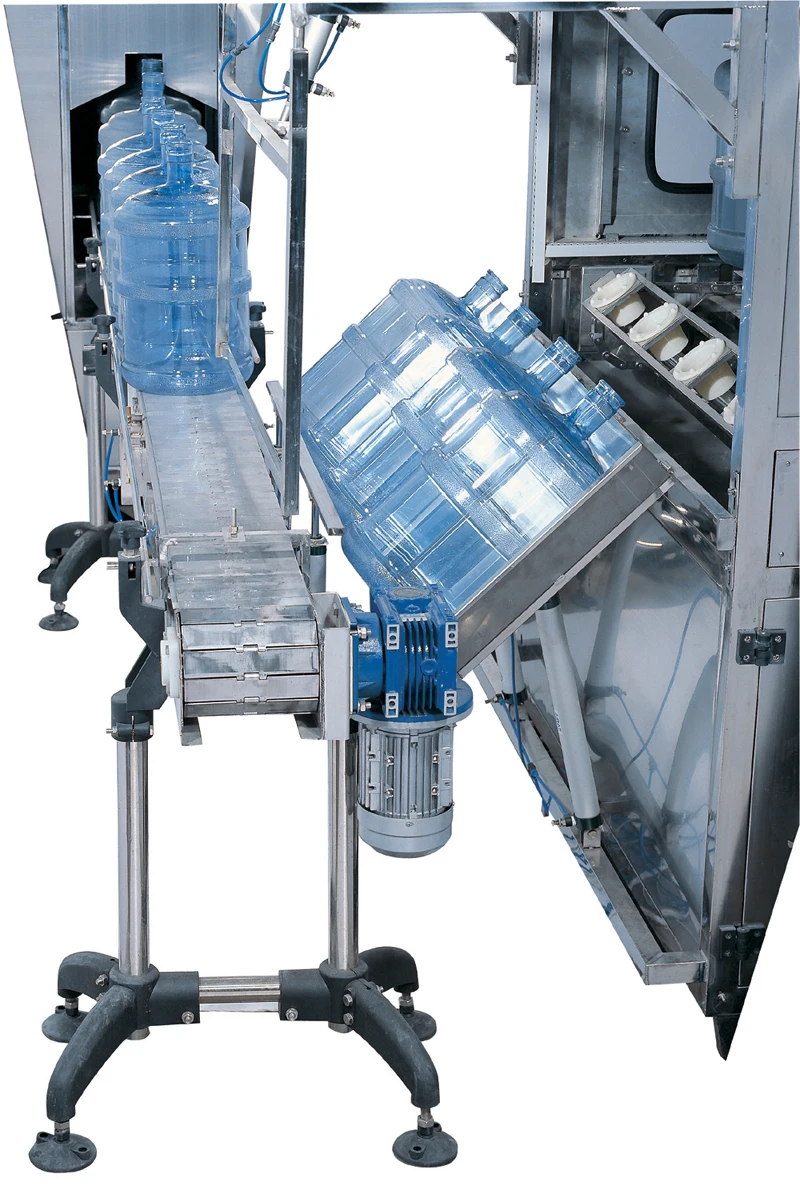

Bottle Loading Machine

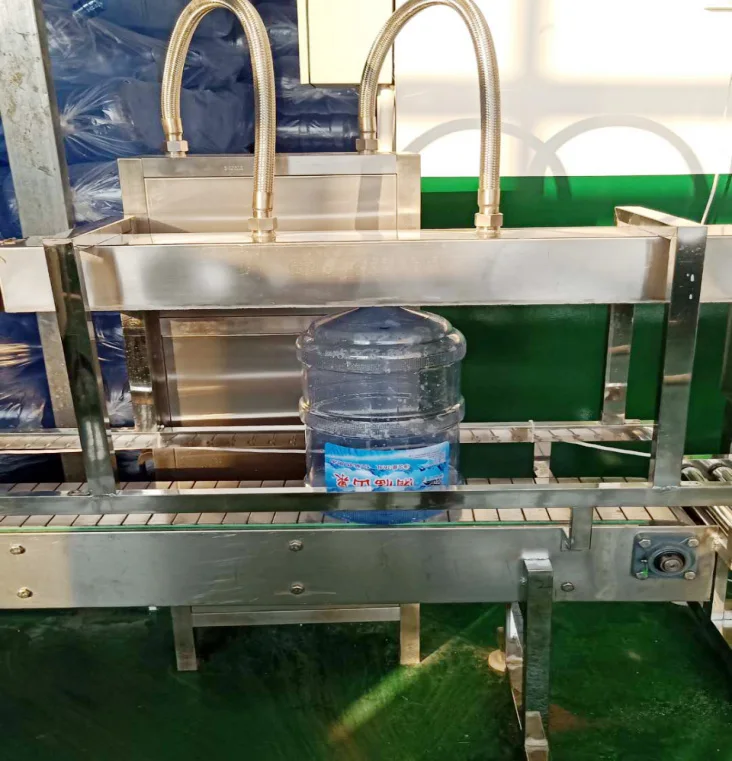

This machine is used to wash the outside parts of the bottle.
Bottle Loading Machine
1. It is controlled by PLC. The sensors feedback the signals to PLC. Under the condition of wrong-positioned bottles, it will stop
automatically. Then it will run again when the bottles in the right positioning.
2. the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles
go in to the filling machine automatically.
3. The bottle feeding process will not damage the bottle edge at all.
automatically. Then it will run again when the bottles in the right positioning.
2. the chain conveyor transfer the bottles go to the feeder,the sensors feedback to the PLC ,then air cylinder acts, the bottles
go in to the filling machine automatically.
3. The bottle feeding process will not damage the bottle edge at all.

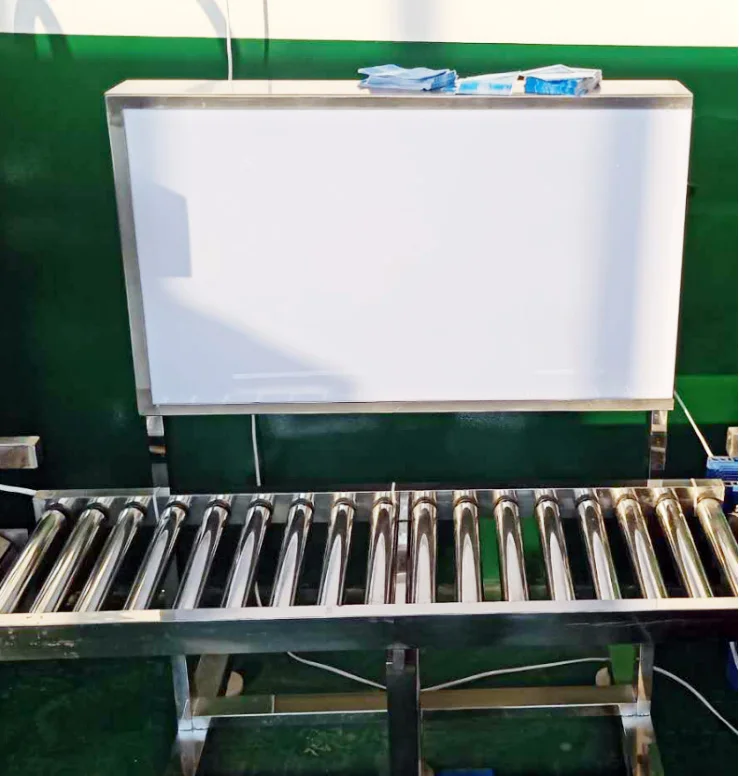

Lamp Inspecting Machine
This machine is used to to inspect if there's any inpurity in the filled bottle.
Steam Shinking and Labeling Machine
Labeling by Steam heating and shinking
One-station service
We are factory. We can provide all necessary related equipments for bottled water filling line: Water treatment system, bottle blow molding machine, filling and capping machine, labeling machine, code injecting machine and shink warping machine for packing, etc.
Solution Support
We will provide you with the most suitable solution, accroding to your requirements.
Bottle Design
We can design the bottle according to size, style or sample you provide.
Layout of the equipments
Drawing for the equipment layout can be provided accroding to your plant layout.
Related Products
Packing&Shipping
Packed in wooden cases
Trade Fair
customers visiting
About Our Company
FAQ
HOW TO FIND TINGS?
● Search Jiangmen Tings Drinking Water Equipment Co., Ltd. on Alibaba, remember to choose manufacturer, not trader
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
CAN I VISIT YOUR FACTORY?
● Welcome to visit our factory anytime.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
TELL ME HOW YOUR FACTORY CONTROL THE QUALITY?
● We use high accuracy processing equipment for production, and we are experienced in making our machine for over 20 years.
● Each component before assembly needs will be strictly test by our professional QC.
● Each component before assembly needs will be strictly test by our professional QC.
HOW ABOUT YOUR AFTER-SALES SERVICE?
● We will debug all machines after production. Then we will send our customer pictures or videos of the testing for all machines.
● we will pack all machines by standard export package for long-distance shipment.
● we will pack all machines by standard export package for long-distance shipment.
● According to the customer's request, we can arrange to send our engineers to customers' factory to do the installation and training.
● Our after-sales team are formed by our engineers, sales managers and after-sales service manage, who will follow our customers' project.
