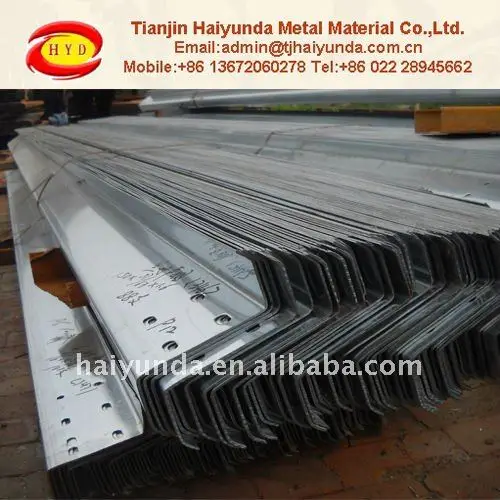

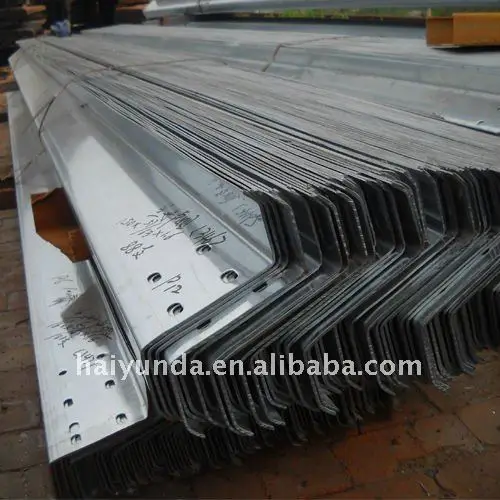

Galvanized Steel Z Purlin

Commodity

 Galvanized C/Z/U Channel

Thickness

0.3mm-6mm

Length

The length can be decided by clients

Specification

b=35mm-400mm

a=15mm-25mm

h=80mm-350mm

t=0.3mm-6mm

Material

Steel/Iron

Surface treatment

Punch hole

Power coated

Galvanized

Quality authentication

ISO 9001:2000

Material

Q195-Q345/SPCC

Usage

Support roof

Warehouse/ factorys wall/ makeshift house

Shape

C section shape ,U section shape, Z section shape

Productivity

100MT/Day

Min Order Quantity

20MT

Delivery Time

15-20 days after receipt of down payment

Packing

Bulk pack

According to the requirement

Notice

Special order can be accept and we will offer high quality but low price's products

 Z  Purlin  Galvanized Z Purline  Hot dip galvanized Z beam

Strandard : ASTM A 312 A269 A511A , JIS , SHC, DIN. Materials:Q195/Q235A/Q235B/Q345B

Size(mm)

Thickness

  (mm)

Size(mm)

Thickness

  (mm)

Size(mm)

Thickness

  (mm)

26*30*15

0.5 -2.5

120*50(60)*20

0.5-6

220*75*20

2-4

30*15(20)*15

0.5-4

300*80(100)*20

0.5-4

250*75*20

2-6

45*30*15

0.5-4.75

140*50(60)*20

0.5-8

90*40(50)*20

0.5-6

160*60(70)*20

0.5-8

350*80(100)*20

0.5-4

220*70(80)*20

0.5-4

60*40(50)*15

0.5-4

140*50*20

0.5-4

100*50(60)*20

0.5-6

180*60(70)*20

0.5-8

160*60*20

0.5-4

250*70(80)*20

0.5-4

80*40(50)*20

0.5-4

180*70*20

0.5-4

200*70*20

0.5-4

200*60(70)*20

0.5-4

122x40x10

1-4

125*75*15

1-6
