Product Overview

Description

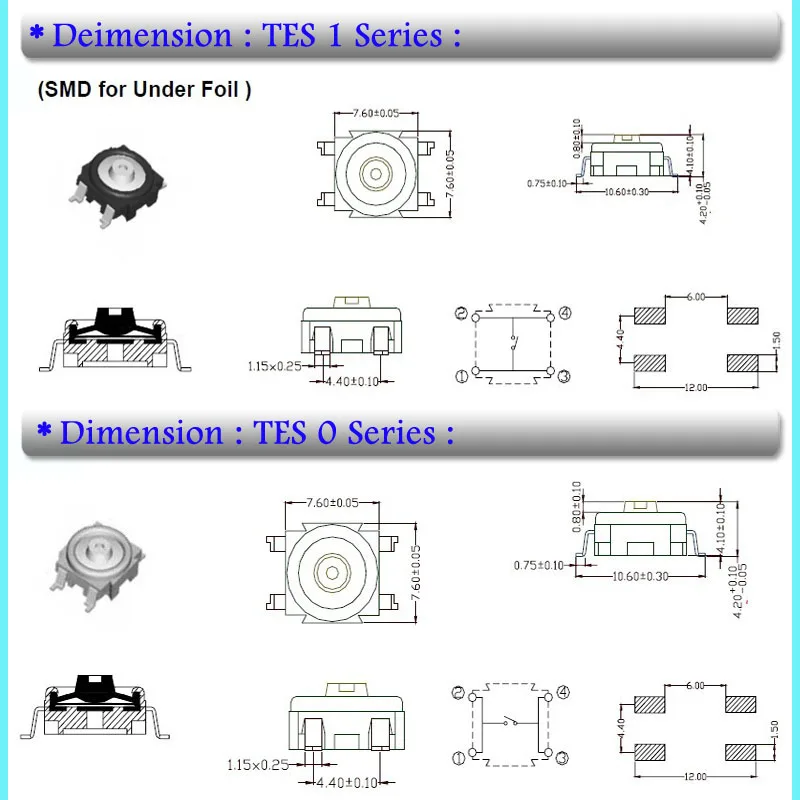

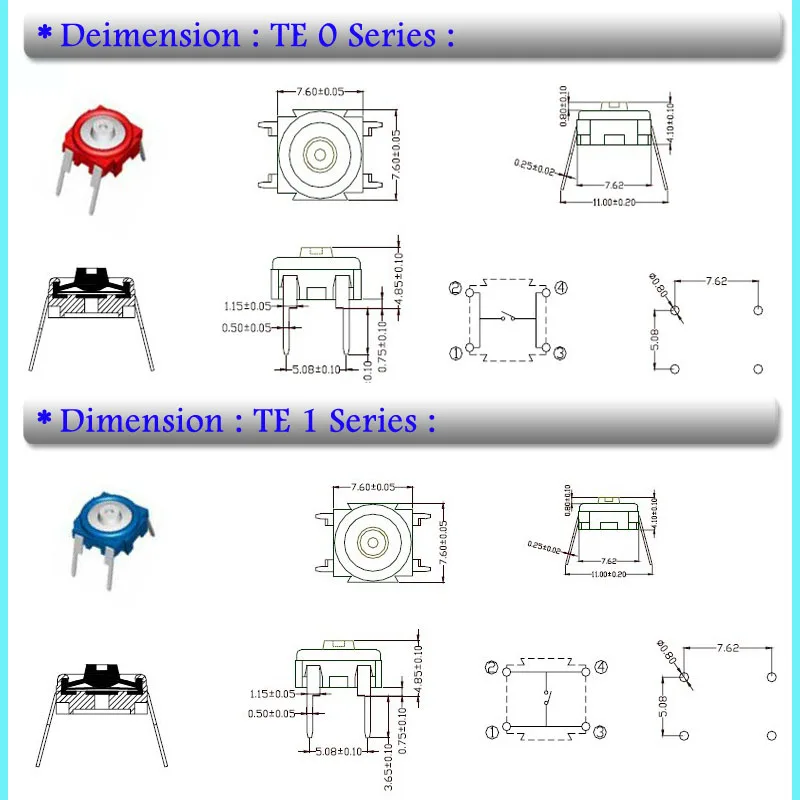

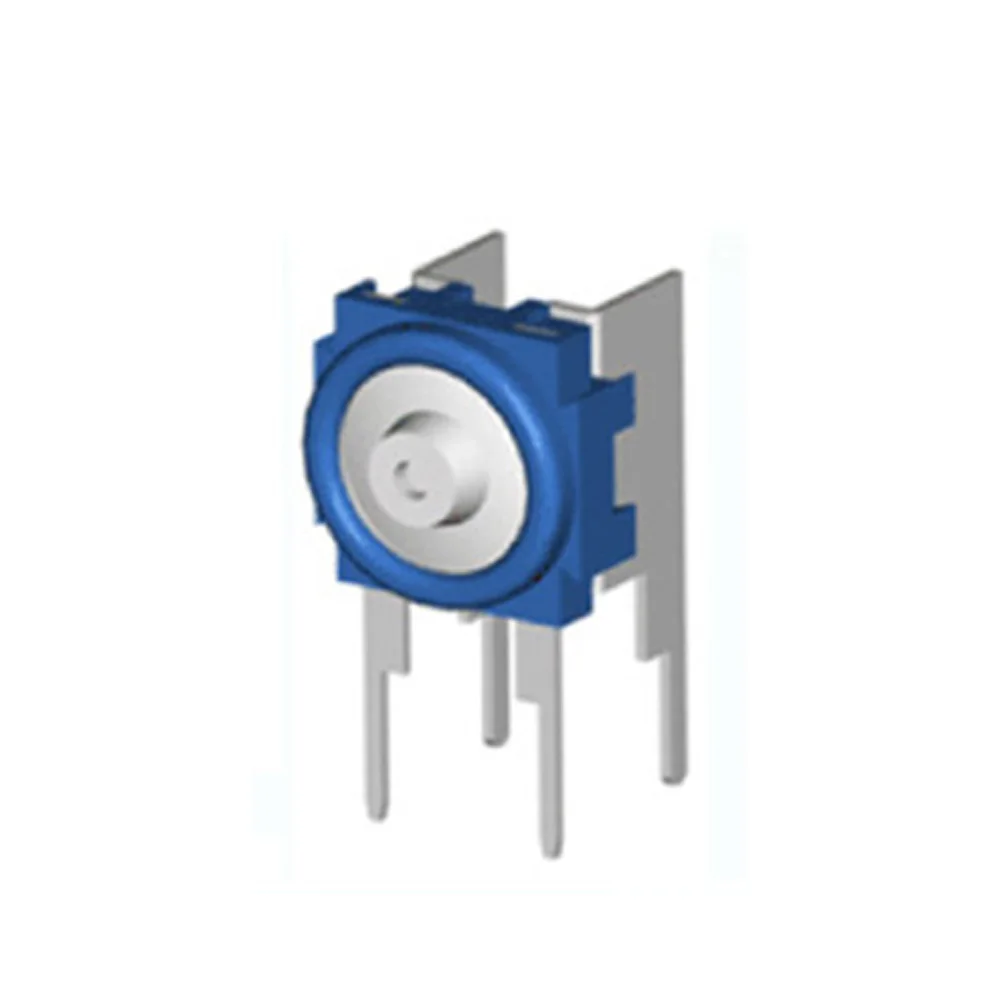

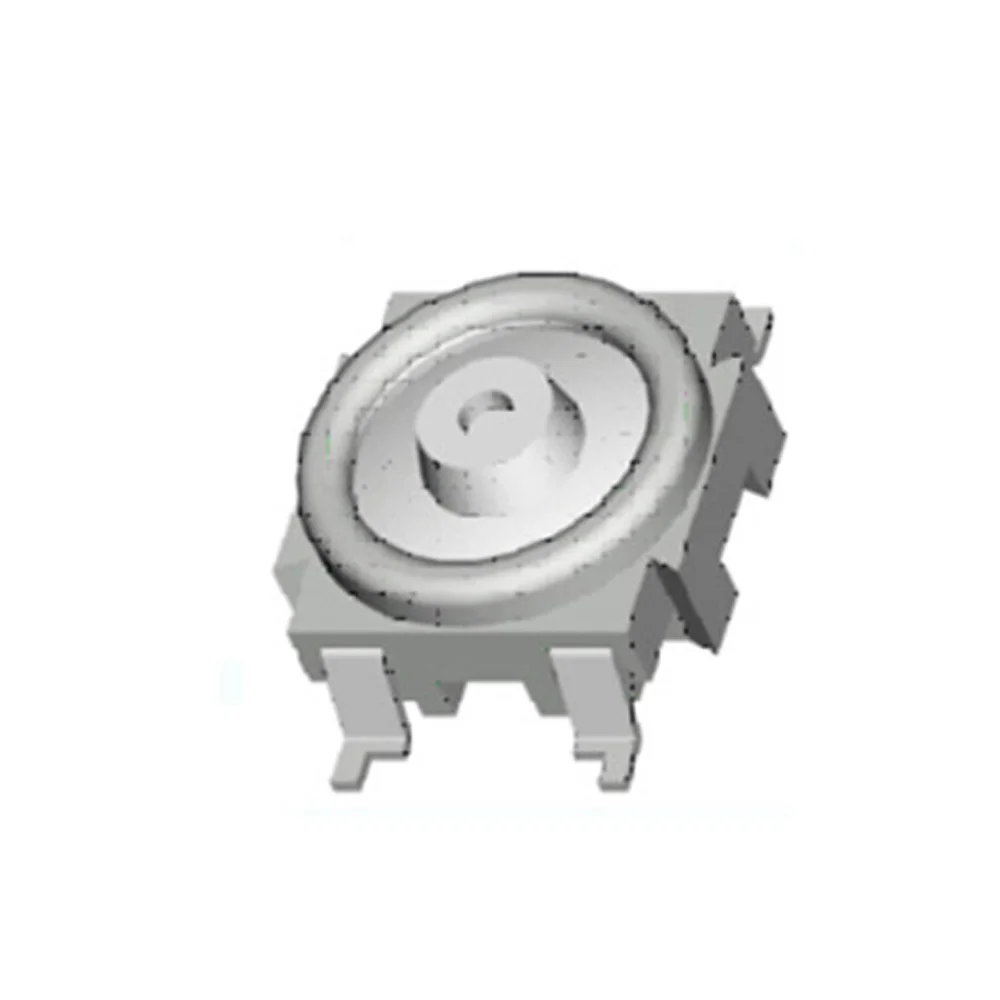

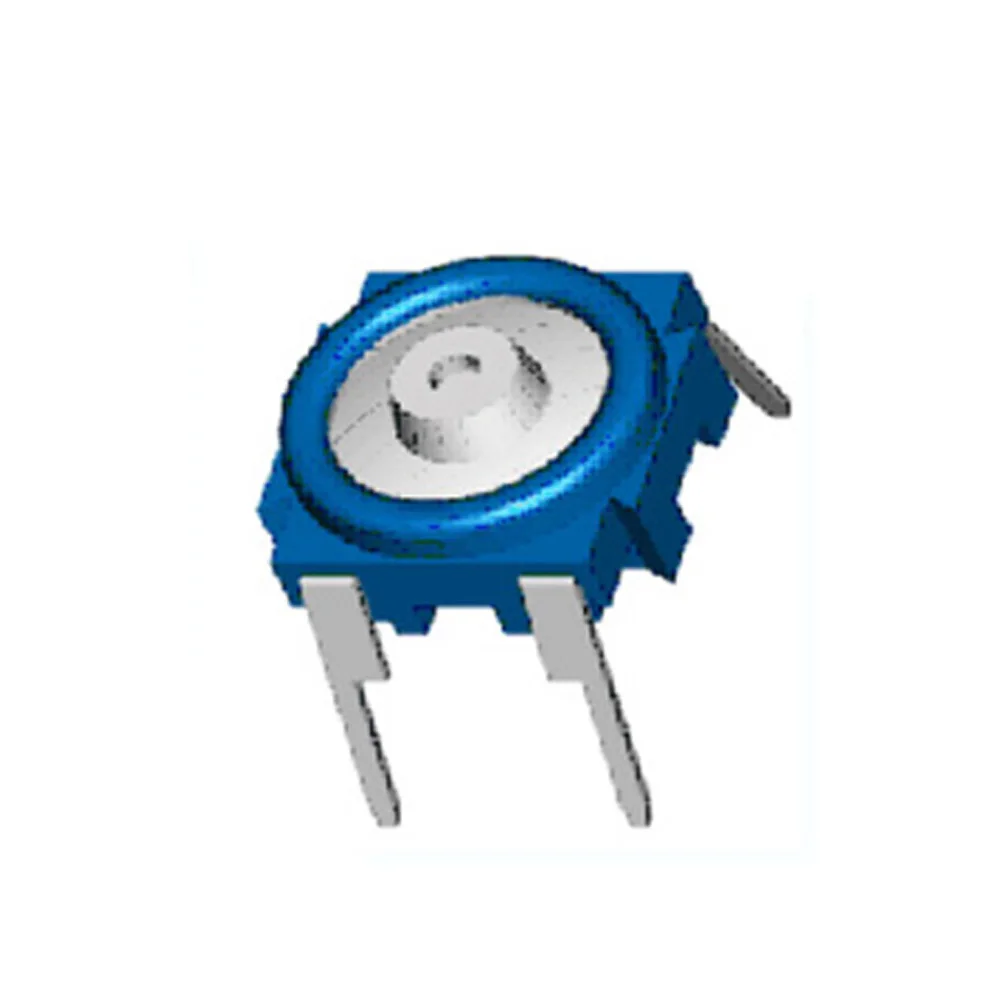

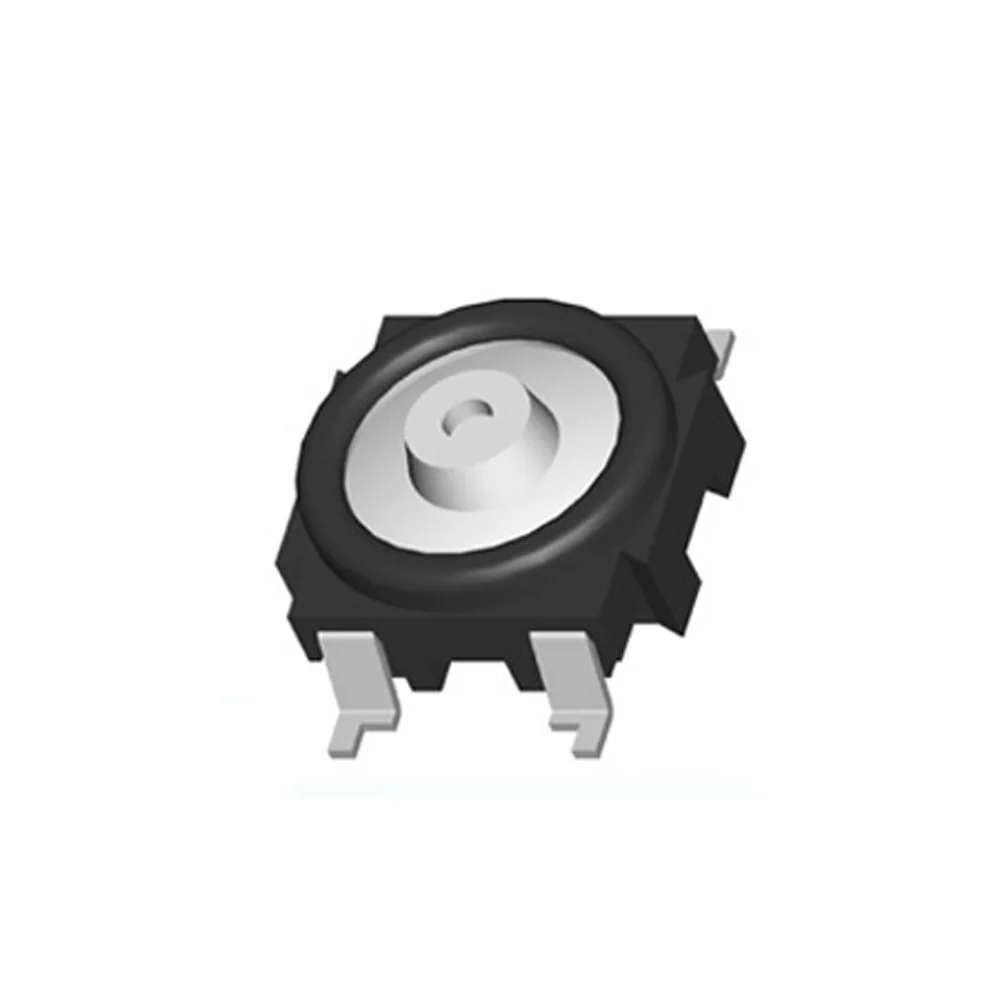

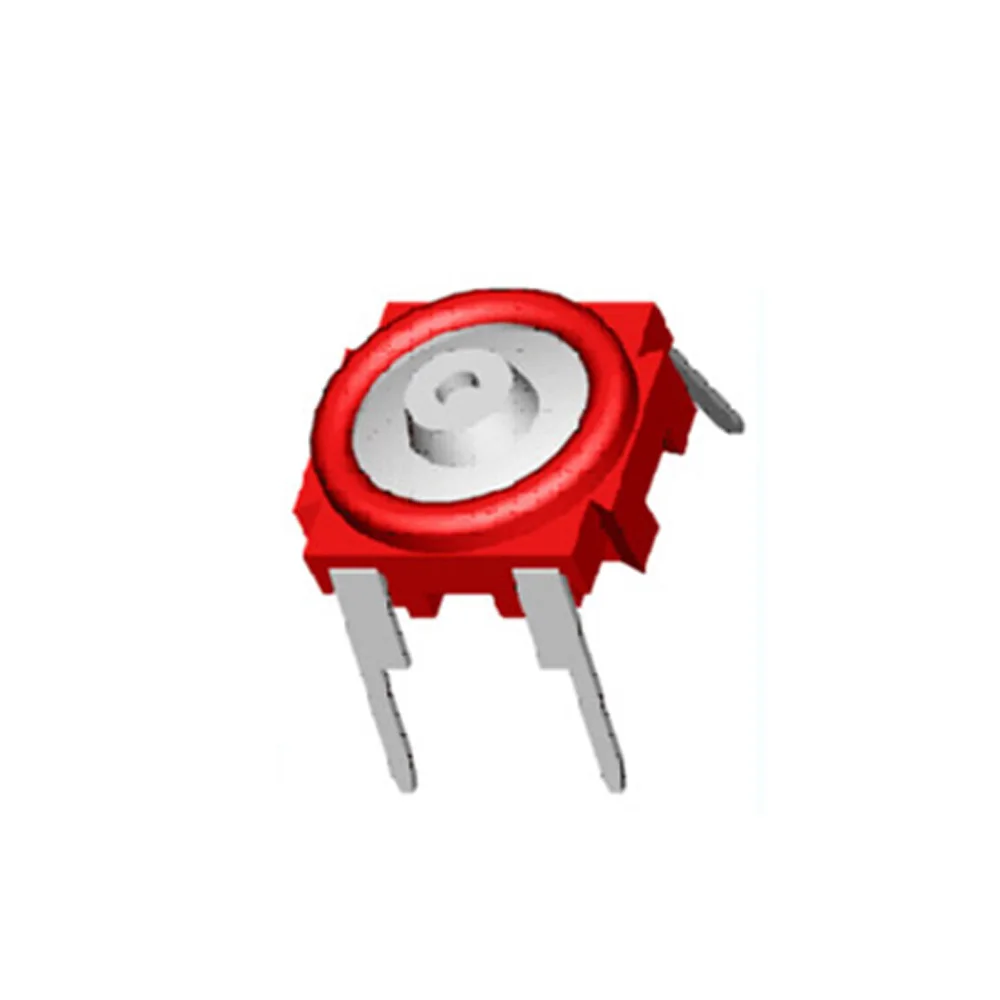

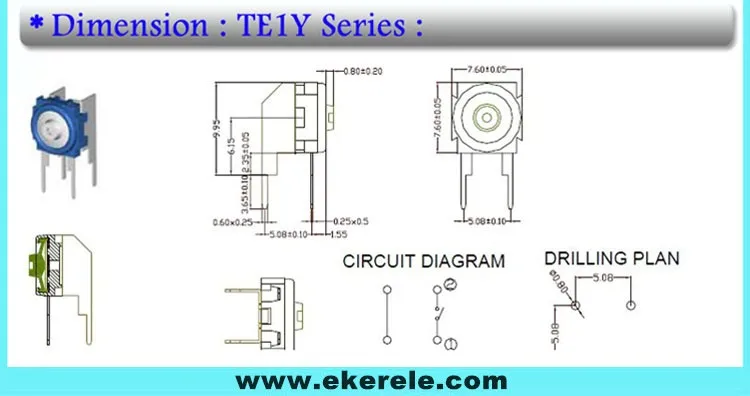

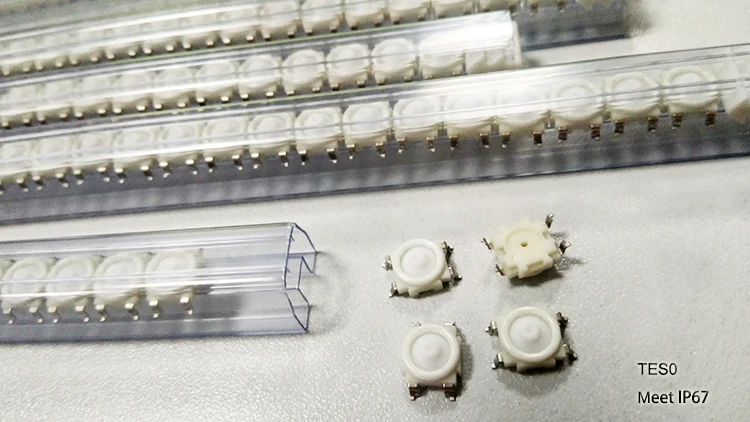

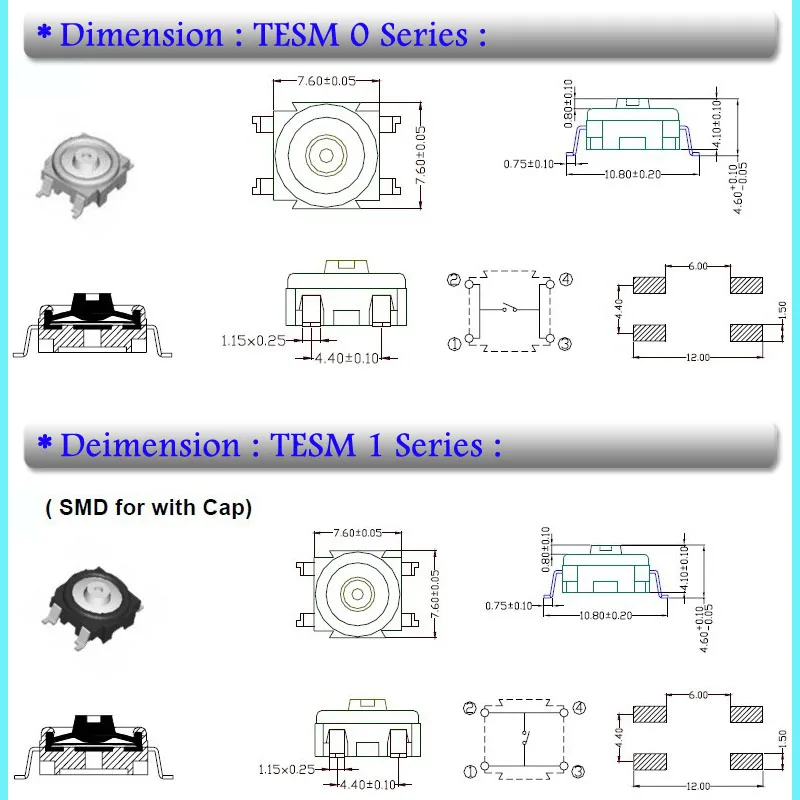

Subminiature IP67 Waterproof SMD Tact Switch with Cap

Specification	Value	Specification	Value
Switching Rating	24VDC,0.5-50mA	Environmental Endurance IEC68-2-3
Contact Resistance	30mΩ max.	Temperature	+40°C
Contact Bounce	<2mS-typically 1.5mS	Humidity	93%RH
Insulation Resistance	>100MΩ	Duration	21 Days
Push Force	4N±1.0N	Temperature Cycling IEC 68-2-14
Max Actuation Force	100N for 10 Sec.	Temperature limit	Min -55°C-Max.+85°C
Travel	1mm	Number of cycles	200
Wave Soldering	275°C 10 Sec.Max.	Exposure times at each temp	10 min
Reflowing Soldering	260°C 30Sec.Max.	Recovery time	16hrs
Hand Soldering	350°C 3Sec.Max.	Sealing IEC 529	Meet IP-67
Terminal	Thru-hole/SMD	Verbration Test	Meet IEC 68-2-6



More About Eker Switch:



1.15⁺ Years' experience of Manufacture.



2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.



3.Original manufacturer with direct factory price, Competitive & Fashionable.



4.High Standard management for quality control.



5.Small order acceptable: 1000pcs are welcome.



6.Safe payment terms: T/T, Western Union, Paypal are available.



7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .



8.OEM available, Customers' designs are warmly welcome.



9.Excellent Service.
