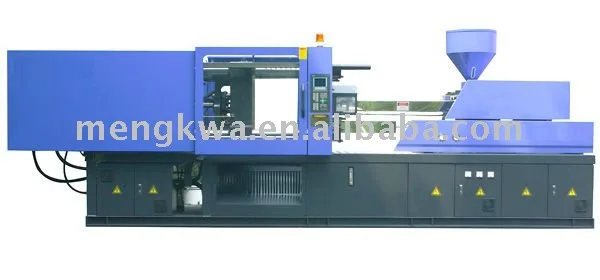

variable energy conservation plastic injection machine
variable energy conservation plastic injection machine
variable energy conservation plastic injection machine

variable energy conservation plastic injection machine

Share on (468958491):


Price:RUB 1,516,360.00 - RUB 4,549,080.00

Quantity:


Product Overview

Description

variable energy conservation plastic injection machine



Specification:

1.It can save the power energy 30%-50%,

2.it is used closeloop proportional varial displacement pump performs close-loop out pressure and flow  with the products

3.it also increases the control precision and reliability of machine.

4.It can be used to produce the more precision requirment plastic production



 Introduction:

1.Precision: The closed loop control variable pump, the system output pressure and flow with the products, production processes need to implement closed-loop control, required to produce high precision plastic products.



Application domain: Uses in the daily life, the electrical appliances, the automobile, the physical distribution, the health, the project, the electron, the pipeline, the building, the packing and so on various domains each kind of precise thermoplastic product production.



Detailed Images

Main technical parameter:

ITEM FT160 FT220 FT280 FTN330 FT380 FT400
INJECTION UNIT   A B C A B C A B C A B C A B C A B C
Screw Diameter mm 40 45 50 45 50 55 55 65 60 60 65 70 65 70 75 65 70 75
Screw L/D Ratio L/D 24.7 22 19.8 24.4 22 20 24 22 20.3 21.6 20 18.5 23.7 22 20.5 23.7 22 20.5
Shot Size(Theoretical) cm 276 350 432 405 500 605 638 760 890 894 1050 1217 1164 1350 1550 1164 1350 1550
Injection Weigh(ps) g 251 318 393 368 455 550 580 690 810 805 945 1095 1062 1232 1414 1062 1232 1414
Injection Rate g/s 119 151 187 147 182 220 215 255 330 262.4 308 357.2 331.3 384.3 441.1 331.3 384.3 441.1
Plasticizing Capacity g/s 19.8 25 30.9 24 29.6 35.8 31.8 37.8 44.3 34.1 40 46.4 40.8 47.4 54.4 40.8 47.4 54.4
Injection Pressure mpa 227 180 145 222 180 148 214 180 153 211 180 155 203 175 152 203 175 152
Screw Speed rpm 0-225 0-190 0-185 0-200 0-180 0-180
CLAMPING UNIT
Clamp tonnage  KN 1600 2200 2800     3300    3800     4000
Toggle Stroke mm 450 500    550    660    680    710
Space Between tie bars mm 455x450 515x510    580x580    680x680    720x720    730x730
Max. mold height mm 500    520    580    680    720    750
Min. mold height mm 150    165    200    220    250    250
Ejector stroke mm 110 160    160    160    200    200
Ejector tonnage KN 35 65    65    65    110    110
Ejector number pc 5    9    9    9    17    17
OTHERS
Max. pump pressure Mpa  16    16   16       16 16    16
Pump motor power kw  18.5 22    30    30    37    37
Heater power kw  9.84    12.73    16.9    18.5    23.15    23.15
Machine dimension(LxWxH) m  5.2x1.3x1.8    5.7x1.5x1.9    6.2x1.5x2.0    7.0x1.9x2.4    7.7x2.0x2.0    8.0x2.1x2.4
Machine Weight T  5.2    7.0    8.8    13    17.5    17
Hopper capacity kg  25    50    50    50    50    50
Oil tank capacity L  306    380    500    480    1000    650

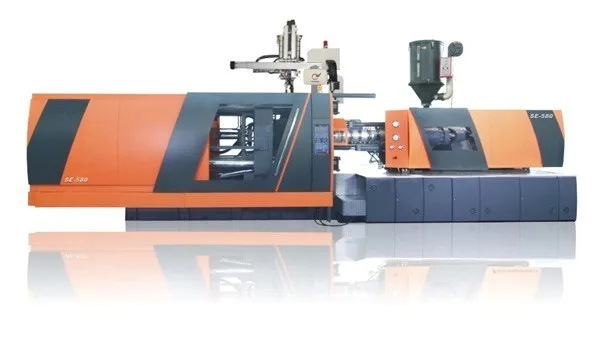

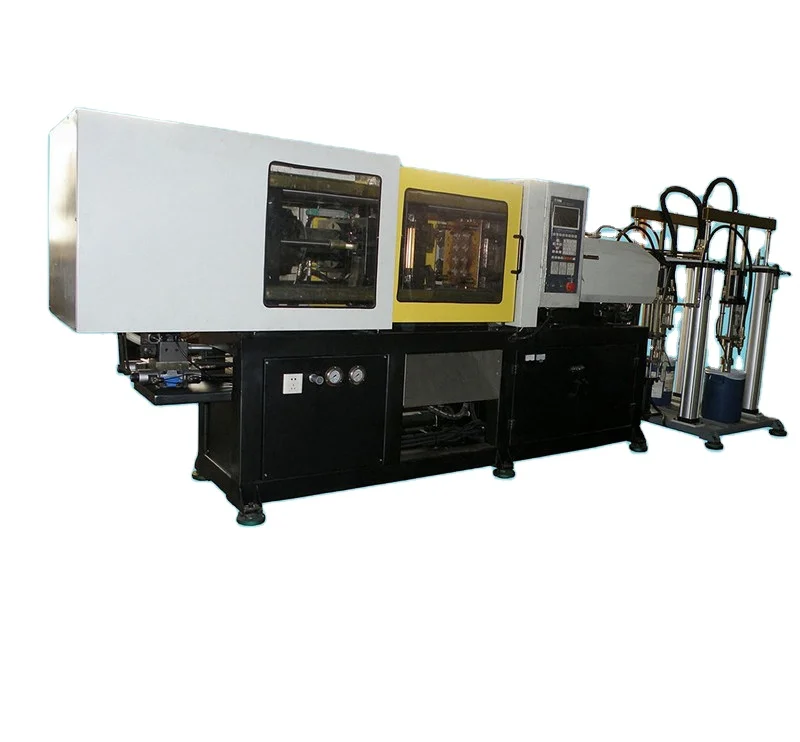

 energy injectionHorizontal LSR Injection Machine
