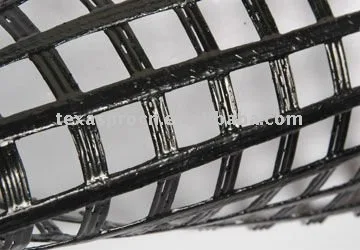

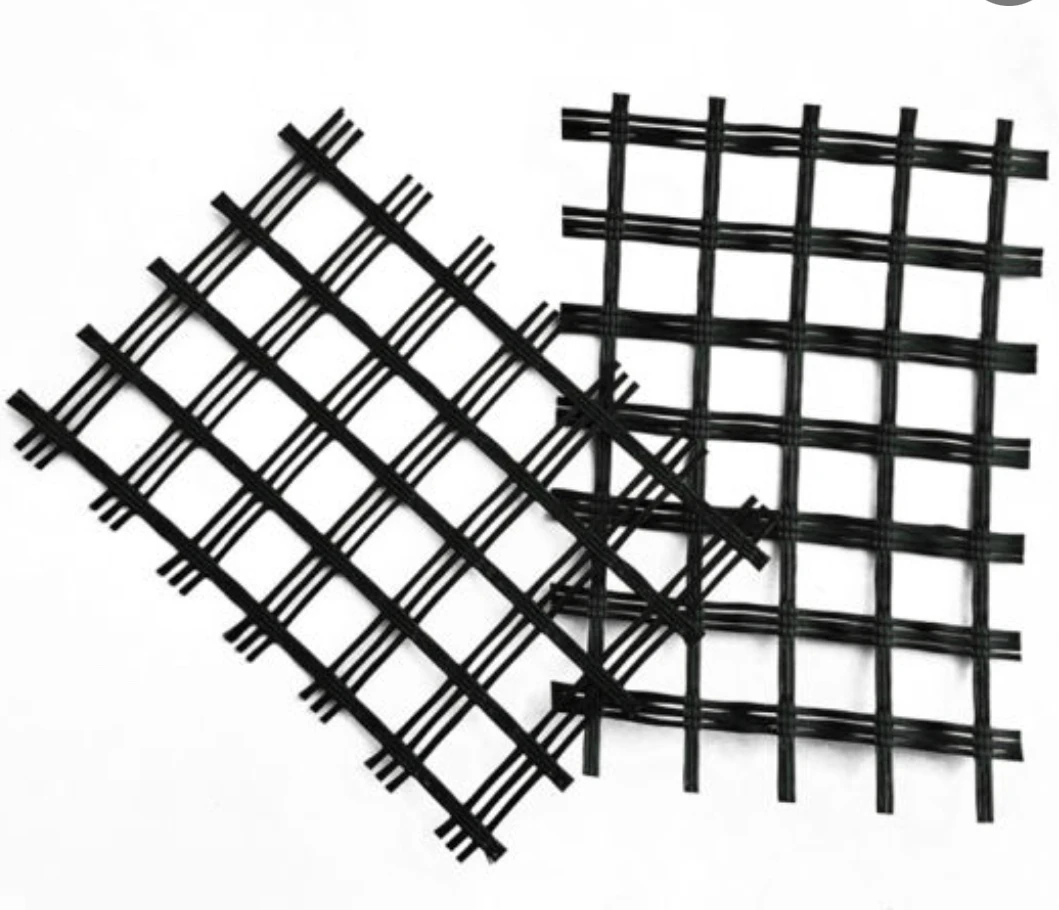

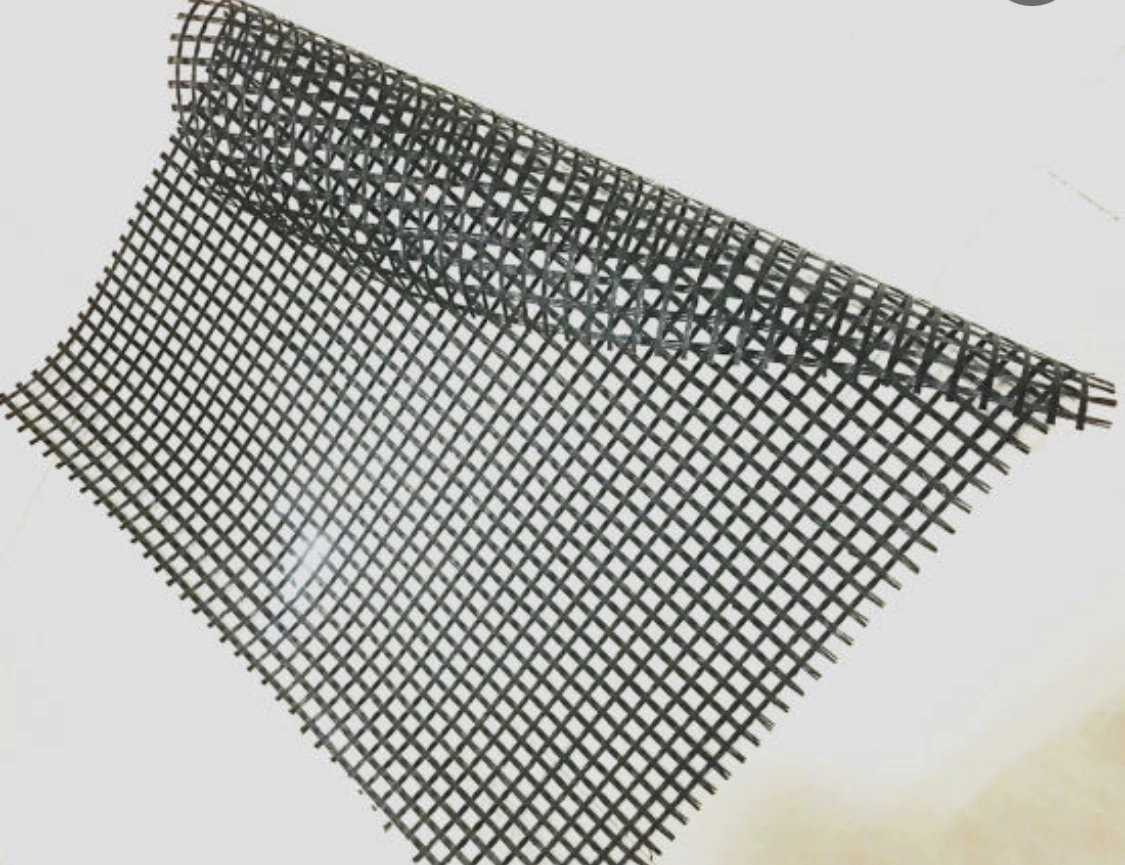

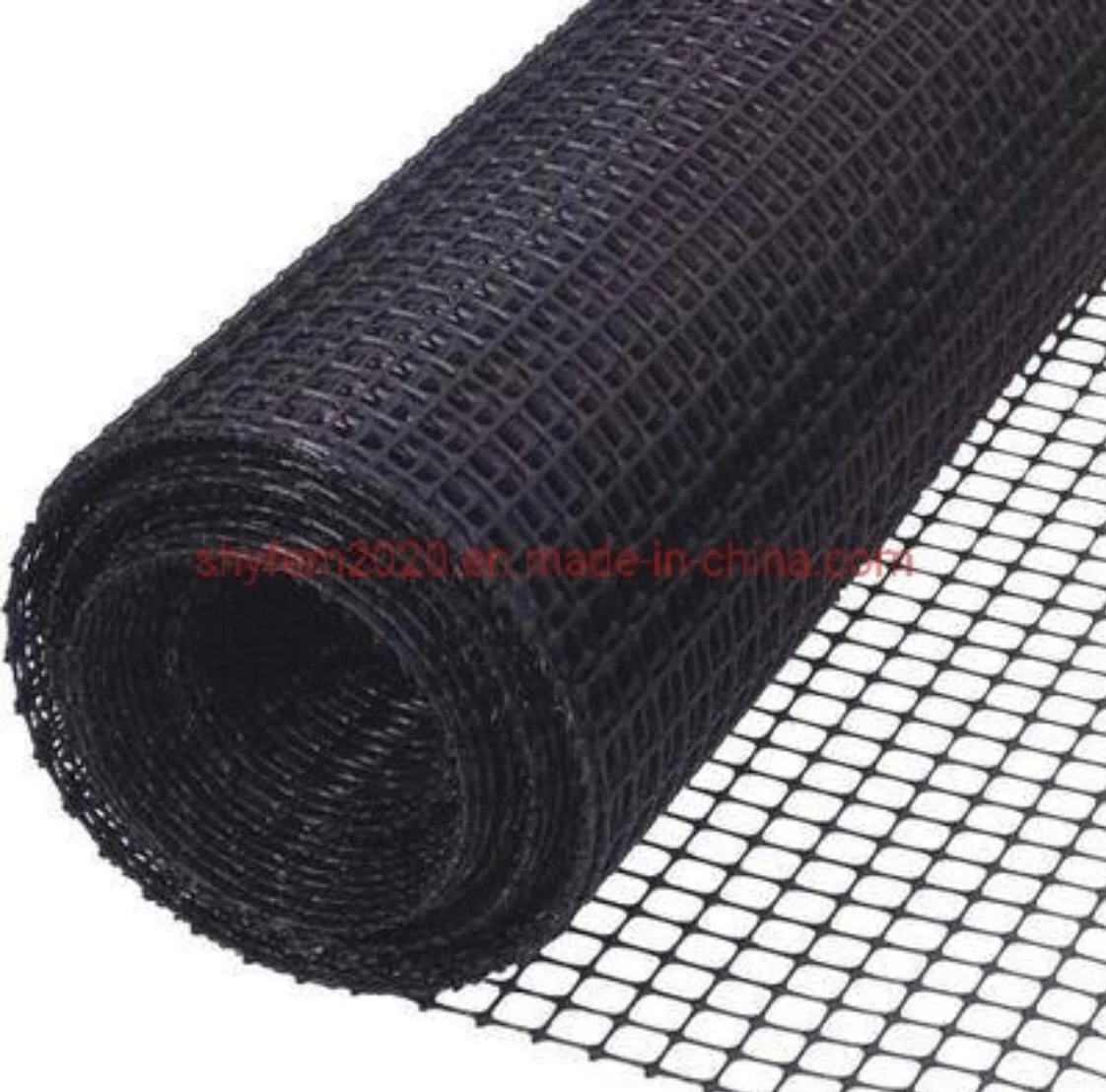

PVC Fiberglass Geogrid

Product Overview

Description

Raw material: fiberglass
surface: PVC
Feature:high intensity, low elongation ratio, thermostable, high module,anti-corrosive

Product function :

1. It reinforces old asphalt concrete road surface and asphalt surface layer, and prevent damage.


2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction .


3. It is used in road expansion and improvement project and caused by old and new combination position and uneven sedimentation.


4. It is in soft soil base reinforcement treatmen ,is favorable for soft soil water separation and concretion, restrains sedimentation effectively, distributes stress uniformly and overall strength of road base


5. It is used for preventing contraction crack cause by new road semi-rigid base layer, and reinforcing and preventing road surface crack caused by foundation crack reflection.



Specification/performance		TGS-B-25-25	TGS-B-30-30	TGS-B-40-40	TGS-B-50-50	TGS-B-60-60	TGS-B-80-80
intensity(KN/m)	longitudianl	25	30	40	50	60	80
	Horizontal	25	30	40	50	60	80
Break elongation ratio(%)		≤3	≤3	≤3	≤3	≤3	≤3
Center distance of the network (mm)		12.7x12.7      25.4x25.4
Breadith(m)		1--6	1--6	1--6	1--6	1--6	1--6



TGS-B-90-90	TGS-B-100-100	TGS-B-200-200	TGS-B-300-300	TGS-B-400-400	TGS-B-50-50-Z(self-adhesive)
80	80	80	80	80	50
80	80	80	80	80	50
≤3	≤3	≤3	≤3	≤3	≤3
12.7x12.7      25.4x25.4
1--6	1--6	1--6	1--6	1--6	1--6
