Quality Plate Vulcanizing Press For Rubber
- Category: Other Plastic & Rubber Machinery >>>
- Supplier: Ningbo Mengkwa Machinery Co. Ltd. [Zhejiang China]Ningbo
Share on (469307921):
Product Overview
Description

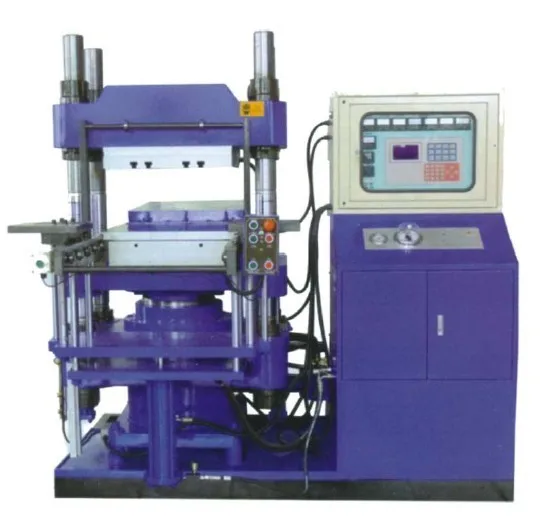

Plate Vulcanizing Press For Rubber
Application & Features:
It is the main moulding equipments for various of rubber molding products and non-molding products,with simple structure,high pressure,wide applicability,and high efficiency,the equipment is also suitable for molding to thermosetting plastic,bubble,resins,bakelite,sheet metal,building materials and other molding products.
Main Technical Parameter:
| MODEL |
XZB-D400×400
|
XZB-D500×500
|
XZB-D550×600
|
XZB-D650×700
|
XZB-D850×1000
|
XZB-D1000×1200
|
| Clamping force |
630 kN
|
1000 kN
|
2000 kN
|
3000 kN
|
4000 kN
|
6000 kN
|
| Clamping stroke |
250 mm
|
300 mm
|
300 mm
|
350 mm
|
400 mm
|
450 mm
|
| Rapid clamping speed |
≥50 mm/s
|
≥50 mm/s
|
≥50 mm/s
|
≥40 mm/s
|
≥40 mm/s
|
≥40 mm/s
|
| Heating plate size |
400 mm×400 mm
|
500 mm×500 mm
|
550 mm×600 mm
|
650 mm×700 mm
|
850 mm×1000 mm
|
1000 mm×1200 mm
|
| Heating plate spaceing |
250~350 mm
|
200~400 mm
|
180~480 mm
|
300~500 mm
|
400~500 mm
|
400~500 mm
|
| Max temperature |
250 °C
|
250 °C
|
250 °C
|
250 °C
|
250 °C
|
250 °C
|
| Material cylinder spec |
Ø70 mm×215 mm
|
Ø80 mm×255 mm
|
Ø90 mm×290 mm
|
Ø110 mm×355 mm
|
Ø130 mm×445 mm
|
Ø160 mm×780 mm
|
| Injection stroke |
305 mm
|
380 mm
|
450mm
|
580 mm
|
680 mm
|
1060 mm
|
| Injection pressure |
70 MPa
|
100 MPa
|
100 MPa
|
100 MPa
|
80 MPa
|
90 MPa
|
| Ejector stroke |
250mm
|
250mm
|
300mm
|
350 mm
|
400 mm
|
-
|
| Max ejector force |
40 kN
|
60 kN
|
60 kN
|
60 kN
|
120kN
|
-
|
| Motor power |
5.5 kW
|
5.5 kW
|
5.5 kW
|
5.5 kW
|
(7.5+4) kW
|
(11+11) kW
|
| Heating power |
6.4 kW
|
9.8 kW
|
13.1 kW
|
19 kW
|
34 kW
|
52 kW
|
| Extemal dimension(L×W×H) |
1550mm×1850mm×(2500~2600)mm
|
1660mm×2100mm×(2800~3000)mm
|
1900mm×2400mm×(3000~3200)mm
|
2100mm×2700mm×(3650~3850)mm
|
2500mm×3500mm×(4800~5200)mm
|
2700mm×4100mm×(5780~5880)mm
|
| Oil tank capacity |
160 L
|
270 L
|
320 L
|
350 L
|
500 L
|
1000 L
|
