1kw permanent vawt magnet generator
- Category: >>>
- Supplier: Tangshan Toyoda Technology Co. Ltd.
Share on (469861016):
Product Overview
Description

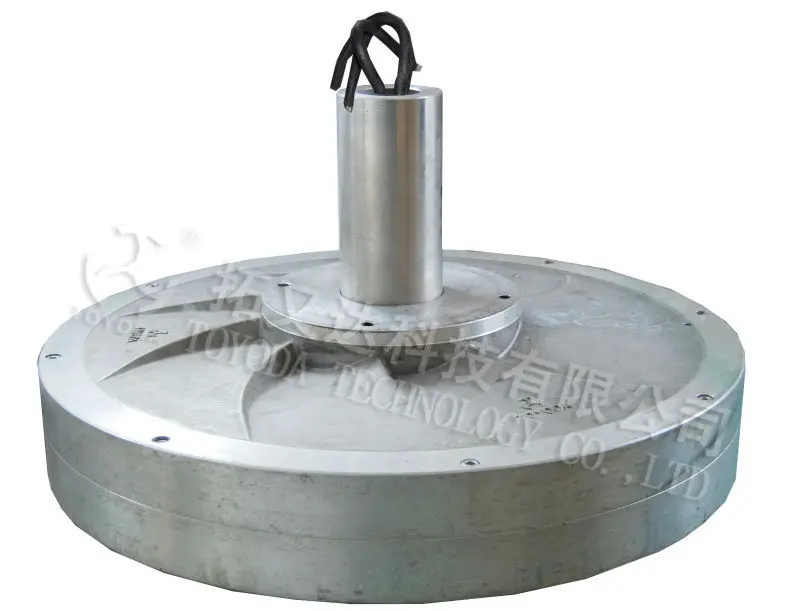

1kw permanent vawt magnet generator
low-cost with good quality;
independently designed and developed
Popular in Europe&America
Some Details of the wind generator
Model | TYD250-300 | TYD350-1000 | TYD450-2000 | TYD450-3000 | TYD600-5000 | TYD600-10000 |
Rated output power W | 300w | 1kw | 2kw | 3kw | 5kw | 10kw |
Rated rotation speed RPM | 300 | 230 | 180 | 180 | 100 | 300 |
Open circuit voltage V (DC) | 81 | 248 | 391 | 420 | 470 | 690 |
Rated voltage V (DC) | 61 | 101.2 | 250.3 | 271.3 | 373 | 531.2 |
Start-up torque N.M | 0.2 | 0.5 | 1.0 | 1.5 | 1.5 | 2.0 |
Rated torque N.M | 53.3 | 53.3 | 134.4 | 353.9 | 582.6 | 374.7 |
Rated current A (DC) | 12.7 | 10.1 | 8.3 | 11.3 | 14.1 | 19.6 |
Output | Three phase current | Three phase current | Three phase current | Three phase current | Three phase current | Three phase current |
Efficiency | 0.75 | 0.76 | 0.78 | 0.78 | 0.80 | 0.83 |
Designed lifetime (year) | 20 | 20 | 20 | 20 | 20 | 20 |
Mounting Type | vertical | vertical | vertical | vertical | vertical | vertical |
Weight(kg) | 9.5 | 25 | 57 | 60 | 96 | 104 |
Insulation | F | F | F | F | F | F |
Size(mm) | 250*185 | 350*210 | 450*328 | 450*328 | 613*350 | 450*328 |
Shaft Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Shaft Bearing | Senior SKF/NSK bearing | Senior SKF/NSK bearing | Senior SKF/NSK bearing | Senior SKF/NSK bearing | Senior SKF/NSK bearing | Senior SKF/NSK bearing |
Casing material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
Magnets Material | NdFeB | NdFeB | NdFeB | NdFeB | NdFeB | NdFeB |
FEATURE OF WIND GENERATOR
Axial type; outer rotor; iron-coreless; three-phase AC
Gear-free direct drive mechanism
Unique reinforced structure of flange ensures wind resistant ability strong and a good resistance to corrosion
ADVANTAGE OF OUR SERVUCE
Professional installation personnel supplied by us
