Fiberglass Chopped Strand Mat C glass E glass

Product Overview

Description

Overview

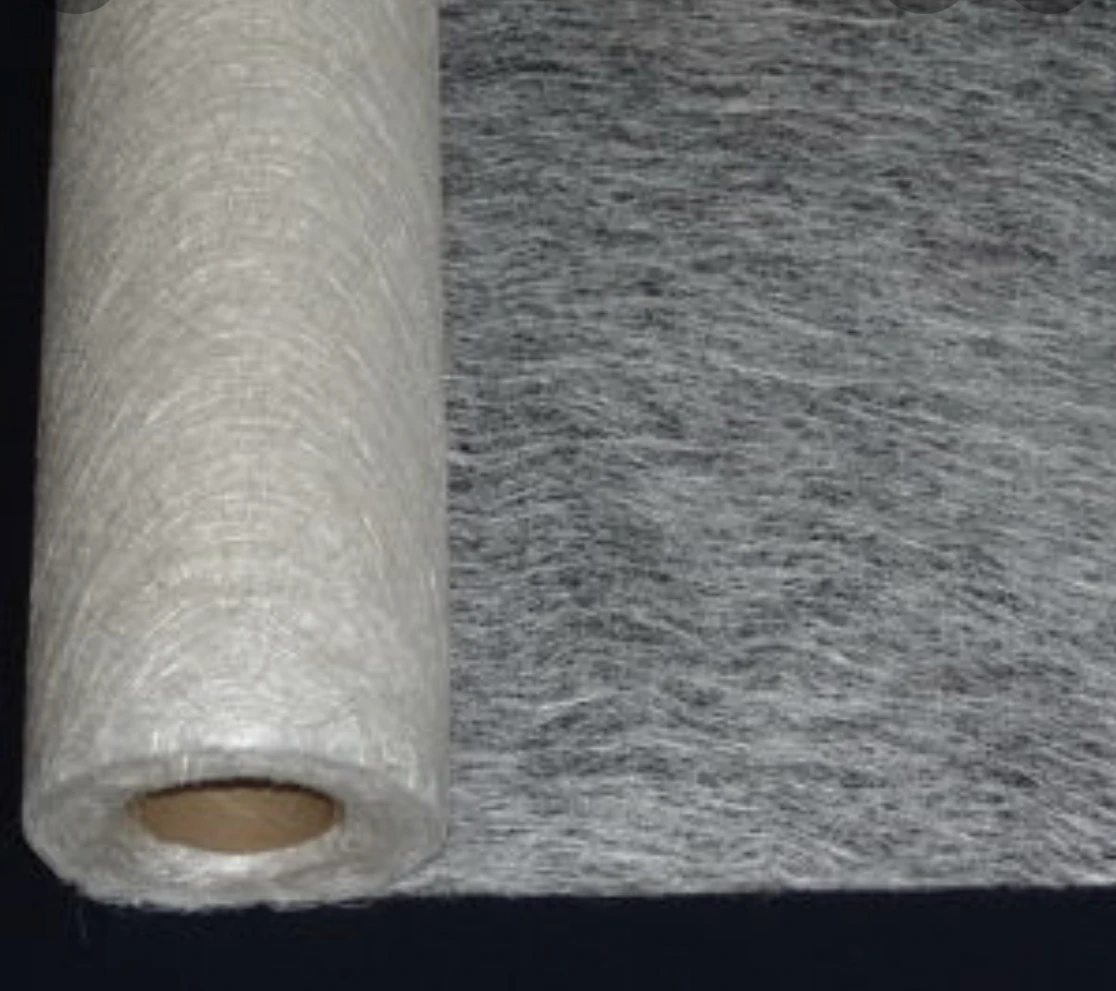

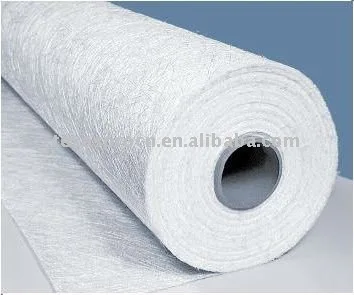

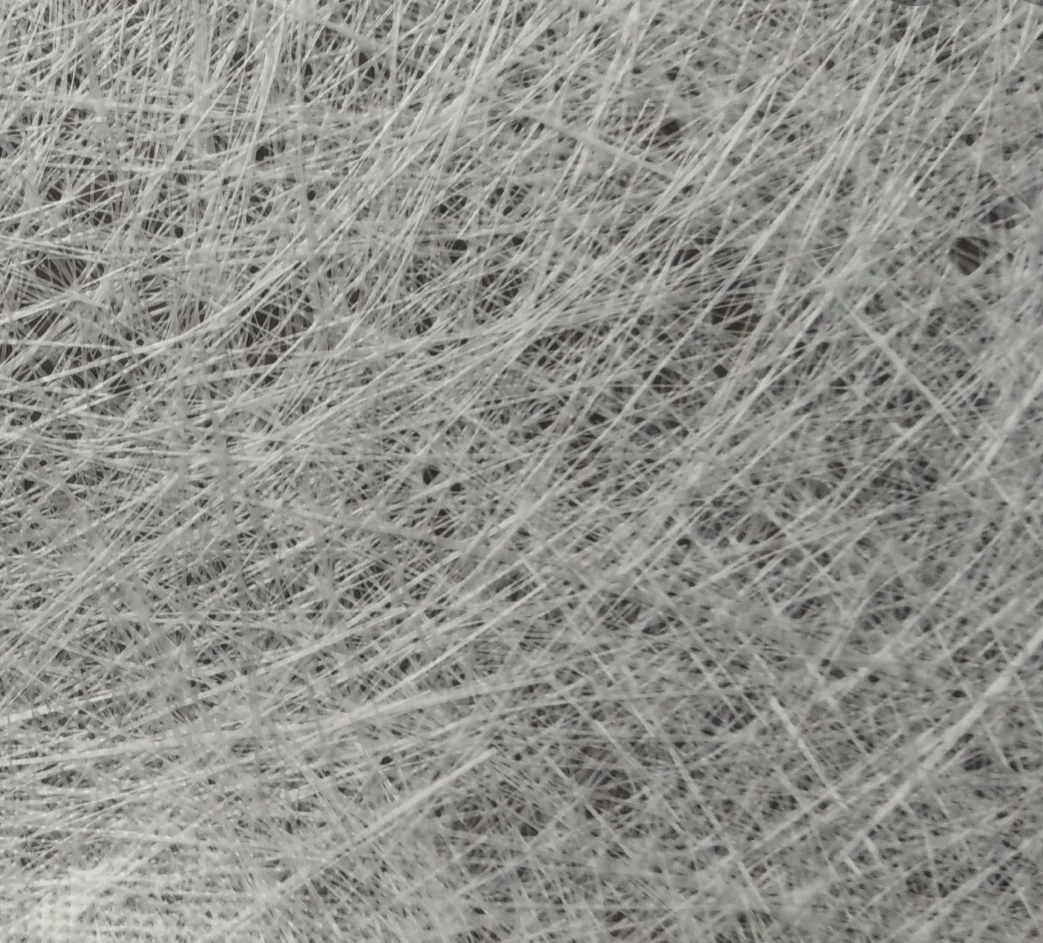

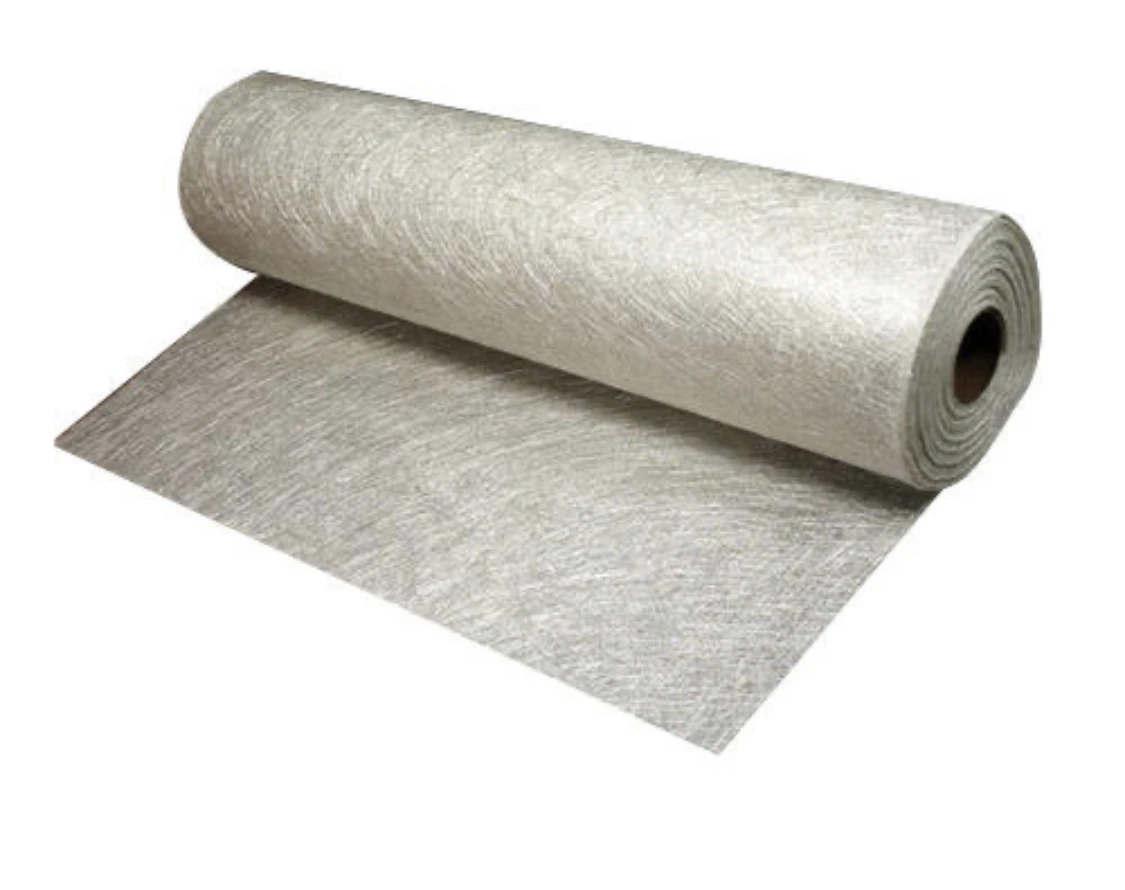

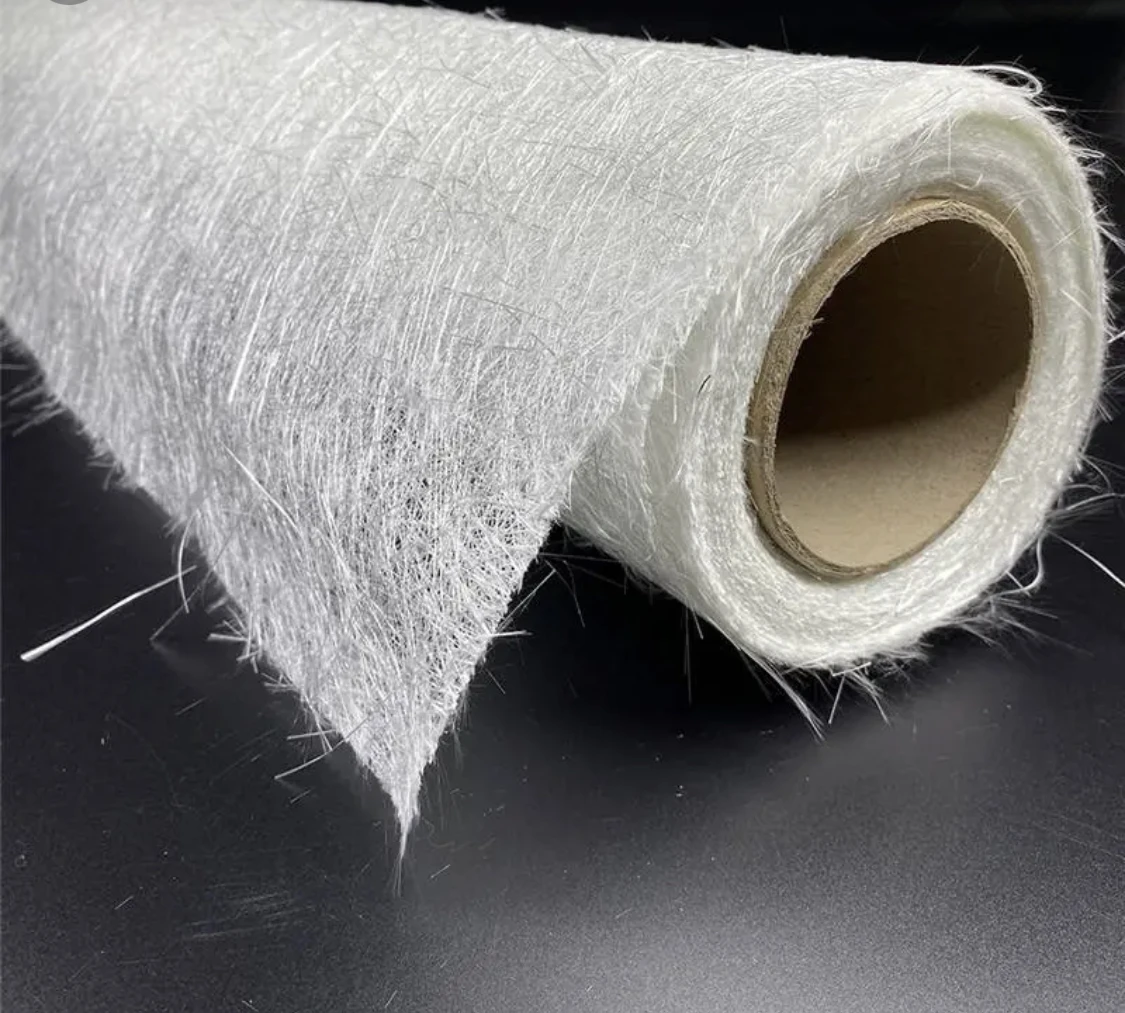

Chopped Strand Mat is a non-woven reinforcement material. It is made by cutting continuous roving, randomly dispersing the short strands, and bonding them into a thin sheet.

Also known as veil and CSM, glass-based non-wovens have many benefits for manufacturers and end-users, such as their dimensional stability and tear strength, and the fact that glass fibers do not absorb moisture or support mold and mildew growth.



Product Characteristics

• High dimensional stability


• Does not absorb moisture


• Excellent uniformity

Properties

Type of Glass	C-Glass or E-Glass
Length of Strand	50 mm
Strand Sizing	Silane
Binder	Powder or Emulsion
Compability Resin	Polyester / Epoxy
Area Weight	100 g/m² to 900 g/m²
Width	20 cm to 320 cm



Technical Characteristics (nominal values)

Product Code	Area Weight (gr/m²)	Moisture Content (%)	Loss on Ignition (%)	Breaking Strength (N/150 mm)
CSM 200	200	< 0.15	2 - 10	≥ 60
CSM 225	225	< 0.15	2 - 10	≥ 60
CSM 300	300	< 0.15	2 - 6	≥90
CSM 380	380	< 0.15	2 - 5	≥100
CSM 450	450	< 0.15	2 - 5	≥120
CSM 600	600	< 0.15	2 - 5	≥150
