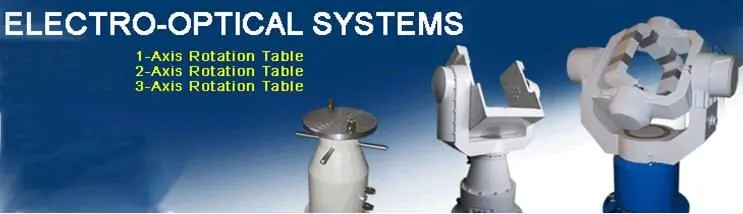

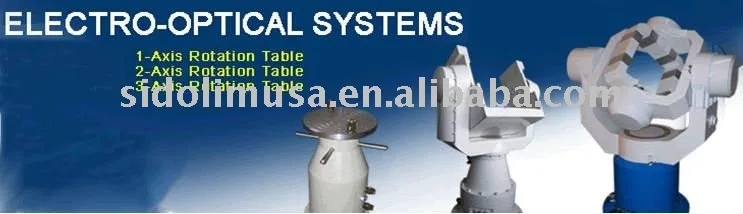

High precision double axis & 2 biaxis test rotation table

Product Overview

Description

Product description

2-axis rotation table is a multi-functional simulation-measuring device with 2 axis U-T frame type. It can provide the position, rate, swing etc. functions and meet the requirement of all function tests and experiments for the inertial system and inertial parts. The table is operated and controlled by industrial computer with high precise poisoning capability, smooth rate, small degree of distortion and good dynamic characteristics.



Technical specifications:

1. Load bearing capability:15Kg
2. Dimension of table surface:Φ 320mm
3. Wobble error :± 4"
4. Ending beat :0.015mm
5. Rotational angle range: continuous, unlimited
6. Operational method : position, rate, swing
7. Table's weight : about 55Kg
8. Slip ring : User's slip ring channel
9. Comput er system : industrial control computer, Windows interface, Serial Port RS-422
10.  Safety precaution : speeding emergency power-off protection
11.  Operating temperature : 20 ° C ± 5 ° C
12.  Angular position measuring accuracy :± 3"
13.  Angular position measuring resolution : 0.36"
14.  Angular position measuring repeatability :± 2"
15.  Angular position control accuracy :± 5"
16.  Angular speed range:0.001 °~ 400 ° /s
17.  Angular speed accuracy and stability : 2 × 10 ^-3 (1 ° average)

5 × 10 ^-4 (10 ° average)

5 × 10 ^-5 (360 ° average)

1.  Maximum angular acceleration : 400 ° /s ²
2.  Swing amplitude :± 90 °
3.  Swing cycle : 5sec ~ 50sec
4.  Control system's frequency : 10Hz

If there are any other requirements, please contact us without hesitation.
