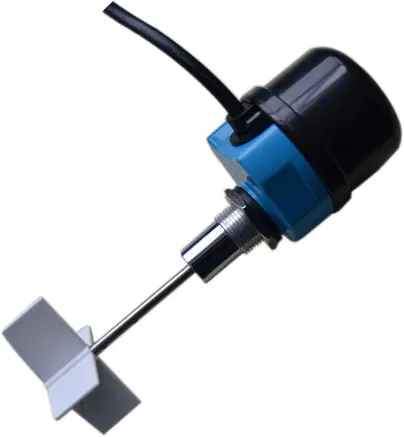

KDSS86 MINI Paddle Level Switch for powder, Rotary Paddle Level Switch

Product Overview

Description

Thread Type Rotary Paddle Level Switch

For light material like plastical grain: PP, PC, PE, most useful in injection moulding.







Technical Specifications:



Voltage	AC220V/1A; DC24V/0.5A
Power	3W
Contact capacity	SPDT 5A/250VAC
Process connection size	2-1/2 " × 5kg flange (acceptable custom)
Blade speed	1RPM
Torque	10kg-cm
For the proportion of	≥ 0.4g/cm3
Withstanding Voltage	1500VAC × 1min
Temperature	-20 ~ 80 °C
Population size into line	1 / 2 "PF
Protection class	IP65
Installation	Vertical installation

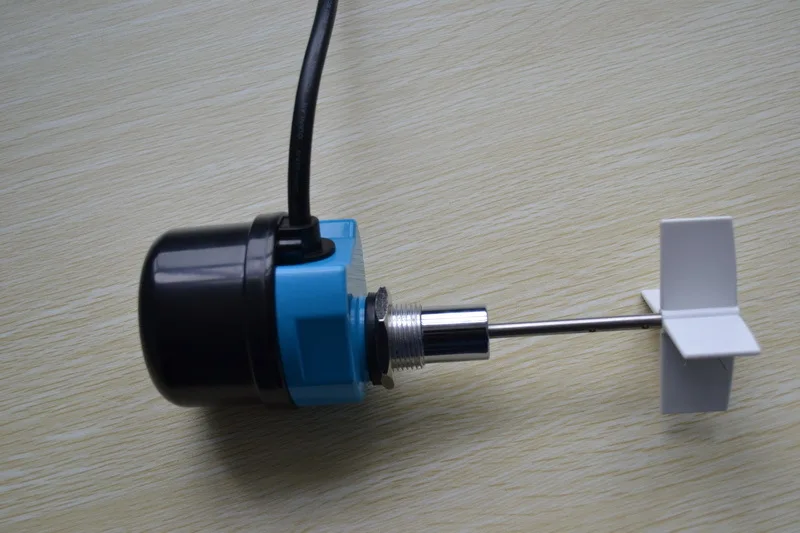

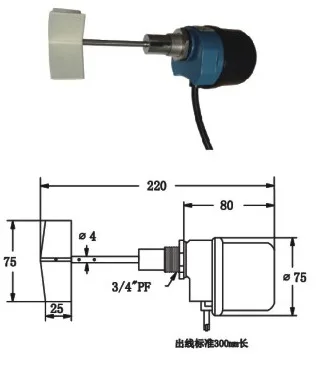

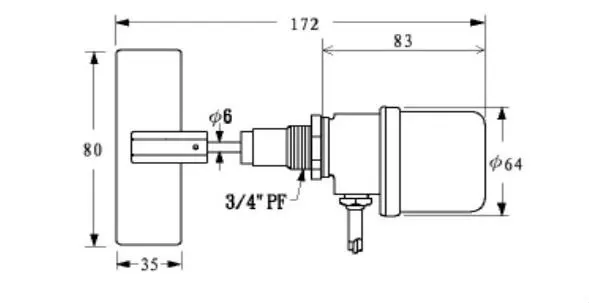

 Technical drawings





Other available models:



Manufacturing Facilities









 Rotary Paddle Level Switch utilizes micro motor as drive device, transmission shaft contact with clutch. When it doesn't contact with material, the motor runs normally; When the blade contacts with material, the motor stops running; Detacher device outputs a contact signal and cuts the power, meanwhile it stops rotary. The pressure to blade is disappeared when the material gradually fall down and the testing device recovered to the original state by torsion spring. Torsion could be regulated according to different gravity of material. Rotary paddle level switch can eliminate the normal fault which other common rotary paddle level switch has. When adding material, it would not go to stop though the motor stops by cutting power. This can reduce fraction, operating temperature and extend the lifetime of motor. The switch contains little moving parts, three sets of drive bearing and sealed, lubricated driving gear assembly. That is why the RD series of Rotary Paddle Level Switch gains reliable control force in the market. Rotary paddle level switch specially used for detecting material level of warehouse, vessel and tank. The material level switch can prevent warehouse flooding, tank jam and warehouse empty so as to reduce flooding, material waste and standby time. Rotary Paddle Level Switch is also suitable for plastic, food, chemical industry, mineral iron, material and other solid matter.
