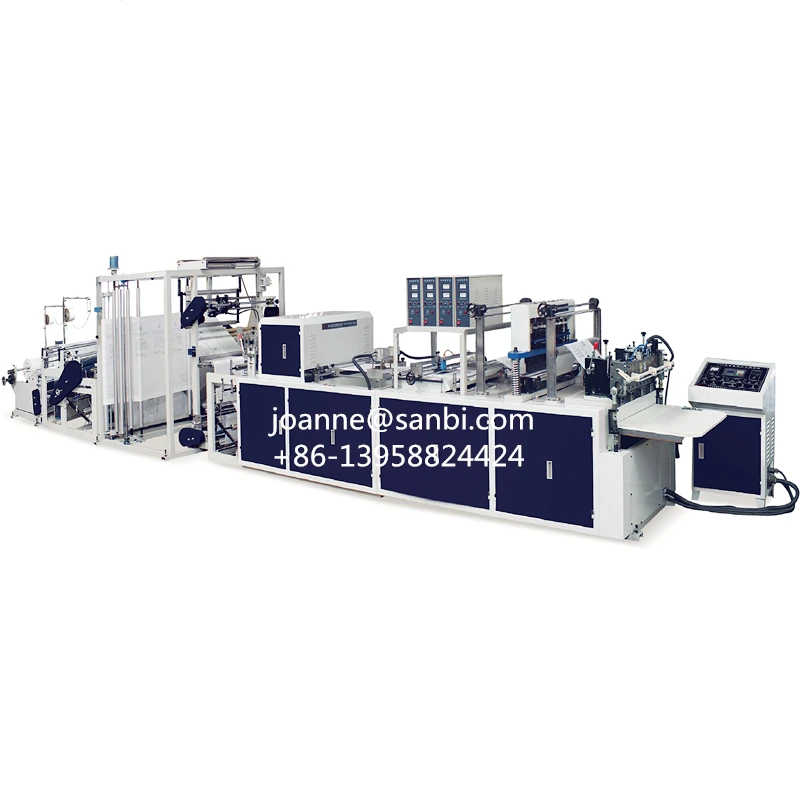

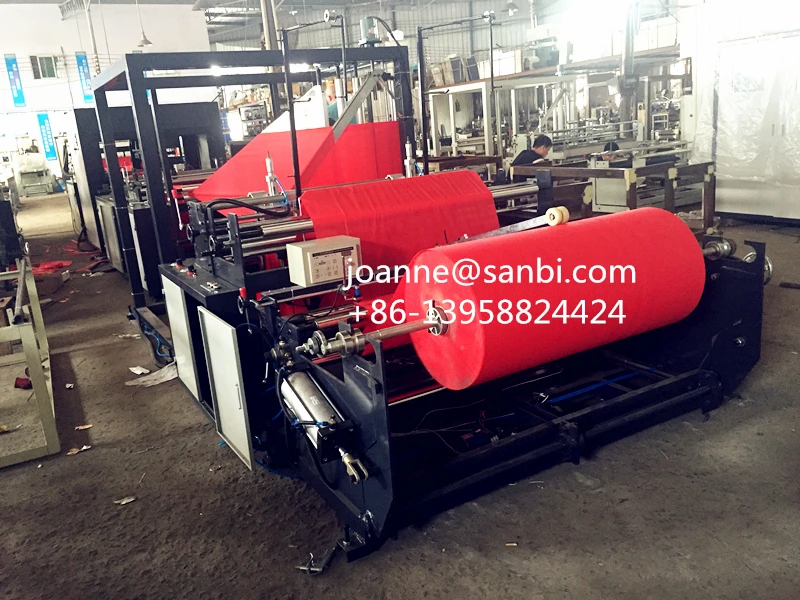

Full automatic non woven bag making machine
- Category: >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (470364324):
Product Overview
Description

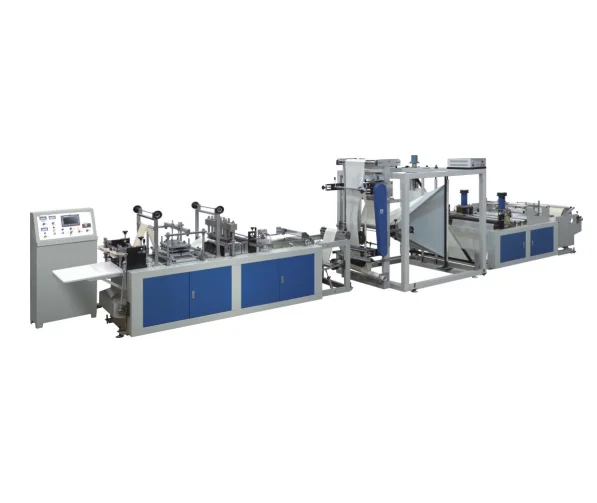

Non-woven Bag making machine :
CHARACTERISTICS OR MAIN TECHNICAL VARIABLES:

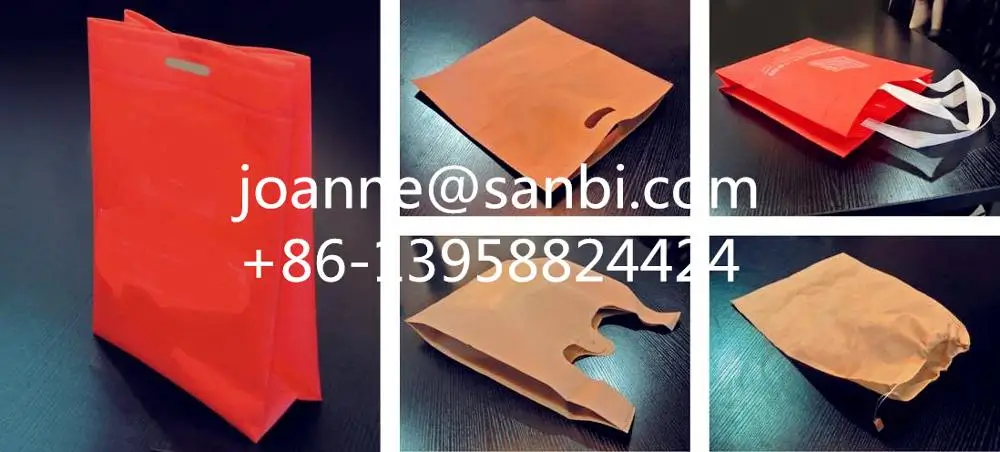

This machine applies for non-woven materials. It can make many kinds of bags such as vest bags, loop handle bags, flat bags, and ribbon-through bags for shoes and purse etc.
It is equipped with computer touch screen, step motor to control the length and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.
| model | BT-600 | BT- 800 |
| MAX. Width of finished product | 550mm | 750mm |
| Max bag length | 1000mm | 1000mm |
| MAX. Width of diameter | 1000mm | 1000mm |
| Produce speed | Original non-printing bag 60pcs/min ,printing bag 40pcs/min | Original non-printing bag 60pcs/min ,printing bag 40pcs/min |
| power | 220V(380V) | 220V(380V) |
| Gas power | 0.5-0.6mpa | 0.5-0.6mpa |
| total power | 15kw | 16KW |
| Actual Operation power | 8kw | 9-10KW |
| Overall dimension(L*W*H) | 11500*1900*2300MM ( 8M X8M square space) | 115600*2100*2400MM ( 8M X8M square space) |
