HSS M2 DIN3968 DP Module Gear Hob Cutter with pressure angle 20 degree

Product Overview

Description

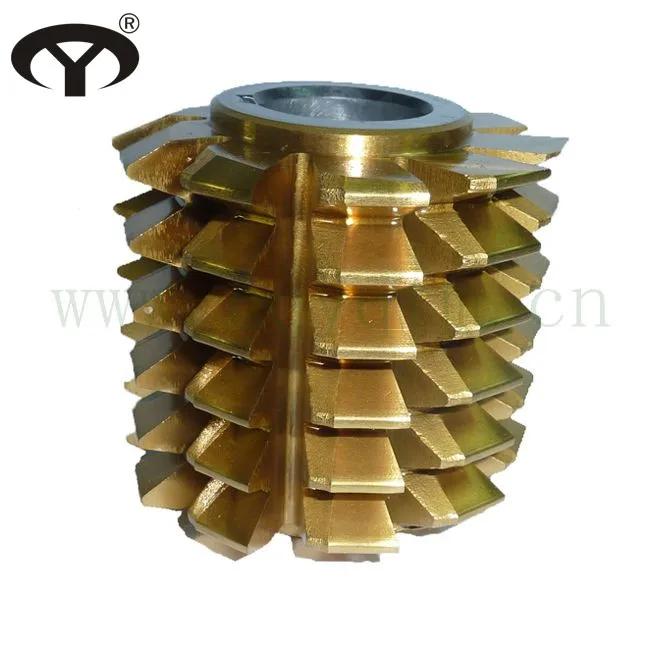

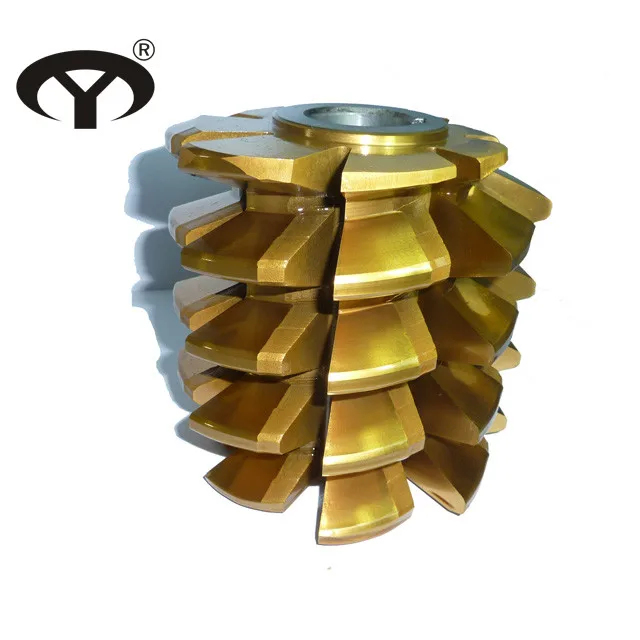

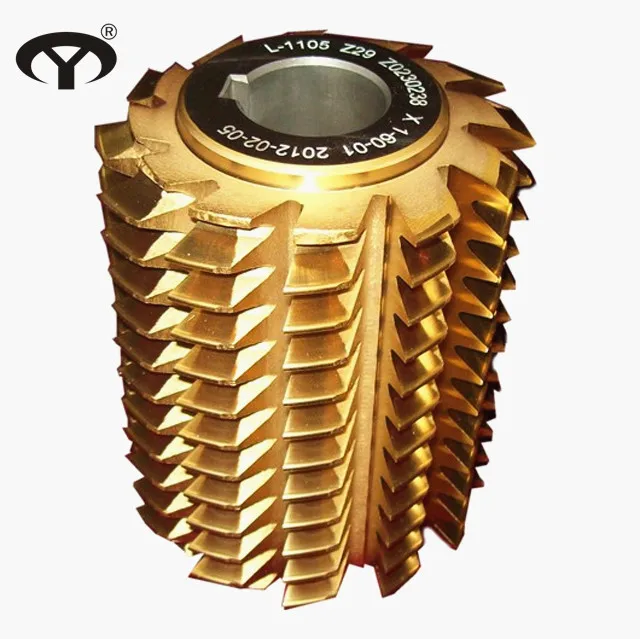

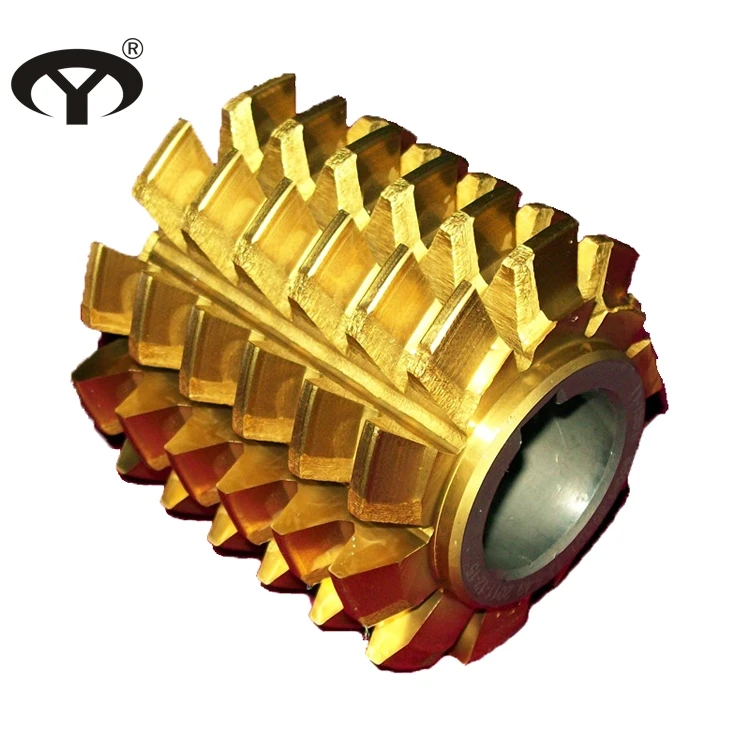

HSS DIN3968 DP Module Gear Hob Cutter with pressure angle 20 degree



classAA , classA



hobs with inch holes can be made



size:



D.P	Outside Dia.	Overall Length	Hole Dia.
3	125	115	32
3.5	115	105
4	110	100
4.5	100	95
5	90	90	27
6	85	80
7	80	70
8	75	65
9	65	55	22
10
11	60	50
12	55
14	55	45
16
18
20	50	40
22
24























Standard tooth profile of HSS M2 right hand module and DP gear hob cutter :







Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.



Production process of HSS M2 DIN3968 DP Module Gear Hob Cutter with pressure angle 20 degree





Material Introduction:



A. W6Mo5Cr4V2 (GB), M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application: It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), S6-5-2-5(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application: It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
