Protection against both overload and short circuit,function of isolation
High short circuit capacity
Contact position indicator
Pin/fork type busbar terminal connecting
35mm DIN rail mounting and screw mounting
Handle can be locked with pad-lock to prevent unwanted operation for safety.
Full range accessories are available.
Technical data
Rated current(In):6,10,13,16,20,25,32A
Rate voltage(Un):230/415VAC,400/415VAC
Breaking capacity:4.5kA
Rated frequency:50/60Hz
Tripping charateristics:B,C,D

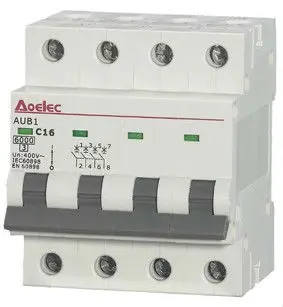

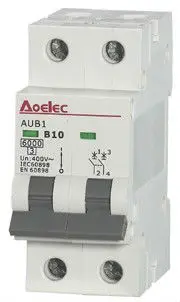

Number of poles:1P,2P,3P,4P,1P+N,3P+N
Rated impulse withstand voltage(Uimp):4kv
Electrical endurance:10000cycles
Mechanical endurance:20000cycles
Terminal:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 60898-1
Catalog No. CTN Size:46.5X24X17.5
In(A)
B(3-5In)
C(5-10In)
D(10-20In)
QTY/Box
QTY/CTN
Model No.
Model No.
Model No.
PCS
PCS
6A

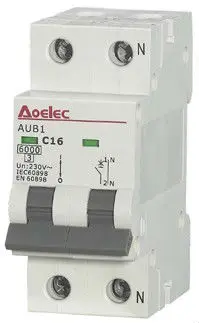

AUB1N 1P+N B6
AUB1N 1P+N C6
AUB1N 1P+N D6
12
120
10A
AUB1N 1P+N B10
AUB1N 1P+N C10
AUB1N 1P+N D10
12
120
16A
AUB1N 1P+N B16
AUB1N 1P+N C16
AUB1N 1P+N D16
12
120
20A
AUB1N 1P+N B20
AUB1N 1P+N C20
AUB1N 1P+N D20
12
120
25A
AUB1N 1P+N B25
AUB1N 1P+N C25
AUB1N 1P+N D25
12
120
32A
AUB1N 1P+N B32
AUB1N 1P+N C32
AUB1N 1P+N D32
12
120
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our mini circuit breaker KEMA,TUV,SEMKO,CB and CE certificates.
