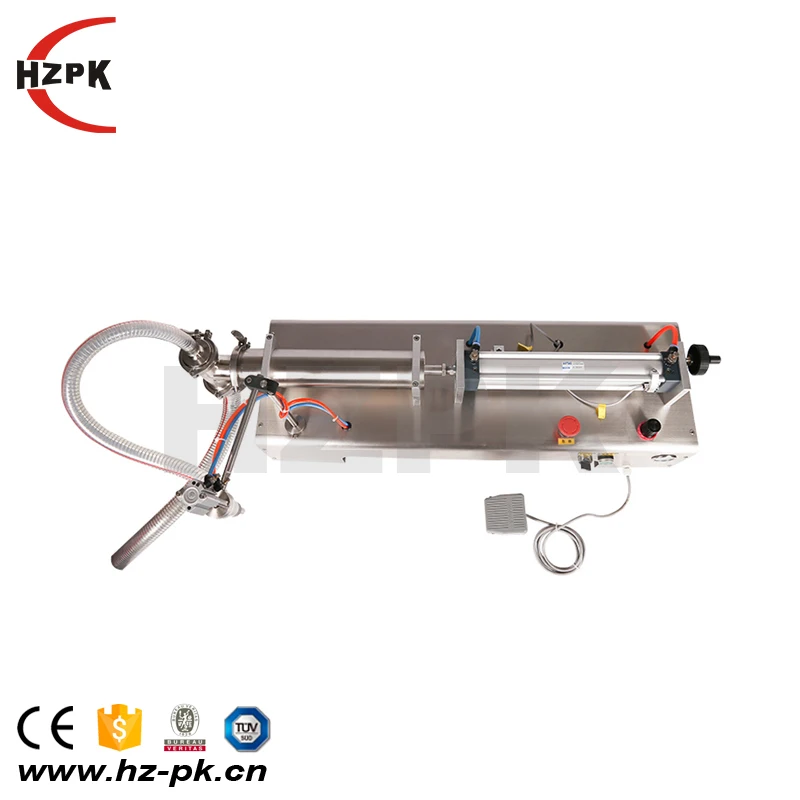

HZPK small semi automatic perfume water milk juce beverage liquid bottle piston filling machine
- Category: >>>
- Supplier: Zhejiang Haizhou Packing Machine Co. Ltd.
Share on (471719556):
Product Overview
Description
Why Choose Us
1. More than 20 years manufacture in packing machine
2. 13 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
Product Description
Model | G1WYD-1000 |
Filling range | 100-1000ml |
Product capacity | 5-20 bots/min |
Filling Accuracy | ±1% |
Air Pressure | 0.4-0.6MPa |
Required Air Compressor | ≥1.5KW 65L |
Introduction:
Horizontal single head liquid filling machine is the ideal equipment for filling liquid. Such as perfume, toilet water, sesame oil, wine, detergent and other liquid.
It's widely used in food, beverage, cosmetics and other industries.
Filling principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.
Horizontal single head liquid filling machine is the ideal equipment for filling liquid. Such as perfume, toilet water, sesame oil, wine, detergent and other liquid.
It's widely used in food, beverage, cosmetics and other industries.
Filling principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.
Detailed Images

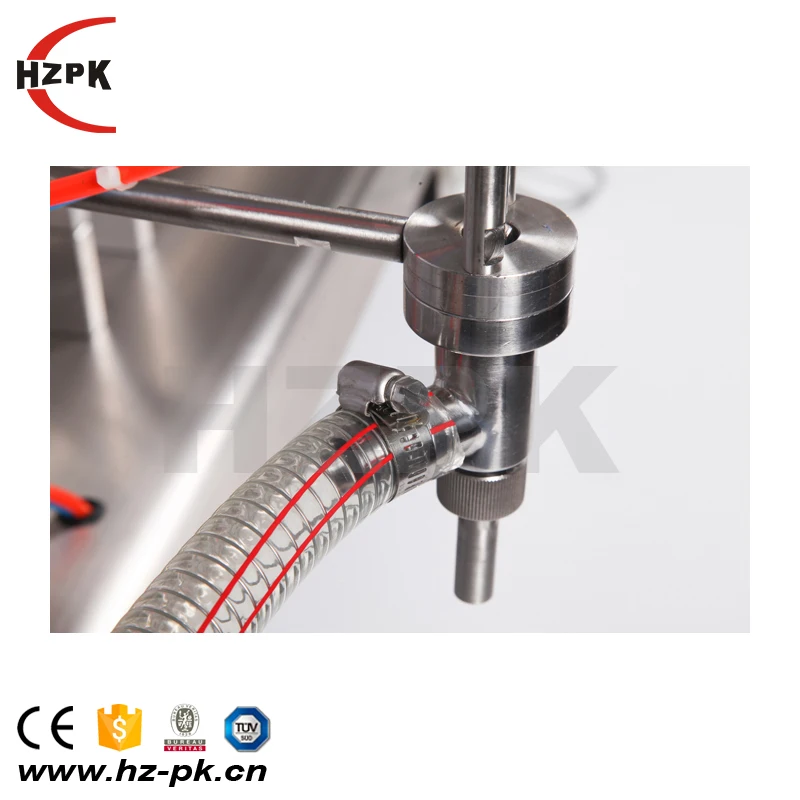

Stainless steel structure
Material contact position is 304 stainless steel

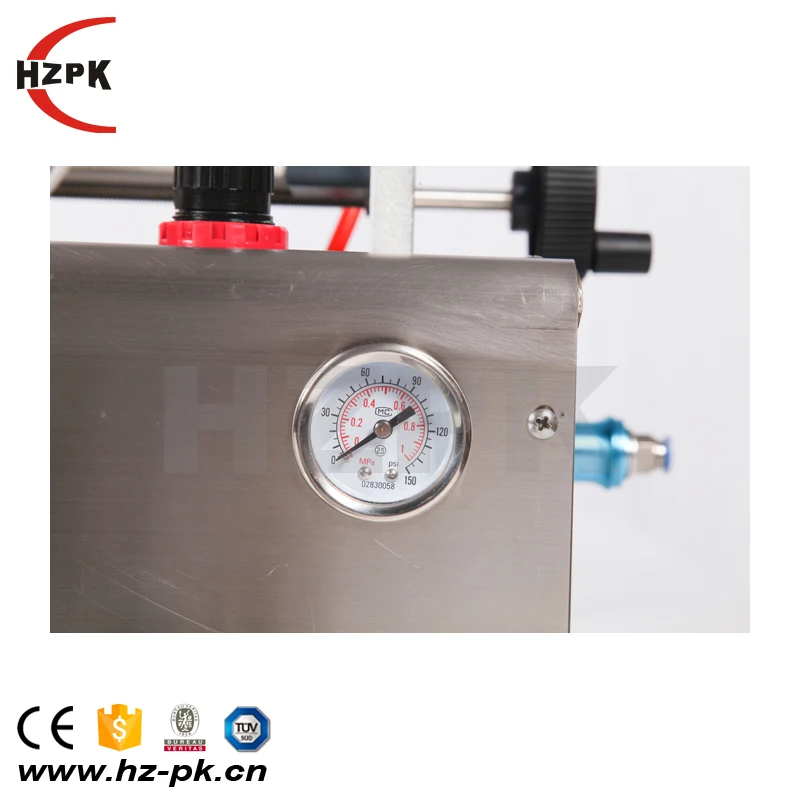

Control panel
Easy to clean and maintain
High quality cylinder
High precision
Stable work
Durable
Durable
Filling volume adjustment wheel
Simple and fast adjustment of filling volume
Related Products
Company Profile
Zhejiang Haizhou Packing Machine Co., Ltd. specializes in manufacturing packing machines and related materials.We supply Solid ink coding machine、Label machine , Piston filler , Auto filling capping labeling Line etc .
We own Professional Engineers, Aftersales Staff and a young strong Sales Teams.Based on "People Oriented, Leading Technology, Honest Management", we will offer you reliable products and best service.
Workshop
Laser Cutting
CNC Milling Machine
Pressure Forming
Assembly workshop
Packing And Shipping
Our Team
Exhibition
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and weprovide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, L/C paying methods. For those orders less than 500USD, we accept Trade Assurance to pay.
A: We accept T/T, L/C paying methods. For those orders less than 500USD, we accept Trade Assurance to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
A: For every model of machine, it has a CE certificate.
