SINOBAKE Compact Soft and Hard Biscuit Manufacturing Machine
- Category: >>>
- Supplier: Guangdong Shunde Huaji Machinery Industrial Co. Ltd.
Share on (472560534):
Product Overview
Description
Product Description

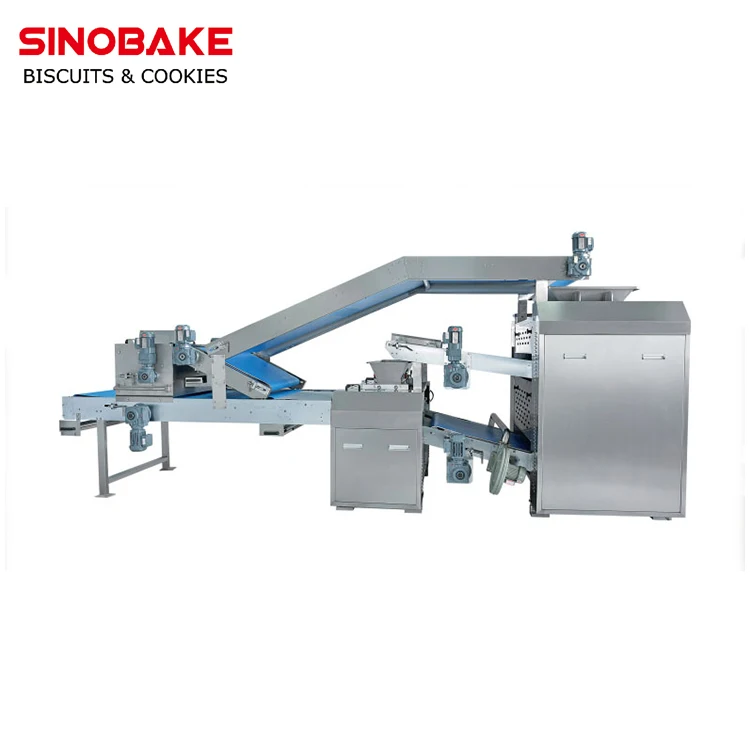

SINOBAKE Compact Soft and Hard Biscuit Manufacturing Machine
We provide flexible design solution for limited amount of space. The feeding roll, gauges roll in a vertical configuration, the rotary cutting and rotary moulding are combined in the same unit, this flexible design can make easy switching from soft dough to hard dough production and space saving. Even small forming
lines, the usual unique features of standard sheeting line are provided.
A whole line consists of:
1.Horizontal dough mixer 150kg/h
2.Tilting machine(option)
3.Auto dough feeding system(option)
4.Metal detector(option)
5.Four rolls sheeter
6.Gauge roller
7.Rotary cutter and moulder
8.Separating machine
9.Scrap return system
10.Enter oven machine
11.Oven drive and belt tension system
12.Oven(Gas,electric and diesel oven can be provided)
Length is depends on the capacity(capacity option:100-300kg/h)
13.Out-oven machine
14.180 degree plane turning conveyor(option)
15.Cooling conveyor
16.Star wheel stacker
17.Packing table
Working width(mm)&length of oven | Capacity(kg/h) | ||||||
400(15m) | 100- 150 | ||||||
600(15m) | 150-220 | ||||||
Above capacity data is only for reference. Capacity is influenced by many factors, like:recipe,baking time,baking temperature and so on.Above dates are just for reference. Pls let us know the capacity you need and your factory size to make a suitable solution for you.
Machine components:
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
1) AC Motors and gear box are imported brand SEW / SIEMENS
2) Industrial Bearings are Japanese brand NSK.
3) Cylinders are Korean brand YSC.
4) Electrical Units are French brand Schneider / SIEMENS.
5) Guarantee period of 12 months.
biscuit making machines main characteristics:
Horizontal dough mixer
Features: This type of mixer is suitable for both soft and hard biscuit dough.
For the compact line, usually 150kg/h dough mixer is ok.

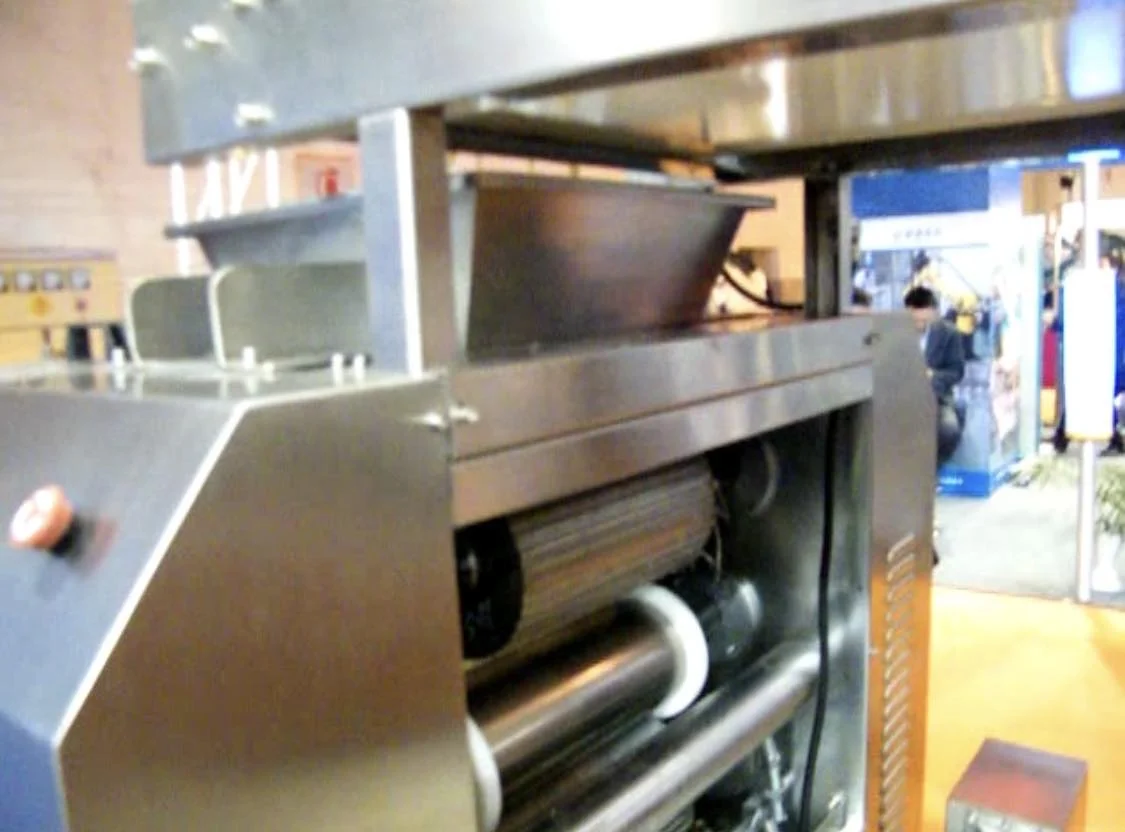

Four rolls sheeter
Designed for feeding and primary sheeting of hard biscuit dough.
1).SUS304 conveyor frame plate and supporting board.
1).SUS304 conveyor frame plate and supporting board.
2).SEW motor and speed reducer, frequency control of speed.
3).Emergency switch installed.
4).SCHNEIDER control apparatus.
5).NSK bearing.
4).SCHNEIDER control apparatus.
5).NSK bearing.

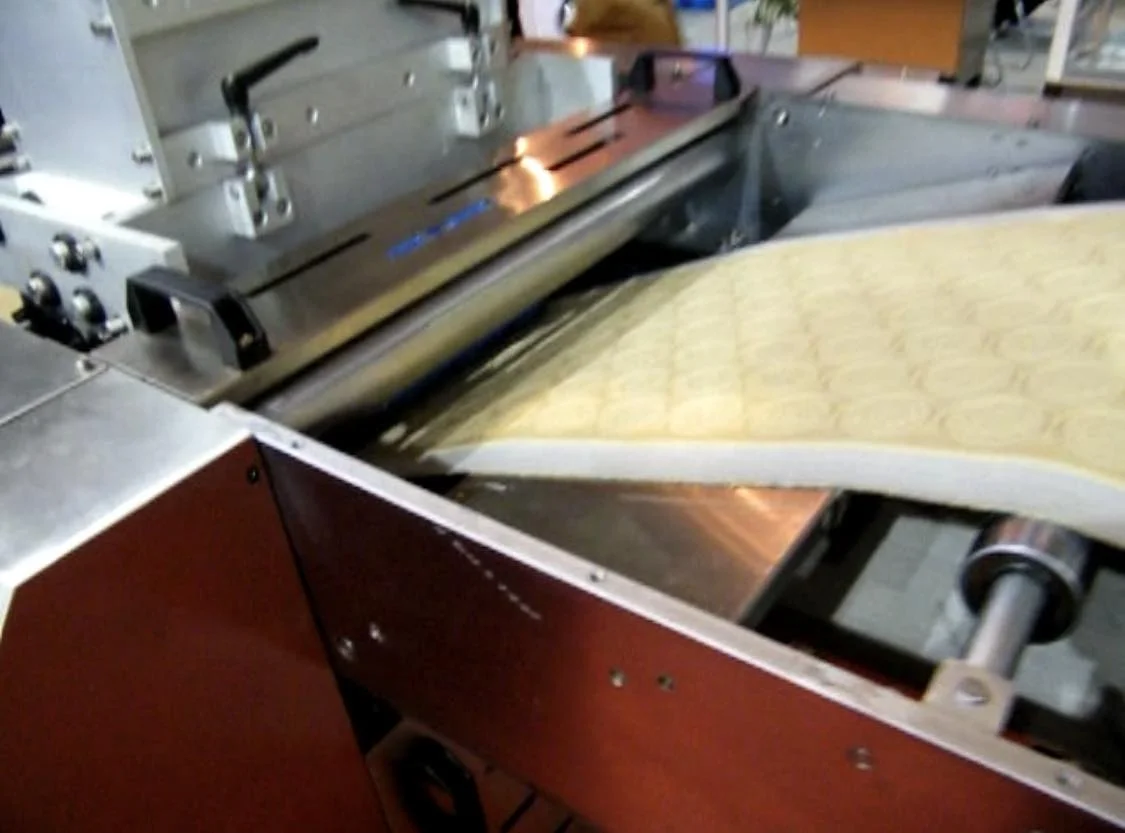

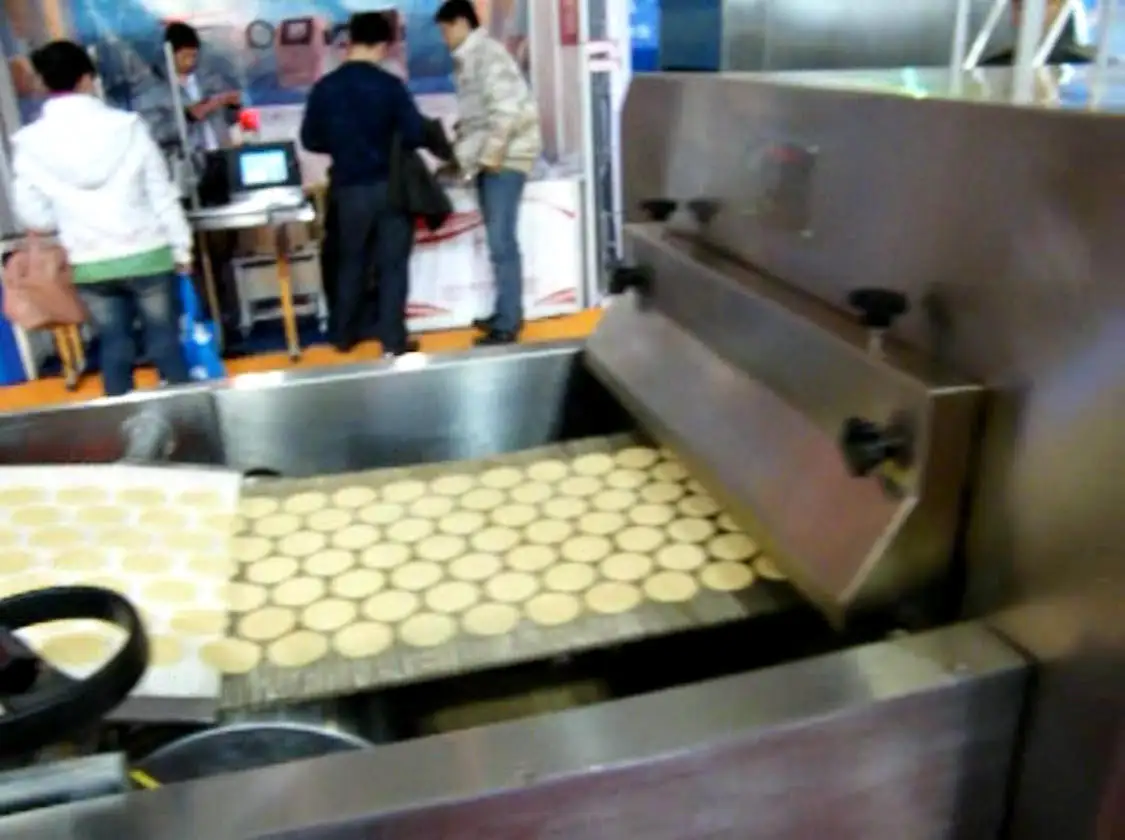

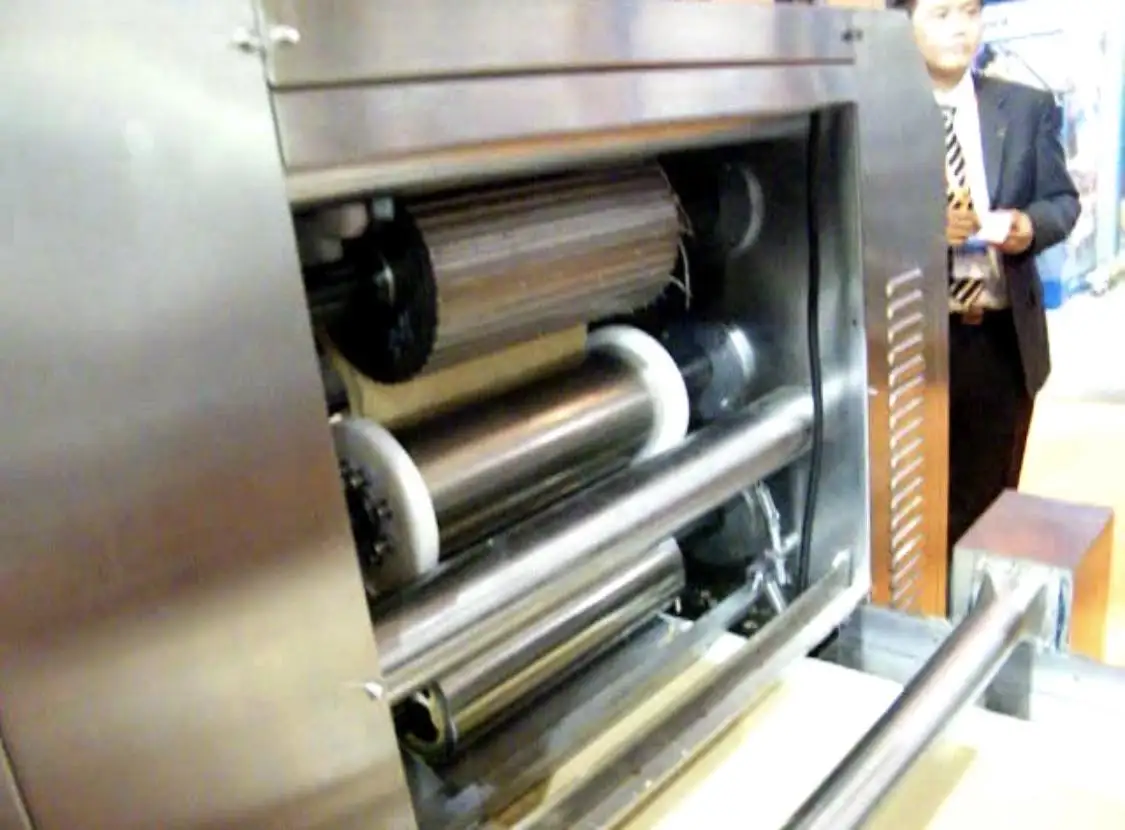

Rotary cutter and moulder
Designed for forming both soft and hard biscuit, with the changeable moulds.
1).Separated motors control the mould and conveyor belt.
1).Separated motors control the mould and conveyor belt.
2).Electric control for pressure of mould and rubber roll, manual adjusting scrape knife with cam.
3).SUS304 conveyor frame plate and supporting board.
4).SEW motor and speed reducer, frequency control of speed.
5).Emergency switch installed. 6).SCHNEIDER control apparatus. 7).NSK bearing.
5).Emergency switch installed. 6).SCHNEIDER control apparatus. 7).NSK bearing.

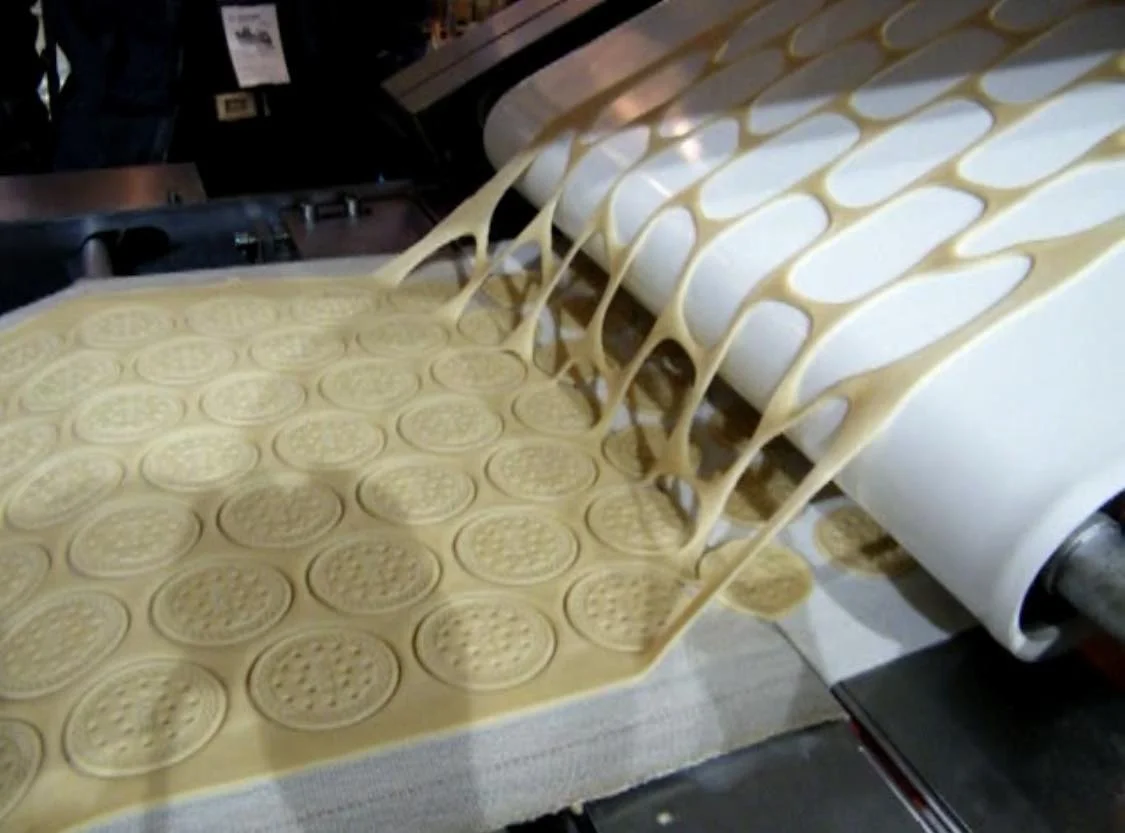

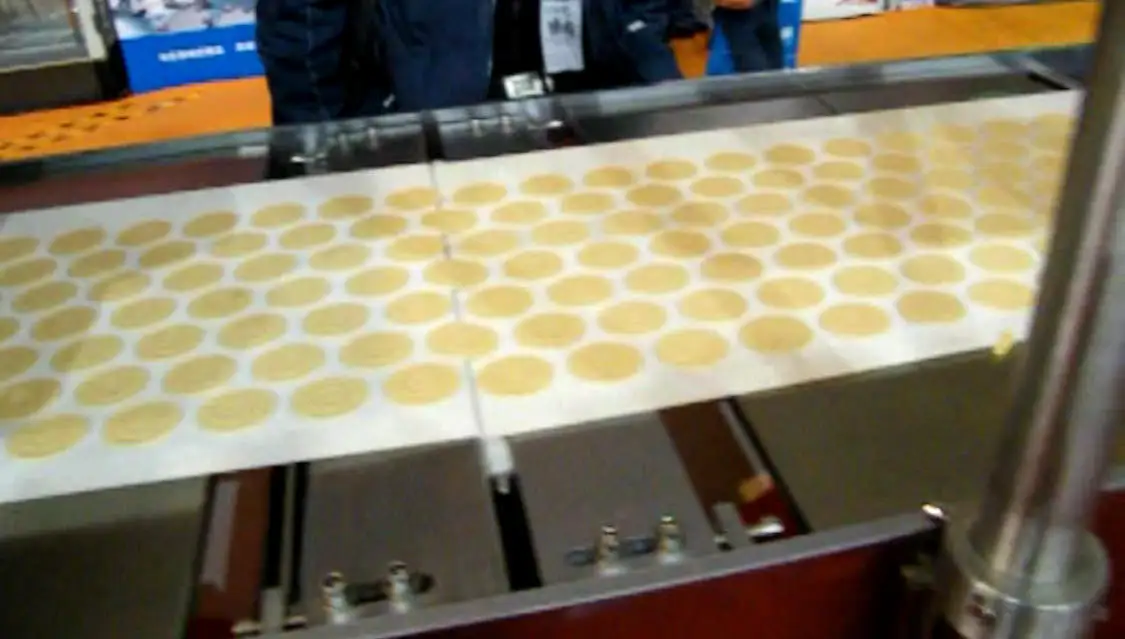

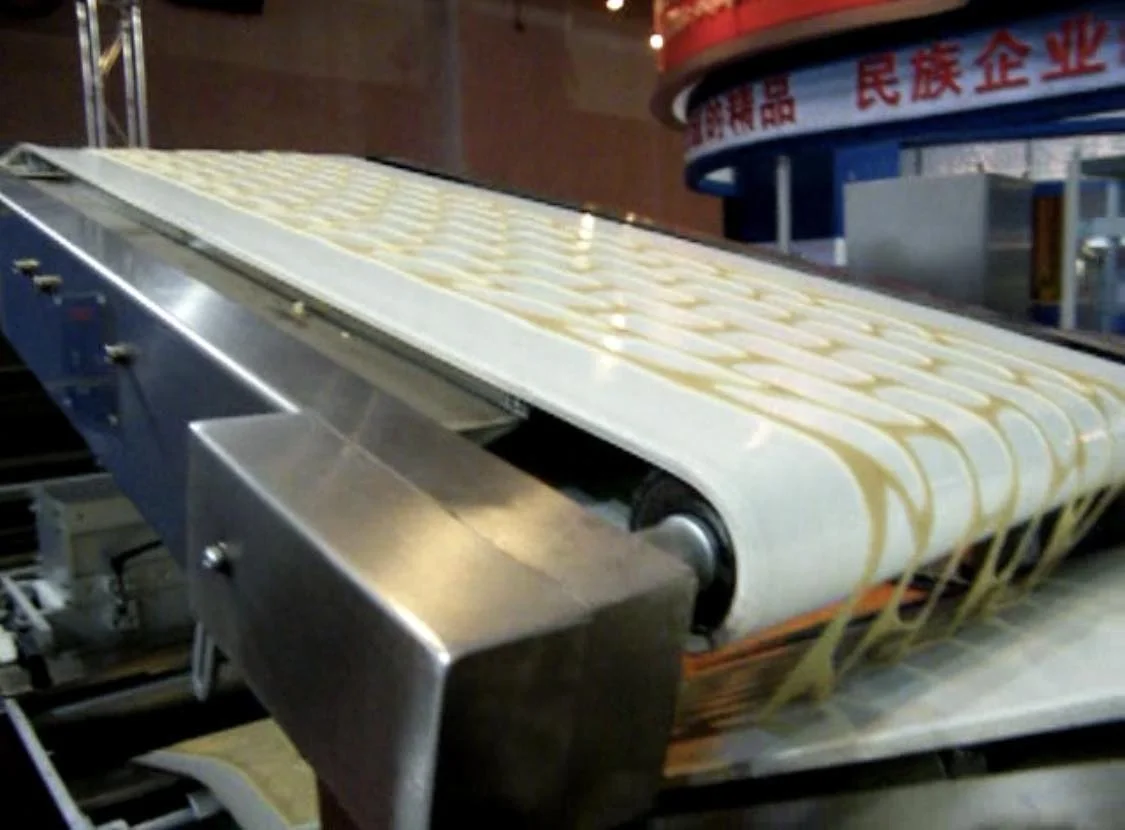

Separating machine
Designed for separating the unbaked biscuit and the scrap.
1).Independent motors for upper and lower conveyors.
2).SUS304 conveyor frame plate and supporting board.
3).SEW motor and speed reducer, frequency control of speed.
4).Emergency switch installed. 5).SCHNEIDER control apparatus. 6).NSK bearing.
3).SEW motor and speed reducer, frequency control of speed.
4).Emergency switch installed. 5).SCHNEIDER control apparatus. 6).NSK bearing.
Enter oven machine
Enter Oven Machine is used to send the formed biscuits into the oven, recycling the sugar, salt or reject biscuits.
1).Two sections of belt for recycling in each ends.
1).Two sections of belt for recycling in each ends.
2).SEW motor and speed reducer, frequency control of speed. 3).SCHNEIDER control apparatus. 4).NSK bearing.
Oven belt drive and tension machine
mainly provide motive power to oven belt,drive the mesh belt,the mesh belt can be tensioned and offset adjusted automatically. It has functions such as 1).mesh belt cleaning and
2).power cut automatic UPS device.

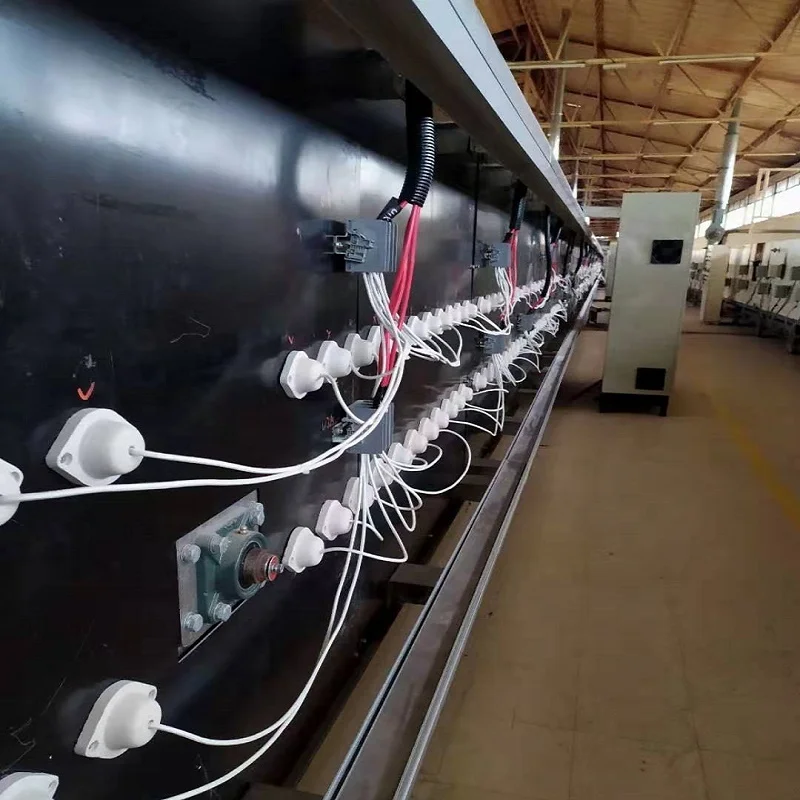

Tunnel oven
Gas,electrical and diesel ovens.can be chose – depending on your products.All ovens are pre-manufactured and supplied in
3meters per section or
each independent temperature zone has built up before shipment.
Out oven machine
it is used for conveying baked biscuit out of oven smoothly.
1).It has peeling device.
2).small roller smooth transition.
3).It has injection biscuit device.
Finished products

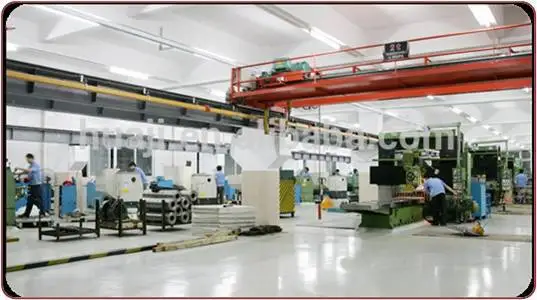

Company Introduction
SINOBAKE (Guangdong Shunde Huaji Machinery Industrial Co.,Ltd) has been supplying biscuit machine and process technology to biscuit industry since1994.We have been export our biscuit production lines and machines all over the world for more than 60 countries.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Thanks for the well professional staffs and engineers,with their experience and know-how we can meet your requirements when supply either single biscuit machines or complete production lines and the turn-key projects.Our company operates the production and assembly in strict compliance with ISO 9001 and CE standards to provide reliable and safety products for customers all over the world.
Our Services & Strength
(1)We have more than 26 year's experence in manufacturing food processing machine.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
(2)Professional technical team,Company own's research and development team ,Top quality ,Reasonable price,Timely delivery and first-class service.
FAQ
1.Are you manufacturer?
Yes, we are professional biscuit and cookie machinery manufacturer. We have professional engineers and manufacturing technologist to help you make a suitable solution.
2.Why SINOBAKE can do better than other factories?
Our company specialize in this industry for 26 years. Quality first is our tenet. We study Europe technology and improve our machinery. We provide the best service for all of clients. We do long-term cooperation with our clients.
3.How is the package?
We pack almost all machines with plywood,except oven.
4.How is the delivery time?
It depends on the line you purchased. Normally for whole 1000mm model soft and hard biscuit production line, the delivery time is within 120 working days. If you purchase single/stand-alone machine, we need to check if it's in stock first. Pls contact us to know the detailed time.
5.How is the installation and commissioning?
Supervision of Installation and commissioning work will be carried out by technical staff together with the technical staff from Huaji Industrial Co, Ltd ; the buyer will provide round-trip tickets, food and hotel for about 2 to 3 technical persons. The buyer will pay each technician 100USD per day as installation fee.
