NDS3348 catv Modulator 48 channels IP QAM Modulator
Product Description
Product Overview
NDS3348D IP QAM modulator is Mux-scrambling-modulating all-in-one device developed by DEXIN. It has 48 multiplexing channels, 12 scrambling channels and 48 QAM (DVB-C) modulating channels, and supports maximum 1536 IP input through the 3 GE ports and 48 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers
Key Features
Max 1536 IP input thru 3 GE ports (SFP interface optional)
Up to 512 PIDs remapping per output channel
Supports 6 simulcrypt CAs and 12 scrambling channels
48 IP out over UDP/RTP/RTSP: IP 1~24 out thru Data1, IP 25~48 out thru Data2
48 non-adjacent QAM carriers output: carrier 1~24 out thru RF1, carrier 25~48out thru RF2
Supports RS (204,188) encoding
Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
Web-based Network management

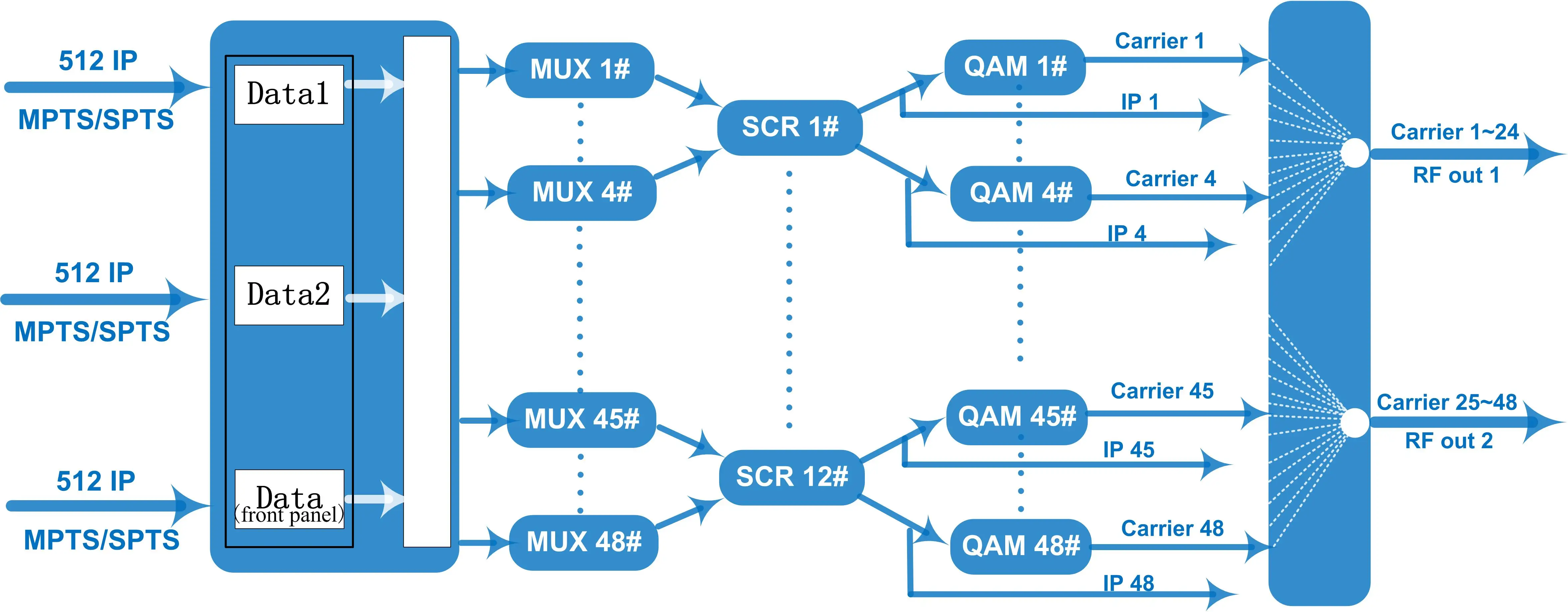

Inner Principle Chart

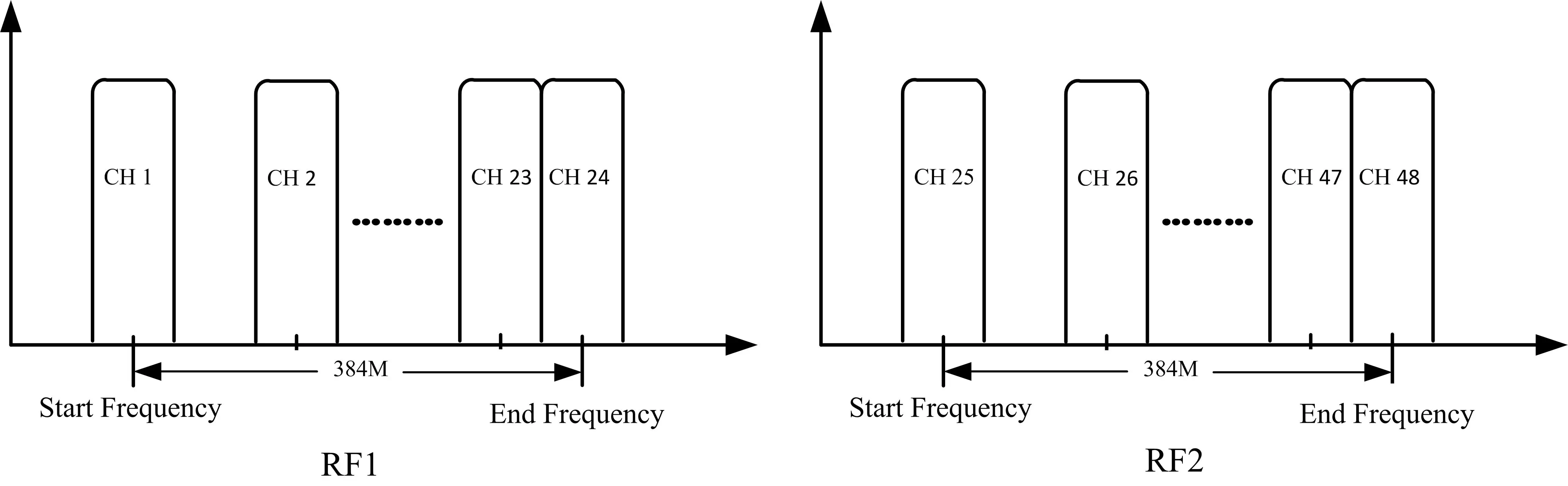

Carrier Setting Illustration
Specifications
Input | Input | Max 1536 IP in thru 3 GE ports [Data 1 & Data 2 bi-directional ports, Data port (located on front panel), each port can input max 512 IP] 100/1000M self-adaption Ethernet Port (SFP interface optional) | |||
Transport Protocol | TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | ||||
Transmission Rate | Max 840Mbps for each GE input | ||||
Mux | Input Channel | 1536 | |||
Output Channel | 48 | ||||
Max PIDs Remapping | 512 per output channel | ||||
Functions | PID remapping (auto/manually optional) | ||||
PCR accurate adjusting | |||||
PSI/SI table automatically generating | |||||
Scrambling Parameters | Max simulcrypt CA | 6 | |||
Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||||
Scramble Channel | 12 | ||||
Connection | Local/remote connection | ||||
Modulation Parameters | DVB-C Modulator Sectioon | J.83A | Constellation :16/32/64/128/256QAM | ||
Bandwidth :8M | |||||
J.83B/C | Constellation :64/256QAM | ||||
Bandwidth :6M | |||||
QAM Channel | 48 non-adjacent carrier | ||||
Modulation Standard | EN300 429/ITU-T J.83A/B | ||||
Symbol Rate | 3600~7000Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM) 5361Ksps (J.83B, 256QAM) | ||||
Constellation | 16, 32, 64 , 128, 256QAM | ||||
FEC | RS (204, 188) | ||||
RF Output | Interface | 2 F type output ports for 48 carriers, 75Ω Carrier 1~24 out thru RF1, 25~48 thru RF2 | |||
RF Range | 50~960MHz, 1kHz stepping | ||||
Output Level | -20dBm~+10dBm(87~117dbµV), 0.1dB stepping | ||||
MER | ≥ 40dB | ||||
TS output | 48 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M self-adaption, Ethernet Ports (SFP). IP 1~24 out thru Data1, IP 25~48 out thru Data2. | ||||
System | Network management software (NMS) supporting | ||||
General | Demission | 420mm×440mm×44.5mm (WxLxH) | |||
Weight | 3kg | ||||
Temperature | 0~45℃(operation), -20~80℃(storage) | ||||
Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||||
Consumption | 15.4W | ||||
