20 ton ice making machine for Slaughtering processing
- Category: >>>
- Supplier: Shenzhen Iceups Refrigeration Equipment Co. Ltd.
Share on (472930523):
Product Overview
Description

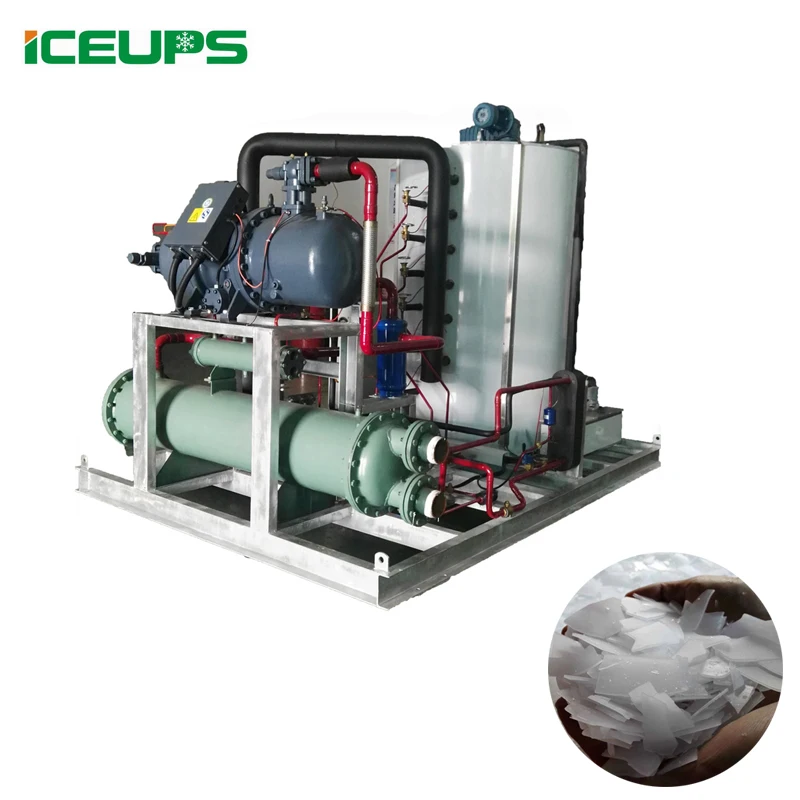

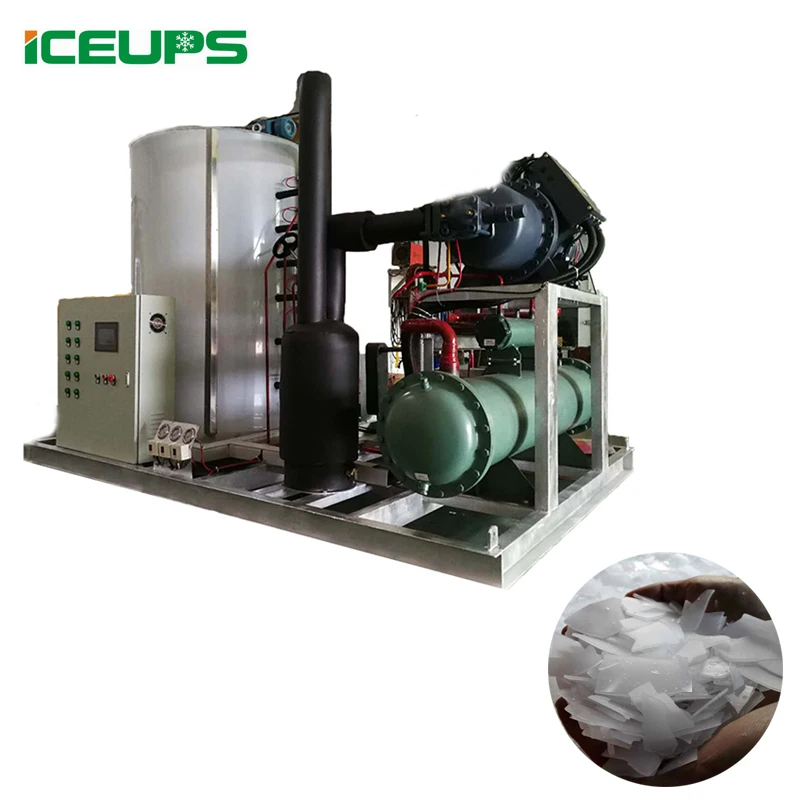

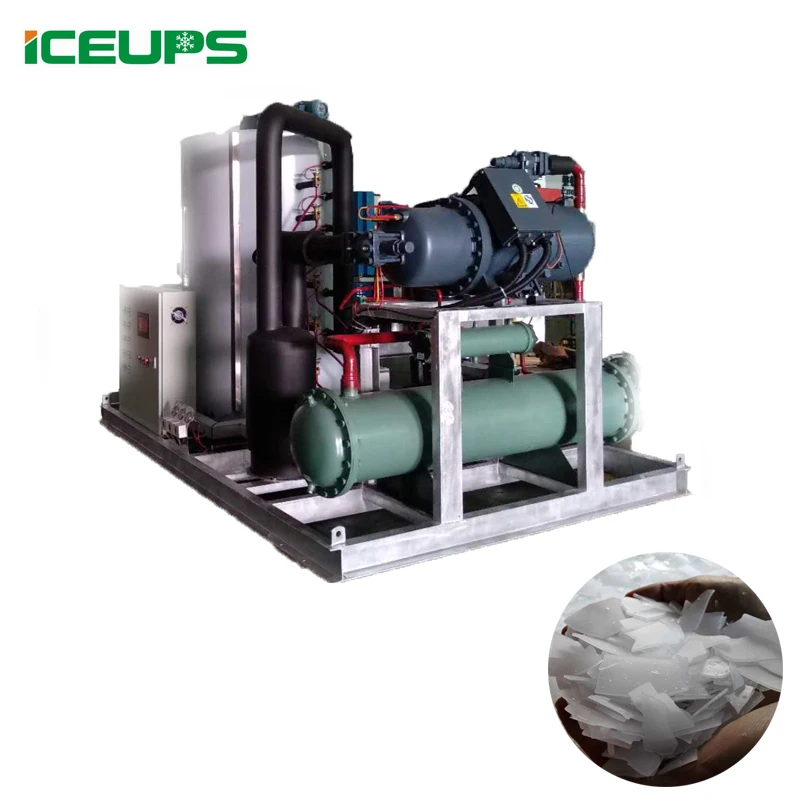

20 ton ice making machine for Slaughtering processing
Product Description
High Quality Flake Ice
The flake ice is dry, pure, clean, not easy to block, thickness is about 1.5mm--2.2mm, without sharp edges
or corners which would avoid damage to products. So it is widely used in refreshing vegetable/fruit and freezing fish and meat, and other field like slaughter processing, fishing, concrete cooling etc.

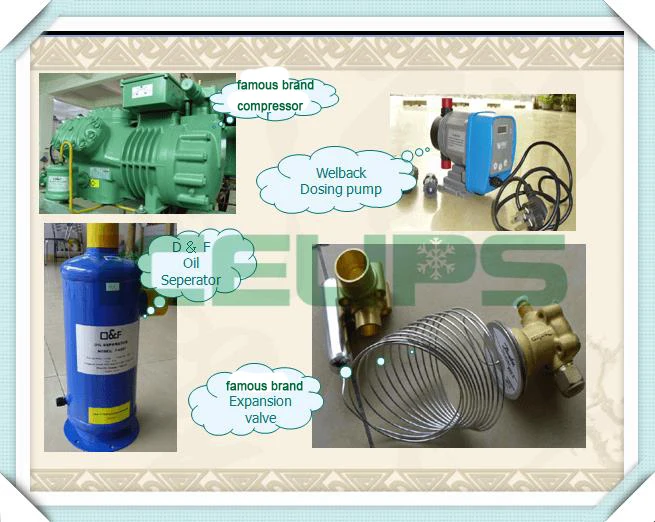

Main Refrigeration Parts are all use international Famouse brand.
Main configuration list:
| NO. | Component name | Brand name | Country |
1 | Compressor | World famous brand | Germany/Taiwan |
| 2 | Refrigeration parts | World famous brand | Danmark |
| 3 | Ice Drum(Evaporator) | ICEUPS | Shenzhen |
| 4 | Water cooling condenser | Jiangche | Wuhan |
| 5 | Electrical components | World famous brand | France/Sounth Korea |
| 6 | PLC controller | World famous brand | Germany |
Ingelligent Control system (PLC + Touch Screen)
Configuration explanation:
1) Actual ice-making capacity will be changed according to variance of water as well as the chiller power and the working enviroment and dosing temperature.
2) Referance power supply is dynamice electricity with 380v /50HZ, however, If necessary, It can be changed into 60hz/220v/200v/440v/400v/415V/480V according to different requirement of clients.
3) If you have any demand for the refrigerant agent, we can supply as your requested, however, you should inform us in advance .
4) If you have any other special request, please inform in advance, we will give our best advice and try our best to meet with your request.
Warranty:
12 Months after B/L date. Any failure occurred within the period due to our responsibility, we’ll supply you the spare parts for free, and permanent technical support & consultation all life long for the machines.
Flake ice application fields:
Aquatic products processing
Meat processing
Fishery industry
Long range fishing
Vegetable preservation
Supermarket or other commercial usage
Cold storage project
Temperature reduction project
Artificial snow ice skating rink
Slaughter processing
Concrete cooling
and more.
Application Case:
Company Information
Foreign customers visiting
Packaging & Shipping
Packing and shippping:
FAQ
