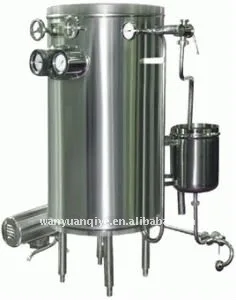

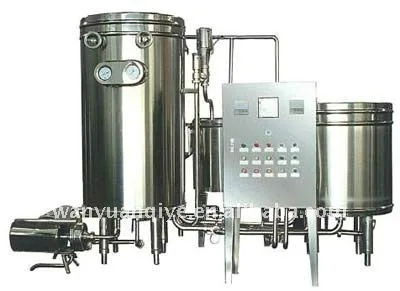

UHT Ultra high temperature instantaneous sterilizer

Product Overview

Description

115 Celsius degree UHT Instant sterilizer machine / milk high temperature pasteurizer



1.milk,fruit juisce,short time sterilizer.
2. UHT Instant Sterilizer
3. UHT Instant Autoclave ~ milk uht sterilizer

Detailed Description

High Efficient UHT Instant Autoclave has many advantages such as cannula heat exchanger, high regenerative effect, low energy consumption and easy to operate. The objective was to design a system where a little nutrition losses can be achieved using very short run-time for products .It has been widely used to handle liquid product such as fresh milk, sauce, beverages, liquors, soybean milk and liquid medicine.



Merits

1. small size;
2. simple structure;
3. heat transfer efficiency;
4. heat recovery high;
5. easy disassembly,etc



Description
This UHT sterilization equipment is mainly used to sterilize soy milk, fresh milk, juice, beverage and wine, etc. It has a compact and reasonable instruction and is the ideal sterilization equipment for small factories.
Parameters:
Production Capacity: 500L--2000L / H	Sterilization Temperature: 115--1370C
Steam Pressure:     0.78 MPa(8kgf/cm²)	High Temperature Heating Period: 3s--5s
Outing Material Tem: 450C	Steam Consumption: 0.15 kg/L material
Motor Power:  1KW--3KW centrifugal pump	Net Weight:         480 kg
