Product Overview

Description

thin client X300 nstation  mustation net  computer pc station ,It Share 1 PC with up to 10 users,support full screen video movie

Hot Keywords:

net  computer pc station thin client computing pc station X300,net  computer pc station,school pc station,net pc station,Ncomputing X300/ PC Station / Thin Client / Net Compute / PC sharer / PC terminal

It Share 1 PC with up to 10 users,support full screen video and movies, virtual desktops Deliver the best multimedia performance at the lowest cost.Power to the access devices is provided by the PCI card through the cable



Ncomputing X300 Multi-user Kit Datasheet



Hardware
Size	Access Device:  110*65 *28 mm PCI Card:  Low profile PCI plug-in card (includes standard and low profile PCI bracket)      Shipping Size: 251*205*68mm
Weight	X300 Access Terminal: 100g                                 Shipping Weight (includes power adapter, packaging, documentation, etc. ): 560g

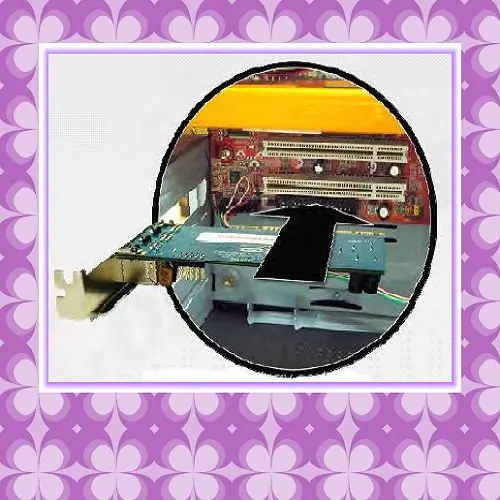

Power Supply	No external power adapters are required Power to the access devices is provided by the PCI card through the cable
LED Indicator	Power/Connection: Green LED located on front of access device
Peripheral Connections		01 – Speaker Output 02 – Keyboard Port 03 – Mouse Port 04 – Video port 05 – ETHERNET
Connection to Host PC	Standard Category 5 or 5e UTP cable:  up to 5 meters (16 feet)
Video Resolution	800x600 and 1024x768, 16-bit color maximum, 60 Hz refresh rate.
Audio	Stereo output via speaker port
Data Security	No USB ports on access device ensure absolute data security USB ports on host PC can be assigned to different users Note:  Local user access to USB ports requires separate USB extension cables -- not included
Reliability (MTBF)	>100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40°C)
TERMINAL SERVICES SOFTWARE
Max # Users Per PC	Each X300 kit adds 3 users to a host PC. A maximum of two kits can be used with one PC to geta total of 9 users (3 for each kit plus 1 on the host)
User Software	Terminal services software
Supported Operating Systems	Microsoft Windows XP professional SP1/SP2 and Linux
SYSTEM REQUIREMENTS AND OPTIONS

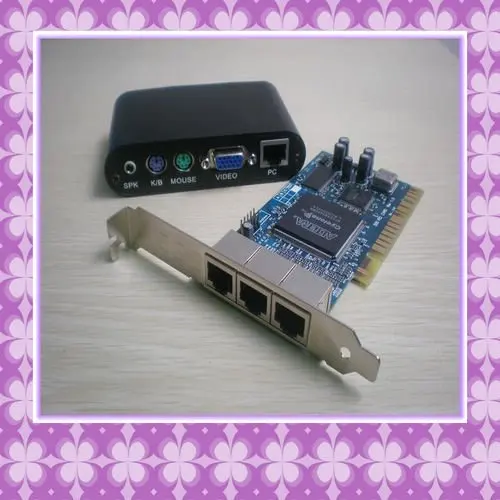

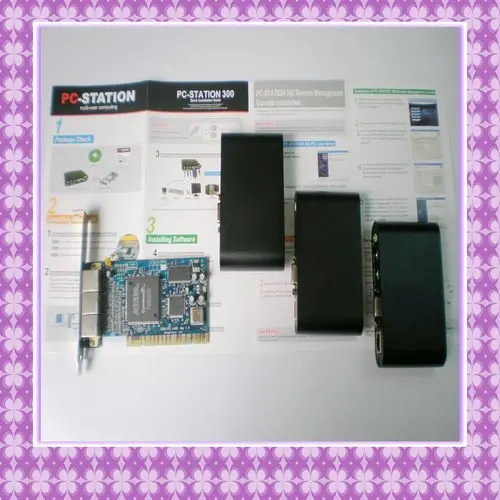

Kit Contents	One X300 Kit includes three (3) access devices, one PCI card, Terminal services software installation CD, and Quick Installation Guide.

1. The number of users on individual host will depend upon the host system capabilities as well as the applications used and performance expectations for those applications. It is recommended that new customers test their application(s) before adding additional users.
2. Does not support 3D games.
3. Application software and OS licenses for the host PC may be required by the respective software vendor and must be purchased separately.



X300 Key Points

• NCT-XP-2000 multi user software
• Up to 9 users
• Includes 3 terminals& 1 PCI card
• Full screen video supported ( not freezing)
• PS/2 mouse, keyboard
• No USB ports on access device ensure absolute data security
• No external power adapters are required
• Power to the access devices is provided by the PCI card through the cable
• Standard Category 5 or 5e UTP cable:  up to 5 meters (16 feet)
• 800x600 and 1024x768, 16-bit color maximum, 60 Hz refresh rate
• A maximum of two kits can be used with one PC to get a total of 7 users (3 for each kit plus 1 on the host)
• Supported OS
• Microsoft Windows XP professional SP1/SP2 and Linux
• Kit Three access devices, one PCI card, Terminal services software installation CD, and Quick Installation Guide
