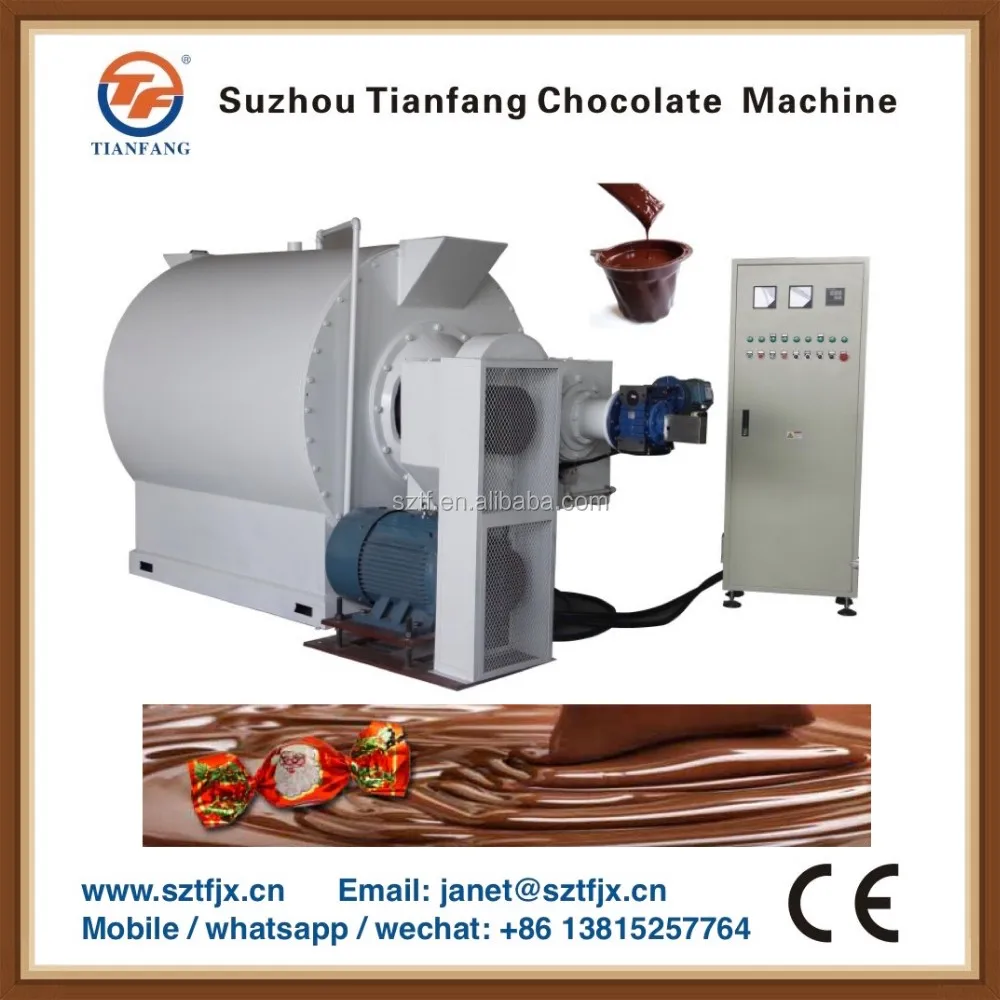

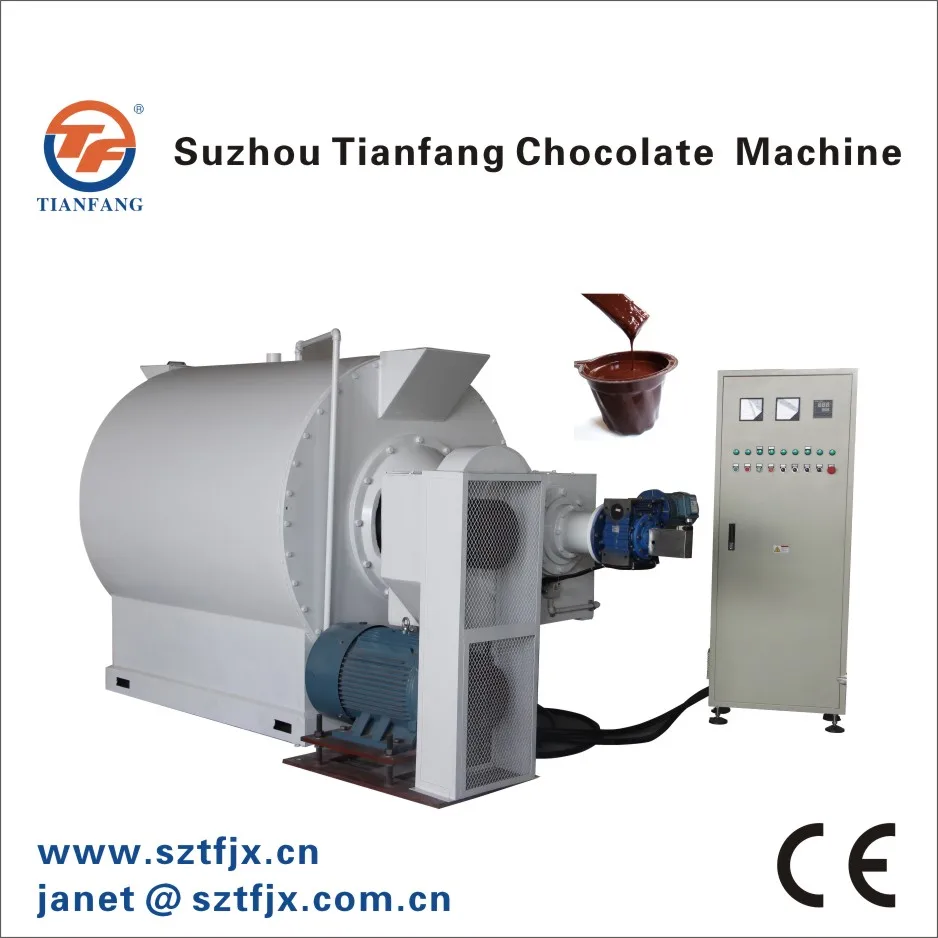

TJMJ3000 chocolate making machinery
- Category: >>>
- Supplier: Suzhou Tianfang Machinery Co. Ltd.
Share on (474170875):
Product Overview
Description
Product Description
USE:
1).The chocolate conche machine is one of the major chocolate machine in the chocolate production line which are used for the fine grinding of chocolate material.
2).The fine grinding time is about 18~24 hours for 3000 litre chocolate, the average granularity can achieve 20μm to 25μm .
3).This chocolate machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.
4).It is suitable especially for the technical request of medium chocolate and candy factory.
Main Parameter:
Model: TJMJ3000
Maximum capacity: 3000 Liter
Fine grinding grain: 20-25μm
Fine grinding time: 18-24 hour
Rotation speed of main shaft: 33 round per minute
Motor power: 55kw
Power of electric heater: 6kw
Net weight: 7000kg
Gross weight: 7500kg
Outside dimension: 3700*1900*2150mm
Electric motor tightens grinding pressure.
chocolate machinery
There are various types of chocolate conche machine as follows:
Model of machine | Maximum capacity (L) | Size of final chocolate (μm) | Fine grinding time | Overall power | Net weight(kg) | Outside dimension |
TJMJ3000 | 3000 | 20-25 | 18-24 | 55 | 7000 | 3700*1900*2150 |
TJMJ2000 | 2000 | 20-25 | 18-24 | 37 | 5300 | 3000*1900*1750 |
TJMJ1000 | 1000 | 20-25 | 14-20 | 22 | 4100 | 2970*1320*1790 |
TJMJ500 | 500 | 20-25 | 14-20 | 11 | 3000 | 2000*1860*1250 |
TJMJ40 | 40 | 20-25 | 7-9 | 2.2 | 360 | 1000*800*800 |
Packaging & Shipping
1. Strong seaworthy wooden package.
2. Protection against humidity.
3. Skilled capability of delivery to your country.
Guarantee & After-Sales Services
1. One-year guarantee period for complete machine.
2. Free charge of accessories within guarantee period excluding false operation.
3. Free charge of layout design, instruction with details, installation guide and local team training.
4. Experienced engineer is available to set up the machines upon request.
5. 24 hours technical support service by email and mobile.
