Yuton C6 48A China Manufacture Durable Workshop Industrial Exhaust Centrifugal blower Ventilation fan
- Category: >>>
- Supplier: Guangdong Gaoze Ventilation Equipment Co. Ltd.
Share on (474582956):
Product Overview
Description
Headers
Product Description

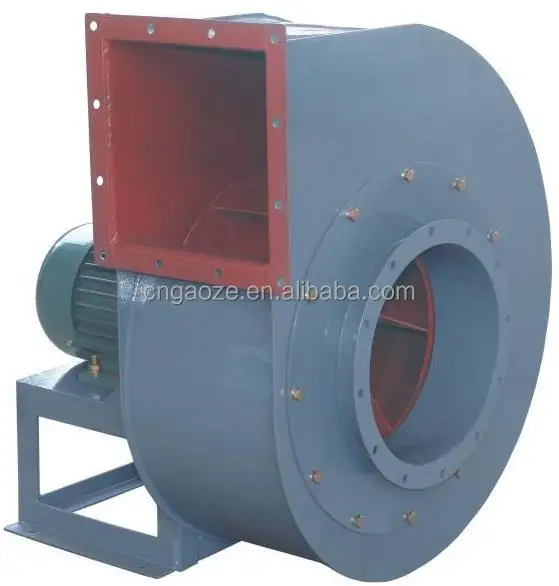

C6-46-A China Manufacture Durable Workshop Industrial Exhaust Centrifugal blower Ventilator
Application:
Applies to the distribute air-mixed materials,such as wood fragment,fiber and dusty oil.
Features:
1)low noise,high efficiency, huge airflow
2)strong cast iron fan of body and impeller with powder coating
3)IP44 motor with cast iron body and pure copper wire
4)good looking surface,long working life and stable performance
5) direct driving & belt driving for option
Payment terms:
T/T or L/C, 30% deposit in advance, the balance shoudl be paid before shiping.
Delivery time:
20 days for one container after receipt deposit.
Direct driving
|
Model |
Impeller Diameter |
Power (kw) |
Revolution (rpm) |
Wind Flow (M3/h) |
Pressure (Pa) |
|
2.8 |
280mm |
2.2 |
2900 |
1065-2450 |
1283-1087 |
|
3 |
300mm |
3 |
2900 |
1183-2891 |
1452-1205 |
|
4 |
400mm |
2.2 |
1450 |
1404-3420 |
67-568 |
|
5 |
500mm |
5.5 |
1450 |
2733-11550 |
1117-931 |
|
6 |
600m |
7.5 |
1450 |
4725-11552 |
1607-1343 |
|
3 |
960 |
3130-7045 |
706-598 |
Belt Driving
| Model (No.) | Impeller Diameter | Voltage | Power | Revolution | Air Flow | Pressure |
| (V) | (KW) | (rpm) | (m3/h) | Pa | ||
| 3.15C | 315mm | 380/50Hz | 3 | 3150 | 3017-3323 | 1507-1376 |
| 380/50Hz | 2.2 | 2800 | 1487-2711 | 1880-1615 | ||
| 380/50Hz | 1.5 | 2500 | 1322-2138 | 1483-1344 | ||
| 380/50Hz | 1.1 | 2240 | 1180-1908 | 1181-1070 | ||
| 380/50Hz | 0.75 | 2000 | 944-2110 | 948-694 | ||
| 4C | 400mm | 380/50Hz | 4 | 2500 | 3932-5495 | 1737-1384 |
| 380/50Hz | 3 | 2500 | 2369-3411 | 1933-1810 | ||
| 380/50Hz | 2.2 | 2240 | 2133-2589 | 1550-1505 | ||
| 380/50Hz | 1.5 | 1800 | 1705-3957 | 999-716 | ||
| 380/50Hz | 1.1 | 1600 | 1516-2850 | 789-672 | ||
| 380/50Hz | 0.75 | 1400 | 1326-3077 | 603-433 | ||
| 5C | 500mm | 380/50Hz | 7.5 | 2000 | 7783-8623 | 1521-1381 |
| 380/50Hz | 5.5 | 2000 | 3553-6958 | 1953-1647 | ||
| 380/50Hz | 4 | 1800 | 2198-6262 | 1580-1332 | ||
| 380/50Hz | 3 | 1600 | 2842-6899 | 1247-882 | ||
| 380/50Hz | 2.2 | 1400 | 2487-6036 | 954-675 | ||
| 380/50Hz | 1.5 | 1250 | 2221-4349 | 760-641 | ||
| 380/50Hz | 1.1 | 1120 | 1990-3896 | 610-514 | ||
| 380/50Hz | 0.75 | 1000 | 1776-3053 | 486-436 | ||
| 6.3C | 630mm | 380/50Hz | 7.5 | 1600 | 5686-8233 | 1985-1866 |
| 380/50Hz | 11 | 1600 | 9713-13799 | 1782-1403 | ||
| 380/50Hz | 5.5 | 1400 | 4975-8499 | 1517-1362 | ||
| 380/50Hz | 4 | 1250 | 4442-7588 | 1208-1085 | ||
| 380/50Hz | 3 | 1120 | 3980-7794 | 969-588 | ||
| 380/50Hz | 2.2 | 1000 | 3554-6071 | 772-693 | ||
| 380/50Hz | 1.5 | 900 | 3198-4631 | 626-818 | ||
| 380/50Hz | 1.1 | 800 | 2843-4116 | 494-464 | ||
| 8C | 800mm | 380/50Hz | 15 | 1250 | 9096-22075 | 1953-1381 |
| 380/50Hz | 11 | 1120 | 11799-19776 | 1472-1108 | ||
| 380/50Hz | 7.5 | 1000 | 8150-9763 | 1566-1526 | ||
| 380/50Hz | 5.5 | 900 | 6549-12824 | 1009-851 | ||
| 380/50Hz | 3 | 800 | 5821-8429 | 797-749 | ||
| 380/50Hz | 4 | 800 | 9944-14128 | 716-564 | ||
| 380/50Hz | 2.2 | 630 | 8584-11126 | 494-350 | ||
| 10C | 1000mm | 380/50Hz | 18.5 | 1000 | 14804-22057 | 2043-1900 |
| 380/50Hz | 22 | 1000 | 25610-36417 | 1787-1381 | ||
| 380/50Hz | 15 | 900 | 13323-23049 | 1653-1445 | ||
| 380/50Hz | 11 | 800 | 11843-23331 | 1297-1065 | ||
| 380/50Hz | 7.5 | 710 | 10510-20706 | 1026-838 | ||
| 380/50Hz | 5.5 | 630 | 9327-18373 | 807-659 | ||
| 380/50Hz | 4 | 560 | 8290-16331 | 638-521 |
Our Services
1. Warranty: one year warranty for all products.
2. Products Quality: 100% goods inspection before dispatch.
3. Delivery time: a timely delivery, normally 30% days
FAQ
|
QUESTION AND ANSWER
Q: What information do you need to provide before get a quotation?
A: Generally, size, voltage, frequency, pressure, airflow of the fans, it is good for us to choose right fan for you and offer you a good quotation.
Q: Can I have sample for testing before order products?
A: Yes, of course, we sincerely suggest that customers buy sample to learn the quality first.
Q: Can I have discount for the quoted price?
A: Yes, bust should tell us ahead the quantity you would place to order, so that we can provide you with the best price.
Q: What is the warranty of products?
A: All of our products have 1 year warranty |
