Product Overview

Description

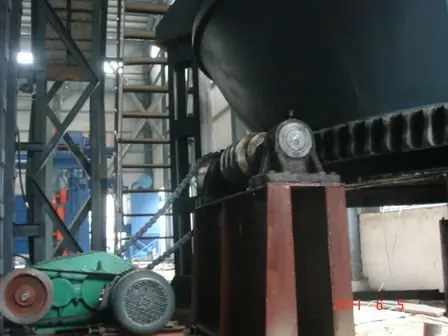

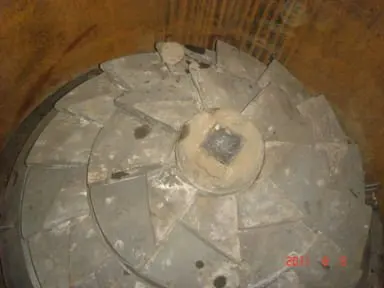

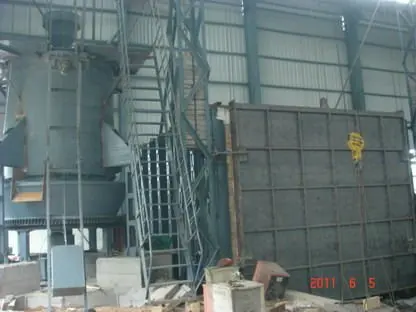

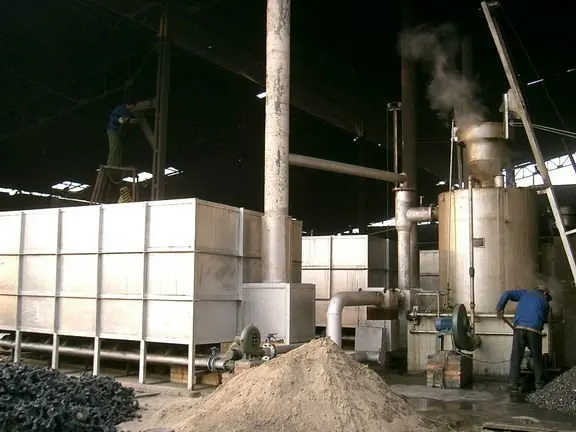

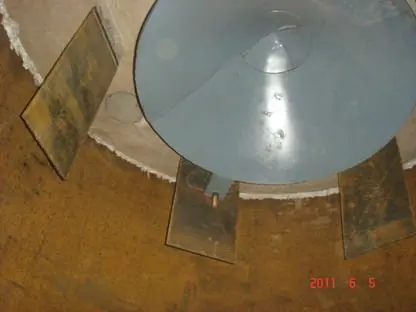

coal gasifier 3coal gasifier 4coal gasifier 2gratecoal distributorcinder discharging drive

Hot Gas Coal Gasifier for Industrial Heating furnace

The coal gasifier  inner diameter ranges from 800mm  to 3600mm and above, both single stage / double stage gasifier, and  hot gas plant / cold gas plant.  we are eading company specialized in the producting and exporting  coal gasifier.

Type

CG3Q2.0-1

CG3Q2.6-1

CG3Q3.0-1

CG3Q3.2-1

Diameter of chamber

(mm)

2000

2600

3000

3200

Chamber cross-section area

(m2)

3.14

5.31

7.07

8.04

Heat perception area of water jacket

(m2)

11.69

15.19

17.53

18.7

Applicalbe coal

Non-caking or weak-caking coal. Only can use coal and carbon

Coal size

(mm)

20-40, 25-50, 30-60

Coal consumption

(kg/h)

800-900

1200-1500

2000-2200

2200-2600

Air consumption

(m3/kg)

2.0-2.5

2.0-2.5

2.0-2.5

2.0-2.5

Steam consumption

(m3/kg)

0.3-0.5

0.3-0.5

0.3-0.5

0.3-0.5

Gas output

(m3/h)

2500-2800

4000-5000

5500-6800

6300-7800

Net heating value(KJ/m3)

(Distillation stage)

(Gasifying stage)

6060-6270

6060-6270

6060-6270

6060-6270

7110-7350

7110-7350

7110-7350

7110-7350

5225-5434

5225-5434

5225-5434

5225-5434
