Ice Flaker Generator

Product Overview

Description

Ice Flaker Generator



Introduction:

The range of ice making capacity is from 500kg/day to 50T/day, evaporator is an insulated double wall stationary cylinder mounted in vertical position. Water is pumped into the top tray and distributed inner surface in a continuous water curtain, then is will be frozen by the low temperature refrigerant between the cylinder walls, the evaporator is of the direct expansion type, at lat the ice knife removes the ice from the wall without touching the inside surface of the cylinder.

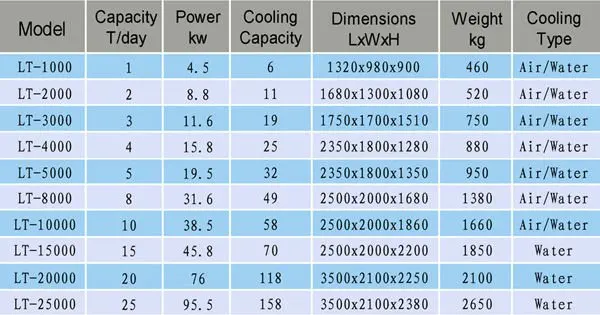

Specifications:

1. Capacity:  1 to 25T/day.
2. Fresh water or salt watre.
3. Flake ice thickness:   1.5 - 2.5mm.
4. Cooling Type:   Water cooled/ Air cooled.
5. Refrigerant:   R22/R404a.
6.  Compressor :   Btizer/Copeland
7. Feel free to contact us to get more details, sky-pe:refriend1018.
