2012 new CD DVD PC waste plastic recycling machine

Product Overview

Description

PC Recycling

We WILL PROVIDE TECHNICAL SUPPORT FOR ALL LIFE TIME WITH OVER 18 YEARS EXPERIENCES !



CHINAPLAS2012

Technical Specification :

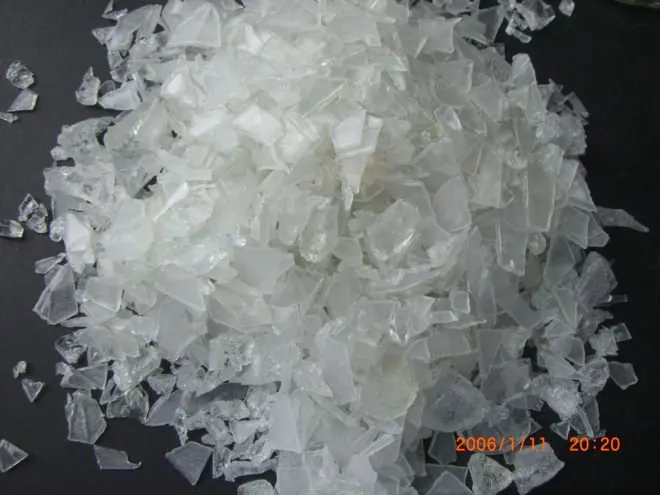

High Speed & Efficiency Plastic Granulating Extrusion Line is used for recycling and color mixing for ABS, PS, PP, PE and PC ,especialy for PC from CD & DVD crushed material .

The line adopt multinomial advance technology and configuration, ensuring it capable of mixing , plasticizing ,exhausting ,and make plastic grain color mixing equally , dense, brightness and high output .



Main Technical Characteristics :

1. Large L/D vent-type screw with forced mixing design for extruder ensuring material mixing, plasticizing , exhausting efficiently.
2. Forced circular water cooling with spiral copper pipe in barrel , control heating temperature automatically and accurately , make sure the material good plasticizing , not color change and stable output .
3. Advanced low-noise , hard surface gear box with forced lubricating system ensure the extruder continual running in high speed .

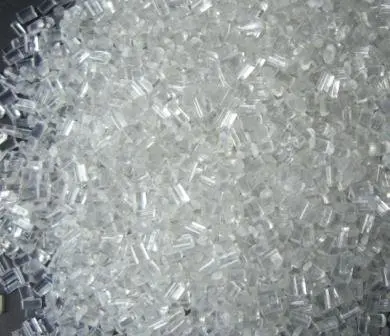

4. 27 knife cutting machine make plastic granule and cut in low-noise .

	Item No	HXSJ100/35:1
Peripherics	water tank	2.5m stainless steel water tank
	Air device	Air device 1.5kw
	Leading rack	Without
	Cutter	27 knife alloy blade cutter ,5.5kw frequency control
	Storage hopper	Without
	cooling device	Without
	fixed feeder	Single screw feeder ,1.5kw frequency control
	feeding funnel	Ø760mm stainless steel found shape funnel
	Tenmperature controller	RKC  Temperature controller
Total power		94kw



FOR MORE INFOMATION ,PLS DON'T BE HESTATE TO CONTACT US ,THANKS.
