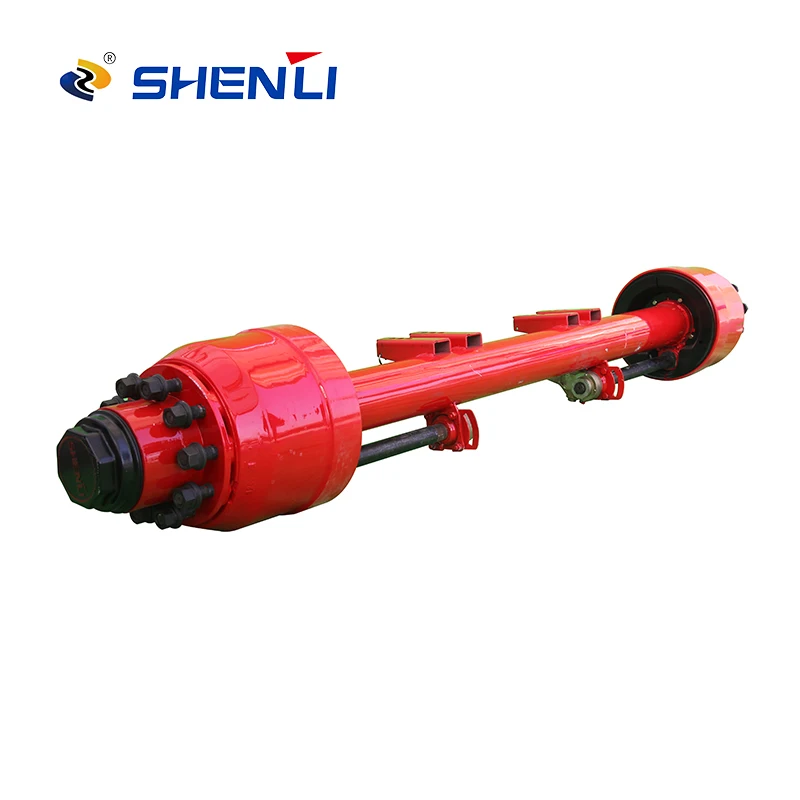

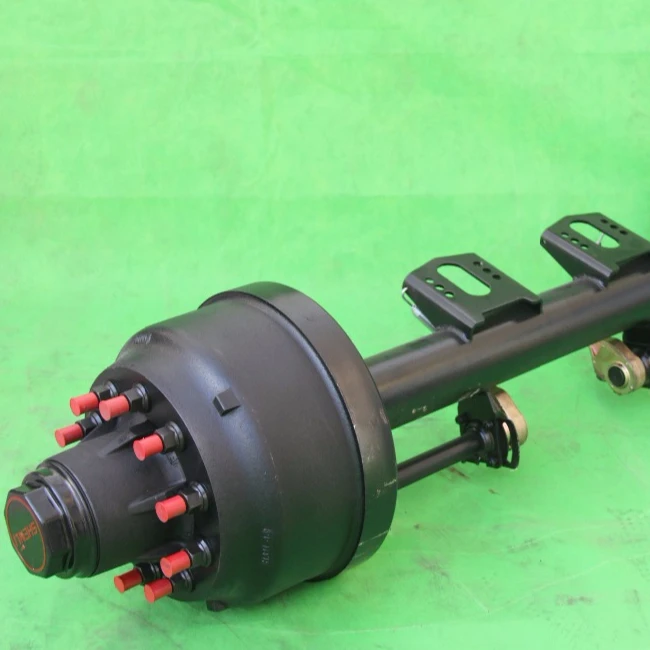

American type Axles specification/semi trailer American type16t square rear axles :
| Max capacity(T) | Track (mm) | Brake size (mm) | Center distance of spring seat (mm) | Axle Tube(mm) | Center distance of brake chamber (mm) |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 |
| 13 | 1840 | Φ420*180 | ≥930 | 150*150*12 | 390 |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 |
| 13 | 1840 | Φ420*220 | ≥930 | 150*150*12 | 350 |
| 15 | 1850 | Φ420*180 | ≥940 | 150*150*14 | 400 |
| 16 | 1850 | Φ420*220 | ≥940 | 150*150*14 | 360 |
| 20 | 1850 | Φ420*220 | ≥940 | 150*150*16 | 360 |
German Type Axle Specification:
| Max capacity | Track | Brake size | Center Distance of spring seat | Axle tube | Center distance of brake chamber |
12 | 1840 | Φ420*180 | ≥940 | 150*150*12 | 440 |
| 13 | 1840 | Φ420*200 | ≥940 | 150*150*12 | 375 |
| 14 | 1850 | Φ420*200 | ≥950 | 150*150*14 | 380 |
| 16 | 1850 | Φ420*200 | ≥950 | 150*150*16 | 380 |
| 18 | 1850 | Φ420*220 | ≥950 | 150*150*18 | 380 |
The picturers of our workshop for your reference
1.For making axles beam
2.Finished axle beam

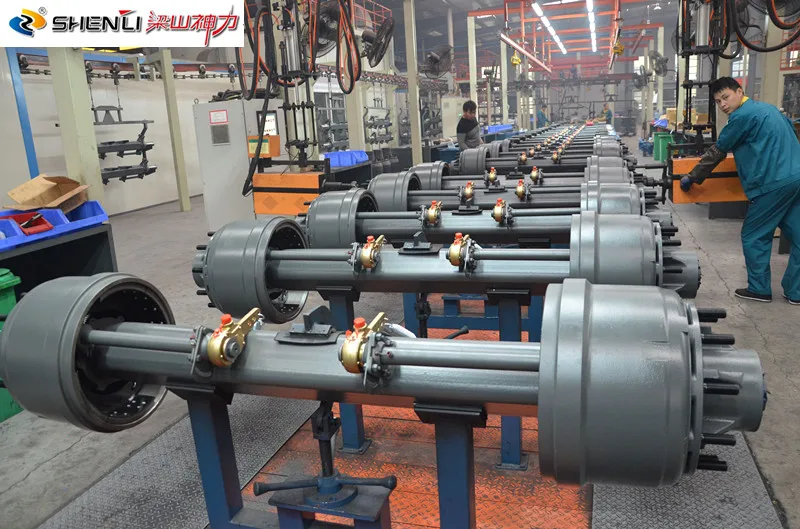

3.Axles assembly production line

For Loading axles into container
