THK SR30 SR35 Linear Guide Blocks And Rails
- Category: >>>
- Supplier: Tianjin NaBoRui Mechanical Equipment Sales Co. Ltd.
Share on (476874618):
Product Overview
Description
THK SR30 SR35 Linear Guide Blocks And Rails
Packing&Deliver
Packing Detail:Standard export carton or as custormer needs
Deliver Detail:Prompt delivery time
1. THK Linear Guide Blocks SR Series Specification:
| Model No. | Height | Width | Lenght | Radial | Reverse radial | Side | |||
| H | W | L | Dynamic rating C | Static rating C0 | Dynamic rating CL | Static rating C0L | Dynamic rating CT | Static rating C0T | |
| mm | mm | mm | kN | kN | kN | kN | kN | kN | |
| SR 20W | 28 | 42 | 66.2 | 12.5 | 25.2 | 7.75 | 12.6 | 7 | 10.8 |
| SR 25W | 33 | 48 | 83 | 20.3 | 39.5 | 12.6 | 19.8 | 11.4 | 17 |
| SR 30W | 42 | 60 | 96.8 | 30 | 56.8 | 18.6 | 28.4 | 16.8 | 24.4 |
| SR 35W | 48 | 70 | 111 | 41.7 | 77.2 | 25.9 | 38.6 | 23.4 | 33.2 |
| SR 45W | 60 | 86 | 126 | 55.3 | 101 | 34.3 | 50.5 | 31 | 43.4 |
| SR 55W | 68 | 100 | 156 | 89.1 | 157 | 55.2 | 78.5 | 49.9 | 67.5 |
| SR 20TB | 28 | 59 | 66.2 | 12.5 | 25.2 | 7.75 | 12.6 | 7 | 10.8 |
| SR 20V | 28 | 42 | 47.3 | 7.16 | 14.4 | 4.44 | 7.2 | 4.01 | 6.19 |
| SR 20VM | 28 | 42 | 47.3 | 7.16 | 14.4 | 4.44 | 7.2 | 4.01 | 6.19 |
| SR 20SB | 28 | 59 | 47.3 | 7.16 | 14.4 | 4.44 | 7.2 | 4.01 | 6.19 |
2.THK Linear Guide SR series
Since it is a compactly designed model that has a low sectional height and a ball contact structure capable of receiving a large load in the radial direction, this LM Guide is optimal for horizontal guide units.
3.THK Linear Guide System Applications
Linear motion bearings are widely use in electronic equipment. tensile testing machine and the digital three-dimensional coordinate measuring equipment, precision equipment,
and multi-axis machine tools. presses. tool grinder. automatic gas cutting machine . printer.
card sorting machine. food packing machines and other industrial machinery sliding components.

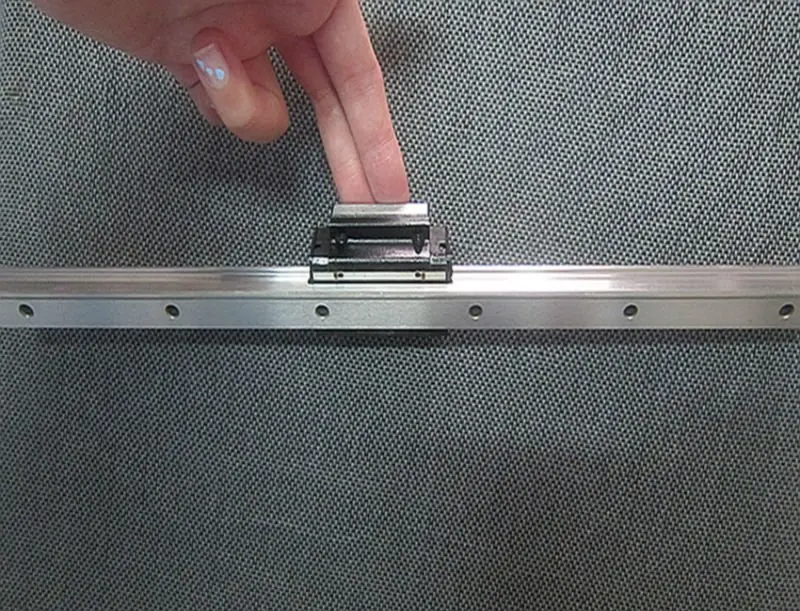

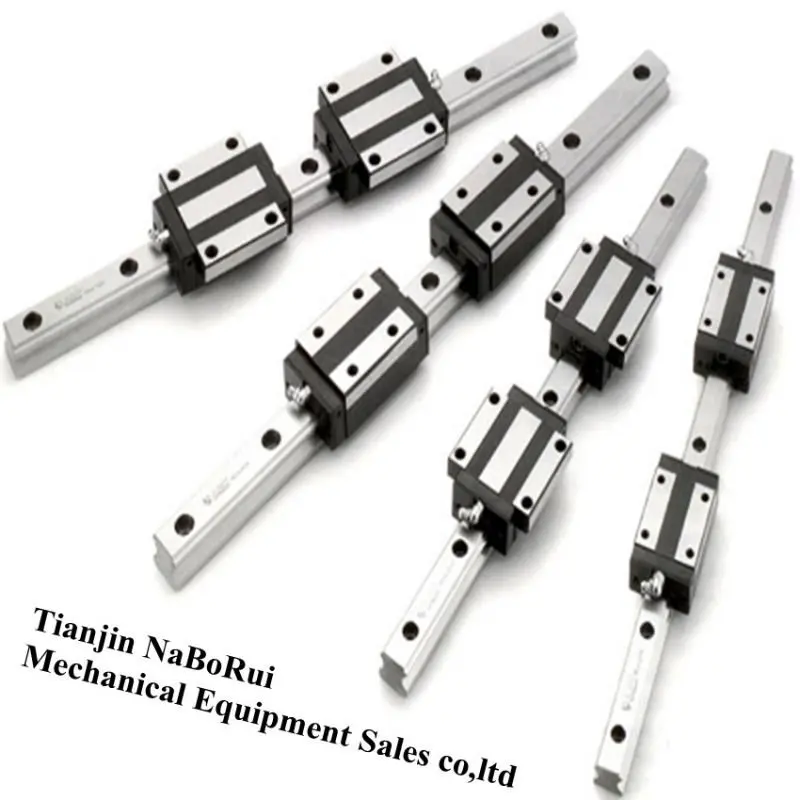

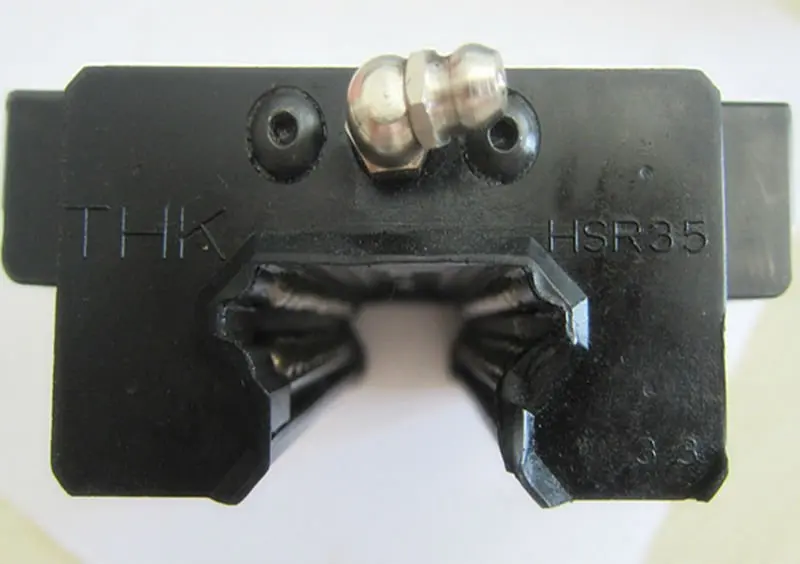

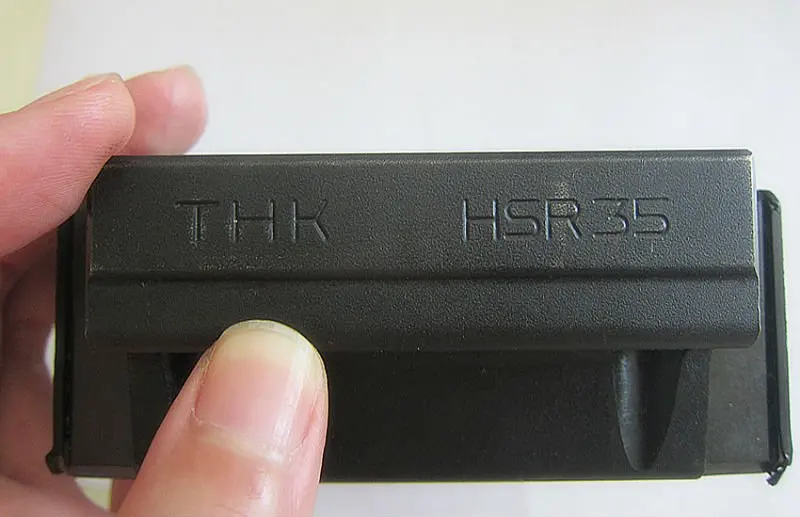

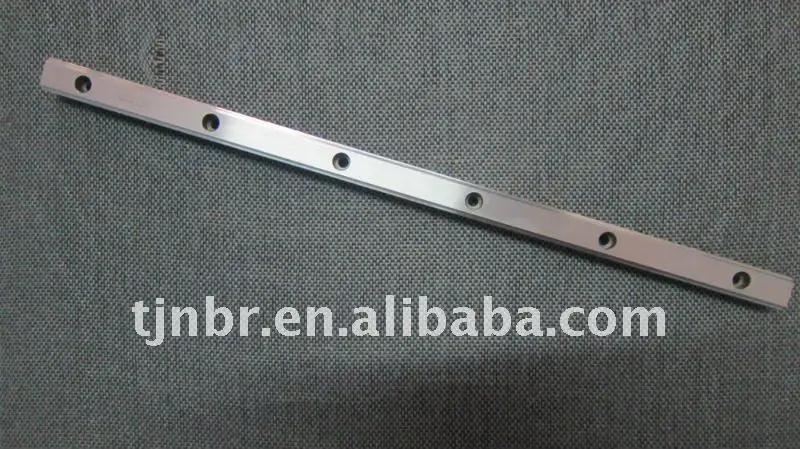

4.Products image show :
