Wax Powder Making Machine
- Category: >>>
- Supplier: Dandong Starlight Industrial Co. Ltd.
Share on (477872059):
Product Overview
Description

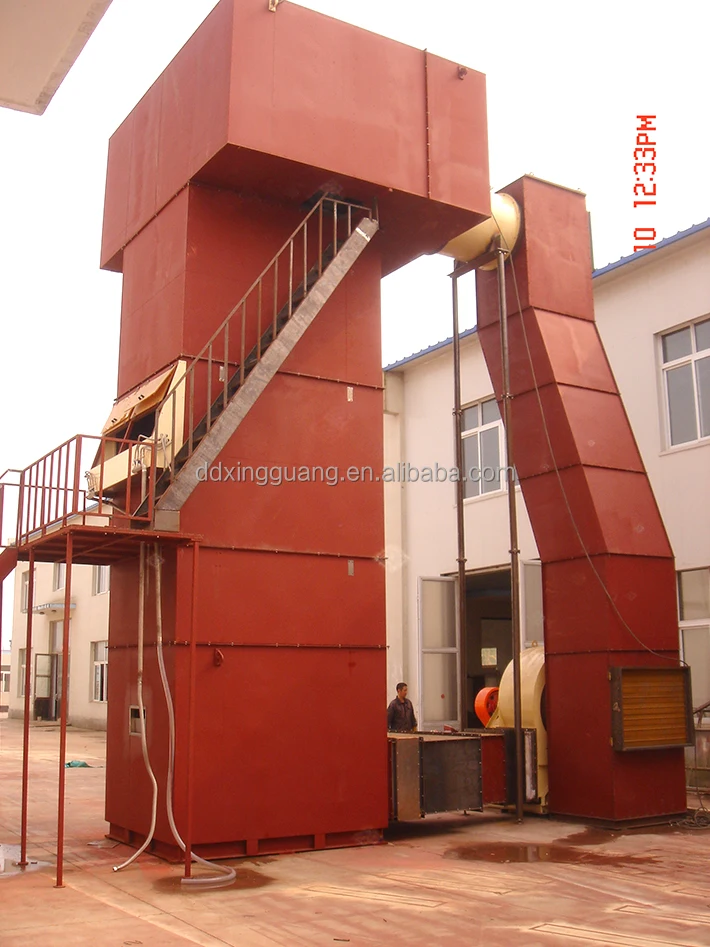

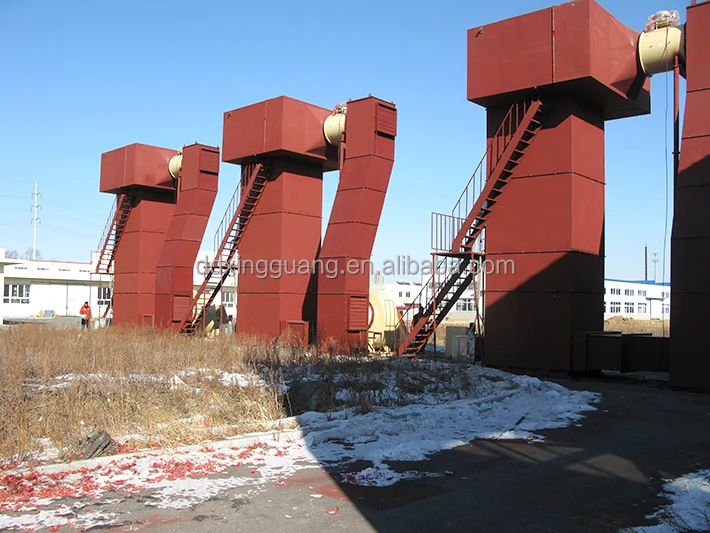

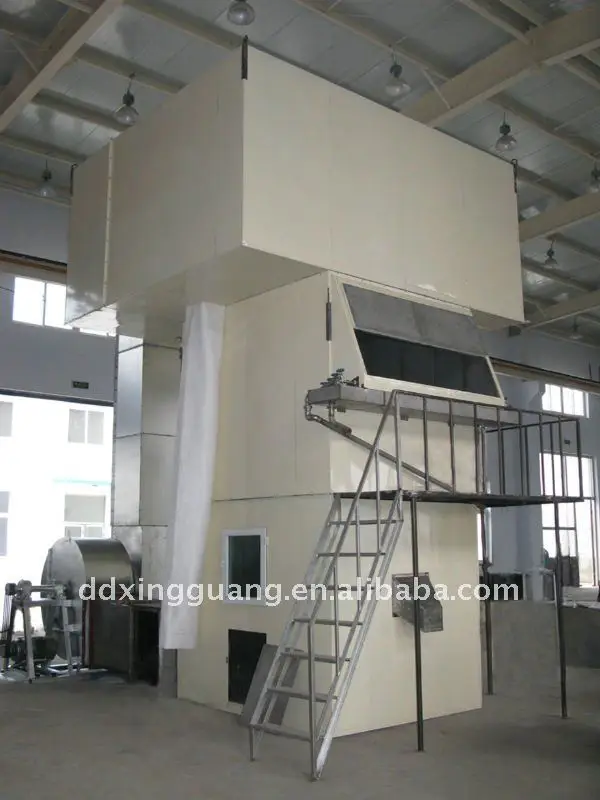

Wax Powder Making Machine is one of specialized equipments in candle production, to be used in making the wax powder into various candle productions in a further step. This machine shall be placed inside the workshop.
| Model Type | XGPFC-800A |
| Production of wax powder | 800-850kg/h |
| Number of nozzles: | 100 x4pcs |
| Degree of noise | (max)85db |
| Dimension(L×W×H) | 8150×4620×7100mm |
| Power of centrifugal fan | 15KW |
| Power of axial blower | 7.5KW |
| Power of the wax pump | 3KW |
| Runoff | 3m3 /h |
| Air pressure | 0.8-1Mpa |
| Water consumption | about 10 m3 /h |
| Temperature of cold water | about 7-10 °C |
| Hot water consumption | about 3m3 /h |
| Compression air volume | 50L/min |
| Pressure of compressed air | 0.6MPa |
| Steam pressure | 0.75Mpa |
| Mixing motor for in the wax melting tank | 1.1KW |
| Voltage | 380V |
| Frequency | 50Hz |
| Voltage of the controlling system | 220V |
| Power | 26.6KW |
| Diameter of the powder | 0.3mm |
| Weight | 6550Kg |
| Wax Powder Machine | Description (Height) | Capacity |
| 6m | 600-700kg/h | |
| 7m | 700-800kg/h | |
| 8m | 800-900kg/h | |
| 9m | 900-1000kg/h |
