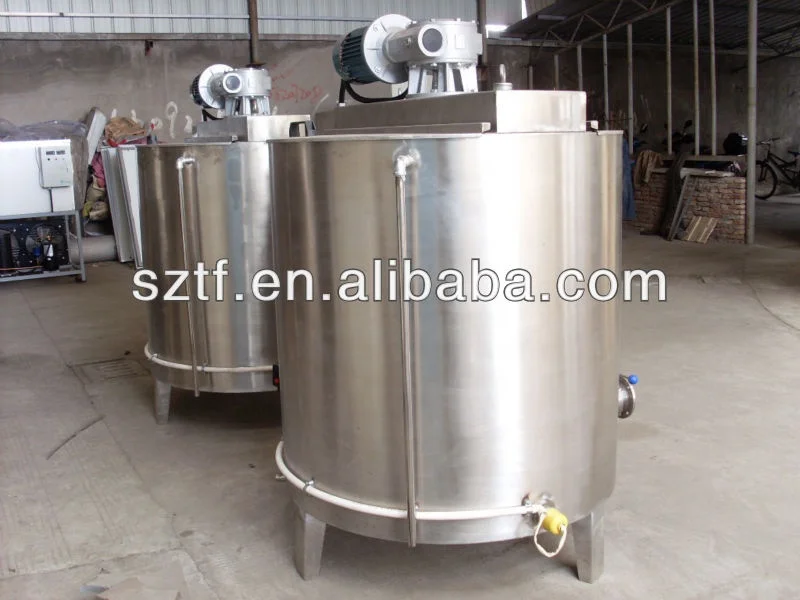

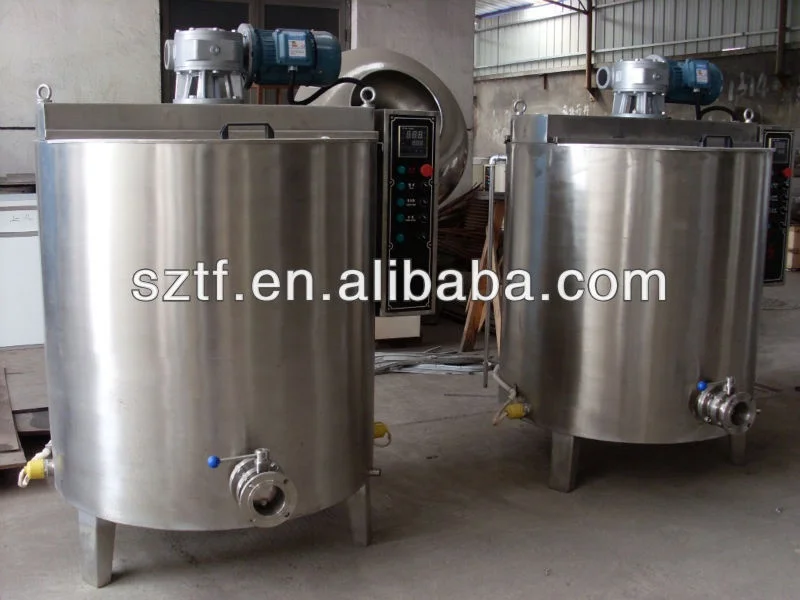

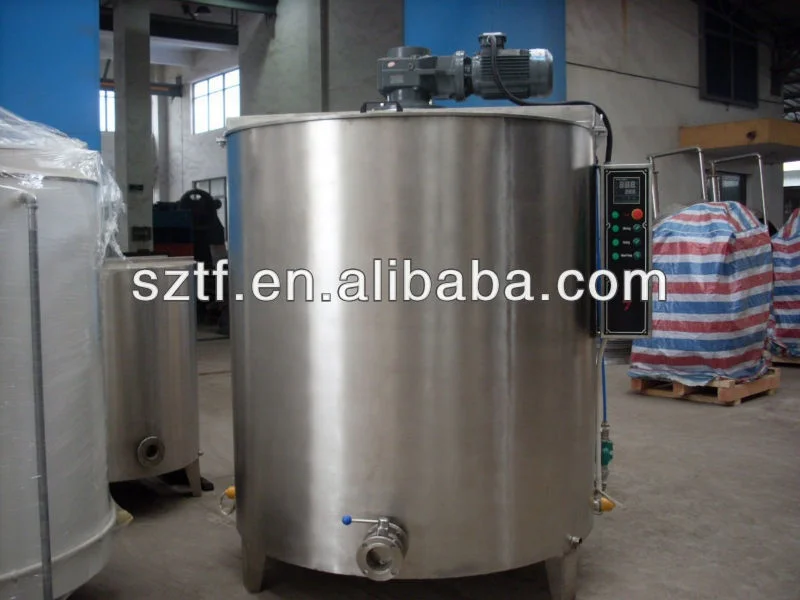

TBWG500 chocolate melting machine

Product Overview

Description



USE:

1. This chocolate melting machine is used for storage of fine grinded chocolate paste to keep required temperature of chocolate. The temperature control system in machine can keep required temperature of chocolate by control temperature of water in jacket layer.

2. Chocolate tank has functions of temperature decrease, rise and keeping; you can set required temperature on control panel.

3. Meantime, it also has functions of degasification, desmelling, dehydration and preventing the chocolate paste from separation of chocolate fat by continuous stirring of agitator.



Main Parameter:

Model:TBWG500

Maximum capacity:500L

Motor power:1.5kw

Heater power: 4kw

Rotation speed of agitator:24round per minute

Net weight: 600kg

Dimension: (Diameter)1000*(Height)1380mm

Adjustable Temperature controller

Double Water-jacket layers,water heated by eletrical heater.

With a hot water circulating pump

Material: All stainless steel

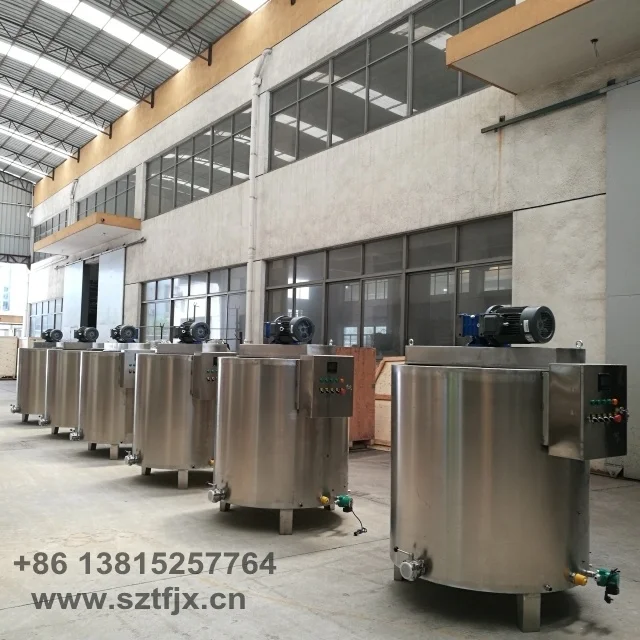

Also,we can make chocolate tank with capacity from 100L to 5000L.



Model of product	Maximum capacity(L)	Motor power(kw)	Net weight (kg)	Outside dimension (mm)
TBWG5000	5000	7.5	3000	φ 2000*2710
TBWG3000	3000	5.5	2000	φ 1700*2500
TBWG2000	2000	3	1500	φ 1400*2500
TBWG1000	1000	2.2	1000	φ 1220*1850
TBWG500	500	1.5	600	φ 1000*1380
TBWG300	300	1.1	200	φ 900*1250
TBWG200	200	1.1	180	φ 800*1250
TBWG100	100	0.37	150	φ 700*1250

1. Strong seaworthy wooden package.

2. Protection against humidity.

3. Skilled capability of delivery to your country.







1. One-year guarantee period for complete machine.

2. Free charge of accessories within guarantee period excluding false operation.

3. Free charge of layout design, instruction with details, installation guide and local team training.

4. Experienced engineer is available to set up the machines upon request.

5. 24 hours technical support service by email and mobile.
