HSS Module DP Gear Shaper Cutter

Product Overview

Description

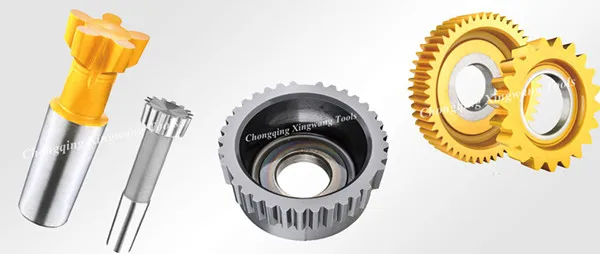

HSS Module / DP Gear Shaper Cutters

1,Disk Type Gear Shaper Cutter

     Module: m0.8-m18,DP

     Pressure angle: PA20,α14.5°-α45°

    Outside dia. (mm): d40-d240

    Accuracy: GB/T6082-2001 Class A,AA

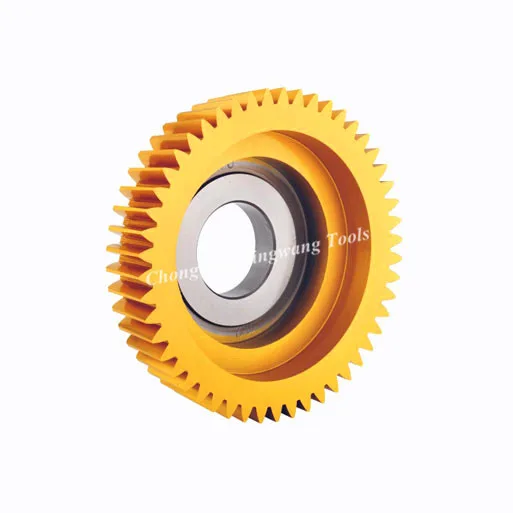

2,Deep Counter Bore/Bowl Type Shaper Cutter

     Module: m0.8-m18,DP

     Pressure angle: PA20,α14.5°-α45°

    Outside dia. (mm): d40-d240

    Accuracy: GB/T6082-2001 Class A,AA

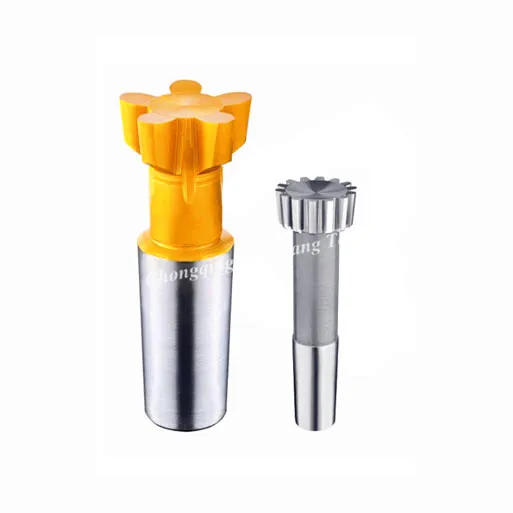

3,Shank Type Gear Shaper Cutter

     Specification:module m0.8-m5,DP

     Pressure angle: PA20,α14.5°-α 45°

     Diameter: d15-d45

     Accuracy: GB/T6082-2001 B,A

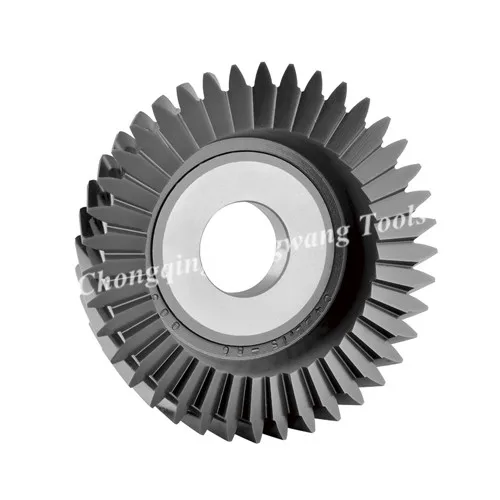

4,Helical Gear Shaper Cutter

     Module: m0.8-m12,PA20

     Pressure angle: PA20,α14.5°-α45°

     Helix angle:0~45degree

     Outside dia. (mm): d40-d200

     Accuracy: GB/T6082-2001 Class A,AA



5,Details for Supplying Module and DP Spur and Helical Gear Shaper Cutters:

  1),We are manufacturer and exporter of Standard and Non Standard Gear Shaper Cutters including Module, DP and CP series.

  2),Gear Shaper Cutters are available with roughing finishing, Chamfering, Topping, Non Topping, Protuberance with various pressure angles.





  3),Pls Contact US for more details on Ordering Standard or Non-Standard Module and DP Gear Shaping Cutter Tools.
