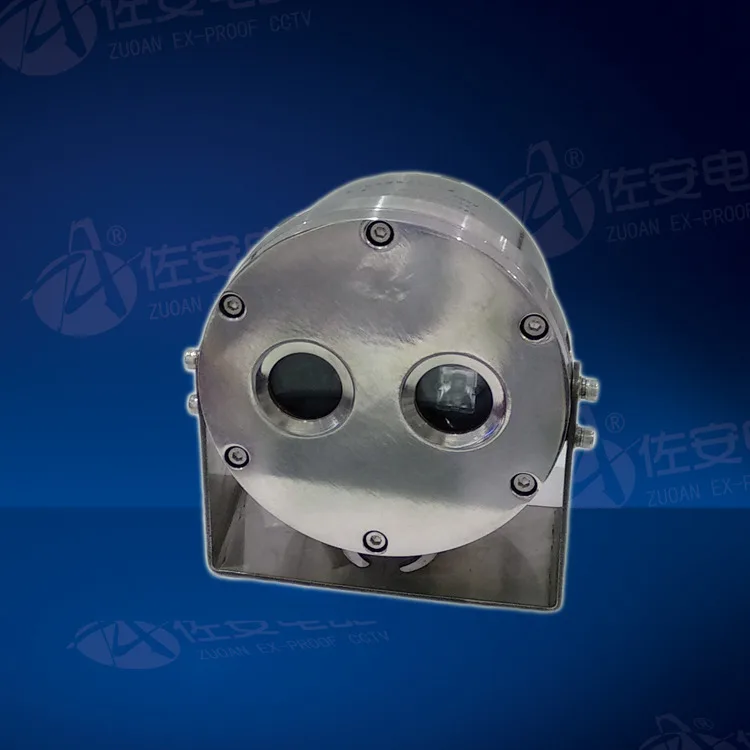

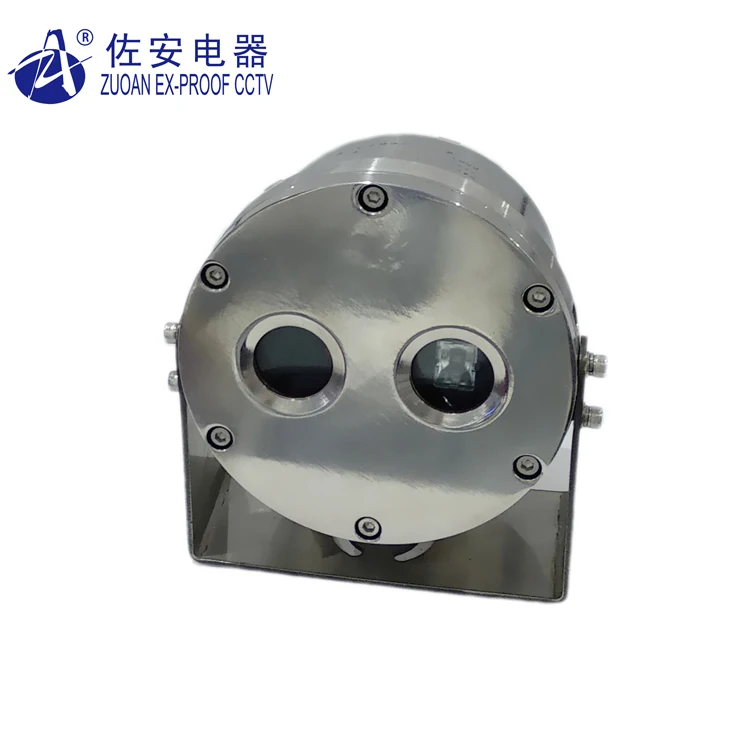

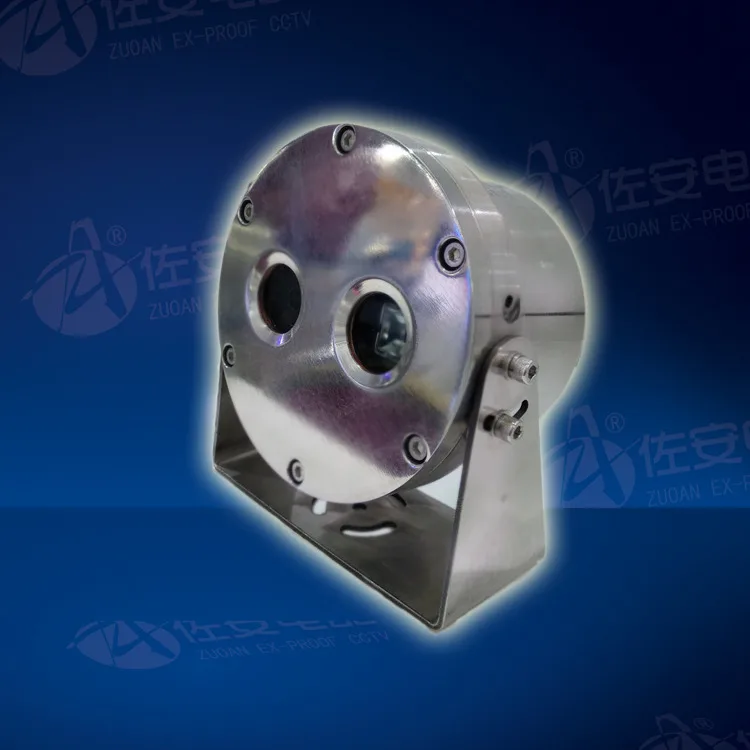

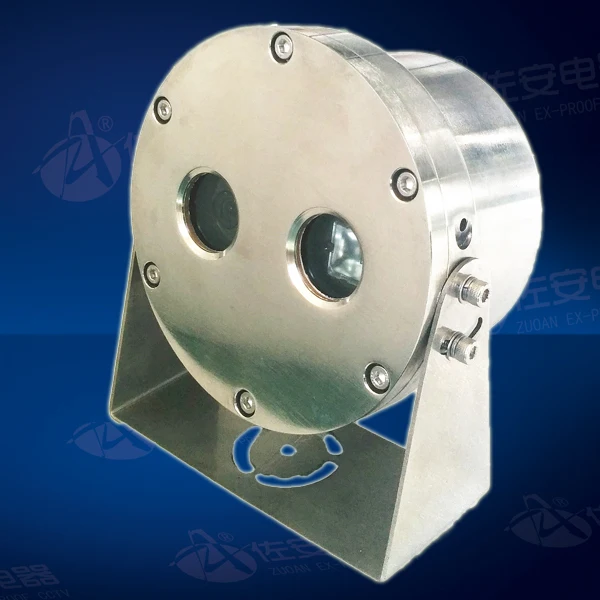

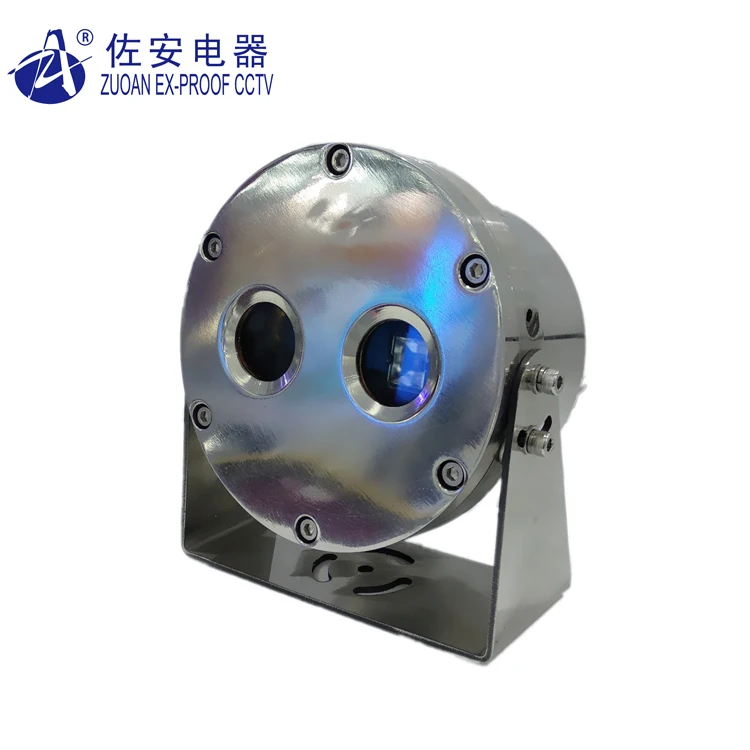

ZAF109 Explosion proof IR Mini Camera for oil tank truck

Product Overview

Description

ZAF109 MINI EXPLOSION PROOF INFRARED / IR CAMERA for oil tank truck





ZAF109 ex-proof infrared mini camera is a mini type of high-end ex-proof monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22. ZAF109 isinternally installed with the infrared lamp with 30m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.

ZAF109 ex-proofcamera has no wiper, but it's window is made of nano glass which has a self- cleaning flunction.

ZAF109 is installed with a SONY 1/3 CCD camera with a high resolution and a function of automatical switching from color to black.





Model	ZAF109-S-950	ZAF109-S-M	ZAF109-S-IP
Atmospheric pressure	80KPa~106Kpa		80KPa~106Kpa
Ambient Temperature	–25°c~+60°c (-13°~140°F)		–25~+60°c (-13~140°F)
Relative Humidity	≤95% (+25°c)		≤95% (+25°c)
Certifications	CNEX: ·ExdⅡCT6  /·DIP A20 TA, T6
CNEX certificate no.	CNEx:11.0584
Ingress Protection	IP68	IP68	IP68
Input power	DC12V	DC12V	POE/DC12V
Electrical current	800mA	800mA	800mA
Tempered window glass	Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in)

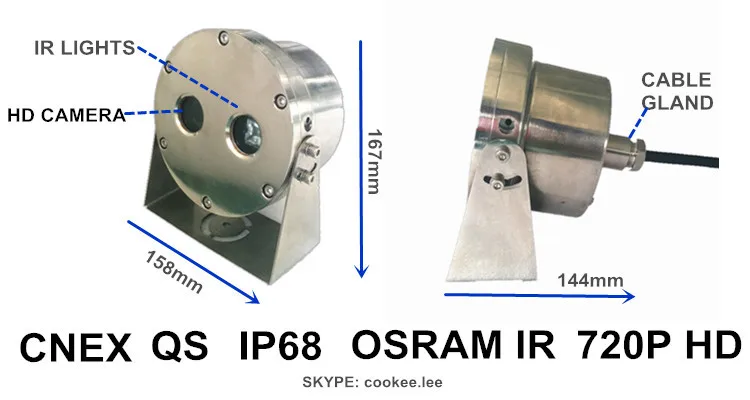

Overall dimension HxWxT	132*126*106mm 5.2x5.0x4.2in	132*126*106mm 5.2x5.0x4.2in	132*126*106mm 5.2x5.0x4.2in
				Net weight	2.2KG/ 4.8LBS	2.2KG/ 4.8LBS	2.2KG/ 4.8LBS
Resolution	950TVL	650TVL	720P
Material	SS304 (industrical chemical factories, outdoors and so on)  SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
				wipper	no	no	no
				nanometer filmed window glass	yes	yes	yes
infrared lamp	LED,20m visible	no	arrary lamp
infrared projection angle	30°-60°	no	30°-60°
infrared Wave length(nm)	850-940	no	850-940
Output	AV	AV	net work transmit
Required lens	≥6mm	------	≥4mm
