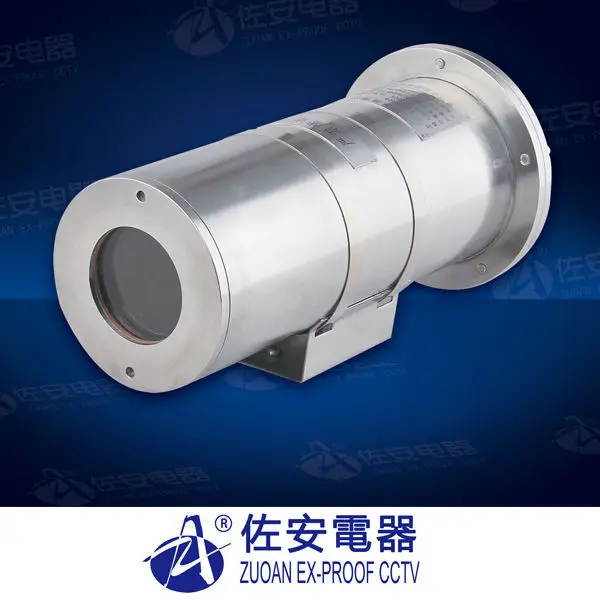

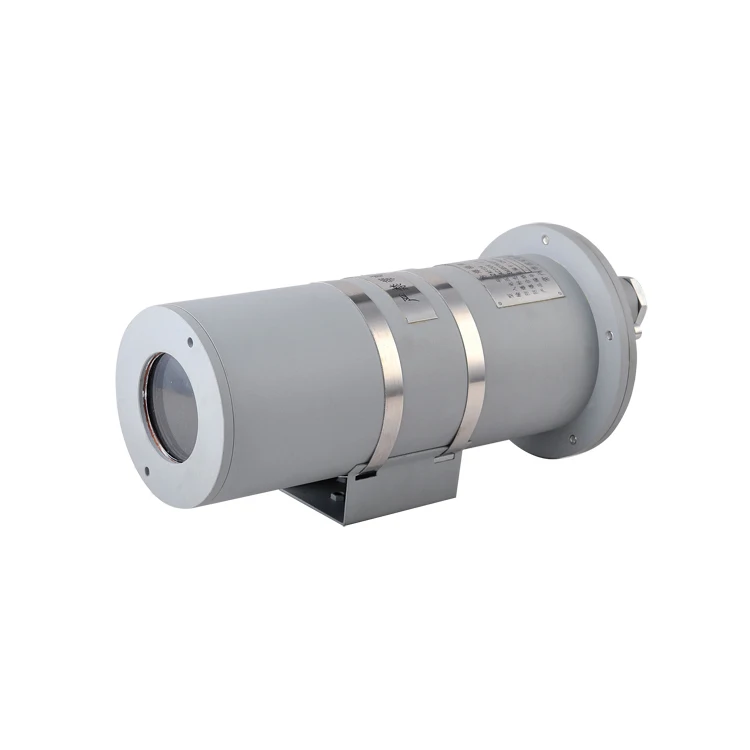

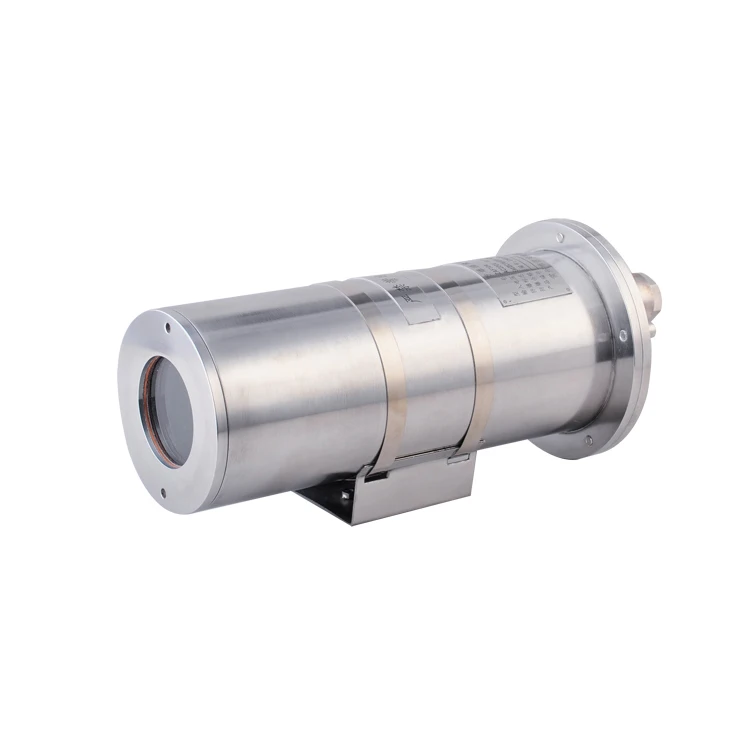

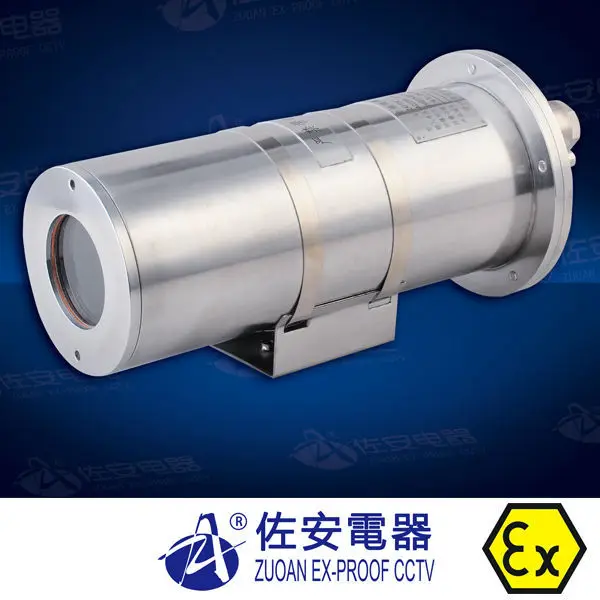

STAINLESS STEEL CCTV CAMERA HOUSING/ CAVITY/ ENCLOSURE
Product Description

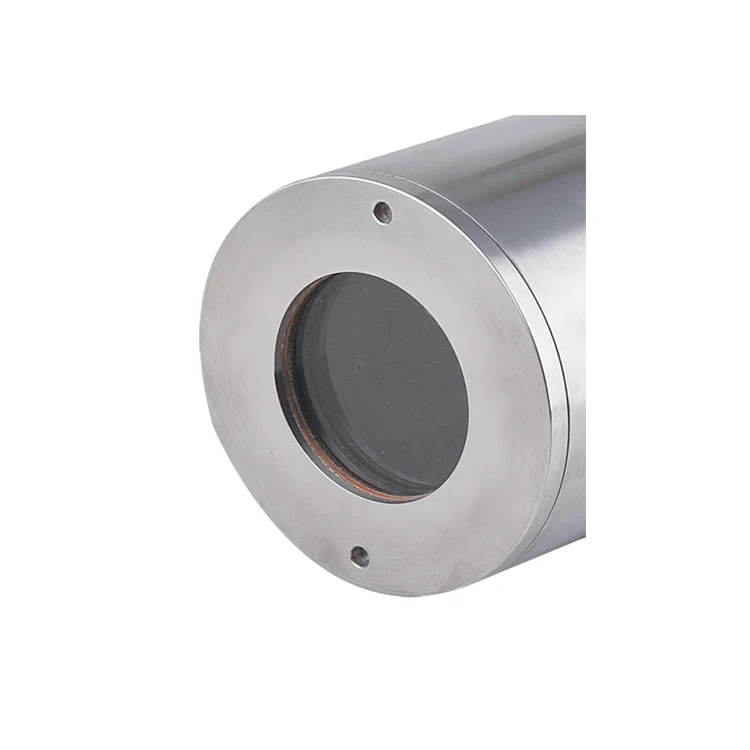

ZAF104 series is a small size of stainless steel cctv camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22.ZAF104 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera, dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF103 housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish, according to customer requirement. ZAF104 serise adopts 12mm thickness tempered window glass, which is fit for indoor mounting. ZAF104 series can be mounted on fixed brackets(model: ZAZ104-B) for one point surveillance; it also can be mounted on rotating pan&tilt (model ZAY210) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF104 camera housing inner Size: 210*65*65mm, net weight: 4.5KG. 98% box cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation. on the other hand, ZUOAN also offer integrated housing with installed camera.
Applications
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands
·Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: lens decoder, auto-heating
·Communication : Pelco-D/ Pelco-P
·Output: AV/twisted pair
Product Parameter
Model
ZAF100B-S
ZAF102-S
ZAF104-S
ZAF105-S
Atmospheric pressure
80KPa~106Kpa
Ambient Temperature
–25°c~+60°c (-13°~140°F)
Relative Humidity
≤95% (+25°c)
Ex-proof mark
CNEX: ·Ex dⅡC T6 /·DIP A20 TA, T6
CNEX: ·Ex dⅡB T6·DIP A20 TA, T6
CNEX certificate no.
CNEx 12.0006
CNEx 12.0004
CNEx 13.2140
CNEx 13.2138
Ingress Protection
IP66
IP66
IP68
IP68
Voltage Input
AC85-220V,AC24V, DC24V,DC12V, optional
Power supply (optional)
optional
optional
optional
optional
Tempered window glass
Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in)
Overall dimension LxWxH
420*180*160mm 16.5x7.1x6.3in
421*132*155mm 16.6x5.2x6.1in
313*140*145mm 12.3x5.5x5.7in
366*163*170mm 14.4x6.4x6.7in
Internal usable area
300*80*80mm 11.8x3.1x3.1in
300*70*75mm 11.8x2.8x3.0in
220*65*65mm 8.7x2.6x2.6in
260*80*80mm 10.2x3.1x3.1in
Net weight
7.8KG /17.2LBS
7.8KG /17.2LBS
4.5KG /9.9LBS
5.5KG /12.1LBS
Material
SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms)
Auto-heating
optional
optional
optional
optional
Auto-cooling
optional
optional
no
no
Wiper
no
no
no
no
Len decoder
optional
optional
optional
optional
Sunshield
optional
optional
______
optional
Control
RS485
RS485
______
______
Control protocal
Pelco-D/Pelco-P
Pelco-D/Pelco-P
______
______
Output
AV/ fiber/ twisted-pair/H.264 network
AV/ fiber/ twisted-pair/H.264 network
AV/ twisted-pair
AV/ fiber/ twisted-pair/H.264
Relative products
Brackets and Pan& tilt
ZAZ100-B, bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAZ104-B, bracket for ZAF104 ZAY200B, pan and title for ZAF100A,100B,102, 106 series ZAY210, pan and tilte for ZAF 103,1031, 104,105 series.
