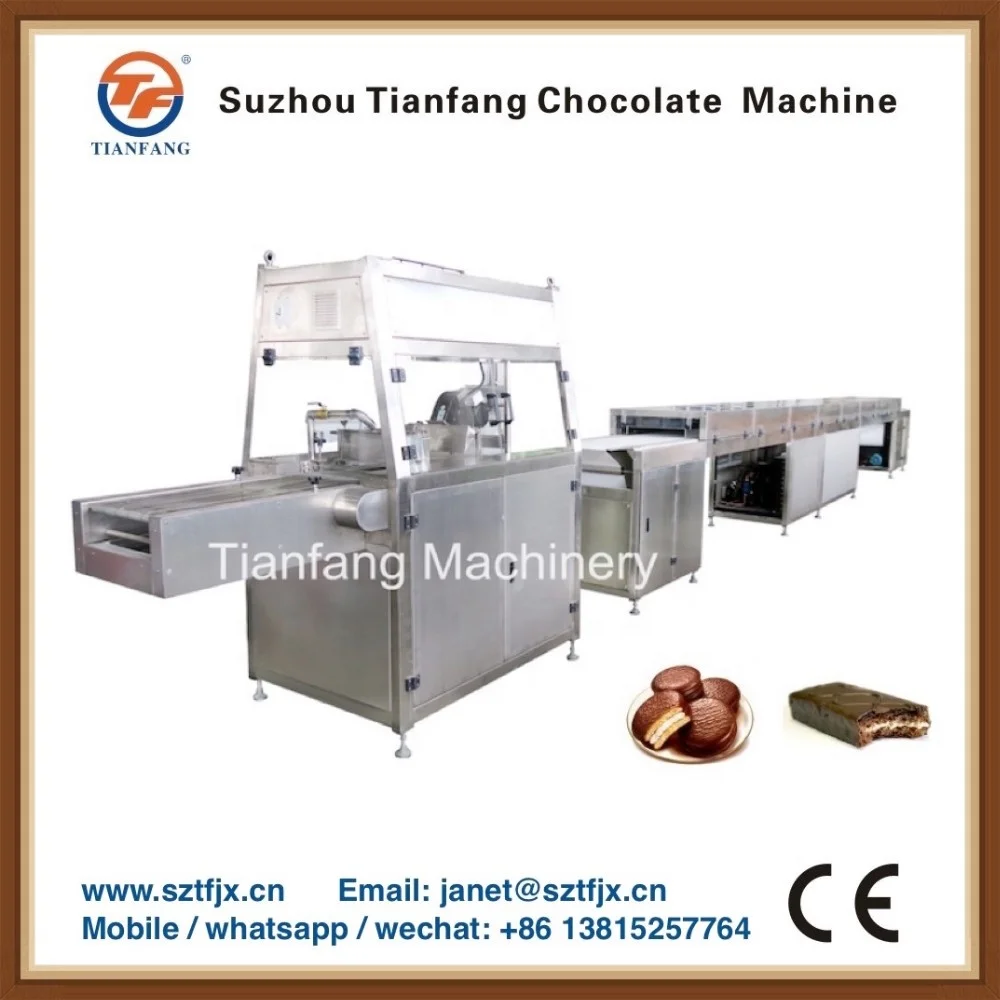

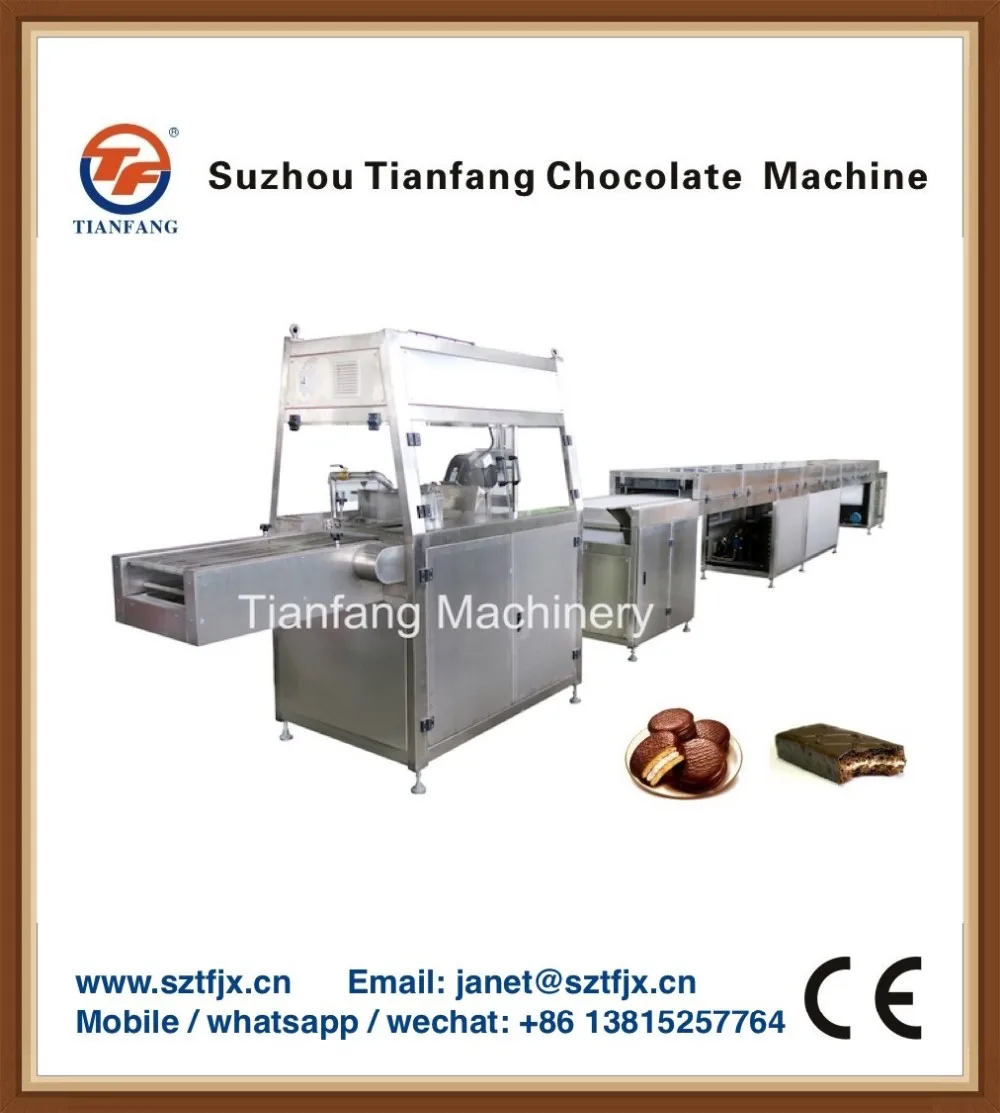

USE: 1.Chocolate enrobing machine compose of chocolate enrober machine and cooling tunnel.
2.Chocolate coating line is used for coating chocolate paste on the surface of many kinds of foods,such as candy,cake and biscuit etc.Then various flavor of chocolate products can be produced.
3.Chocolate coating line can coat chocolate on all sides of foods.Also it can coat chocolate only on one side(bottom) for your option.
4. Real chocolate and compound chocolate are both workable to make in this machine.
Main Parameters:
Model: TTYJ800
Width of conveyer belt in cooling tunnel: 800mm
Width of s.s. mesh belt in enrober: 750mm
Speed of conveyer belt: 0~3m/min (speed is adjustable)
Capacity of cooling compressor: 8HP
Brand of cooling compressor: Emerson Temperature in cooling tunnel: 0~10 oC Length of cooling tunnel: 10meter (can be longer as requested) Total power: 9.17kw Weight of machine: 2800kg
Size of machine:12000x1400x1800mm
Material of machine: All stainless steel
For optional function, we can make following units on machine as requested.
1. Belt conveyer (before enrober or after cooling tunnel for buffer)
2. Wafer feeder (at front of enrober to feeding regular wafer automatically)
3. Wafer turn-over unit (turn product over after coating chocolate on bottom side of production and before go to cooling tunnel)
4. Granulars spreader and cleaner (spread crushed nuts or sesame on products and clean the extra nuts or sesame on belt)
5. Decorator (to make curves/waves/lines of cream or chocolate on products)
We have chocolate enrobing machine with 400mm width conveyer belt (model: TTYJ400), 600mm width conveyer belt (model: TTYJ600), 800mm width conveyer belt (model: TTYJ800), 1000mm width conveyer belt (model: TTYJ1000) and 1200mm width conveyer belt (model: TQDJ1200).
Model
TTYJ 400
TTYJ 600
TTYJ 800
TTYJ1000
TTYJ 1200
Width of conveyer belt in cooling (mm)
400
600
800
1000
1200
Speed of conveyer belt (m/minute)
0 - 3
0 - 3
0 - 3
0 - 3
0 - 3
Width of mesh belt in enrober (mm)
350
550
750
950
1150
Capacity of compressor
5HP
5HP
8HP
8HP
8HP
Brand of compressor
Emerson
Emerson
Emerson
Emerson
Emerson
Temperature in Cooling Tunnel
0 - 10°C
0 - 10°C
0 - 10°C
0 - 10°C
0 - 10°C
Length of cooling tunnel (m)
10
1o
10
10
10
Power of machine (kw)
7.5
9.17
9.17
12
12.5
Weight of Machine (kg)
1800
2300
2800
3600
4000
The length of cooling tunnel and capacity of cooling compressor can be customized to your requirement.
Packaging & Shipping
1. Strong seaworthy wooden package.
2. Protection against humidity.
3. Skilled capability of delivery to your country.
Guarantee & After-Sales Services
1. One-year guarantee period for complete machine.
2. Free charge of accessories within guarantee period excluding false operation.
3. Free charge of layout design, instruction with details, installation guide and local team training.
4. Experienced engineer is available to set up the machines upon request.
5. 24 hours technical support service by email and mobile.
