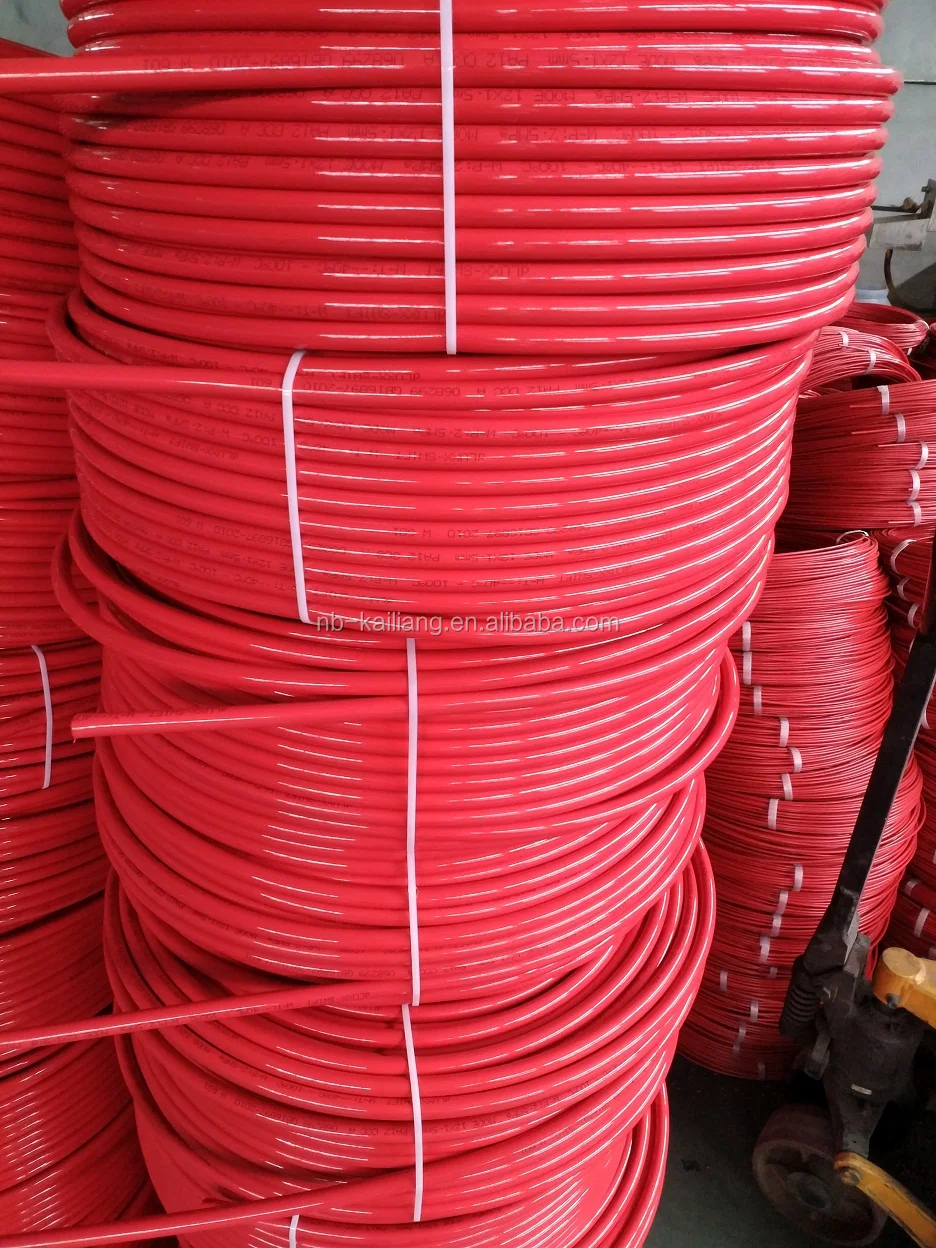

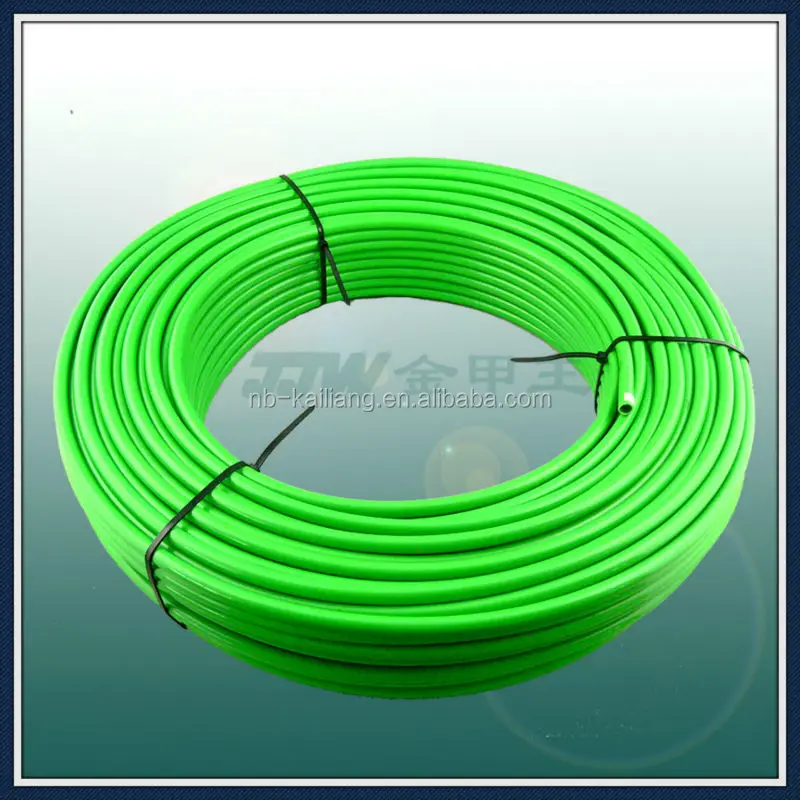

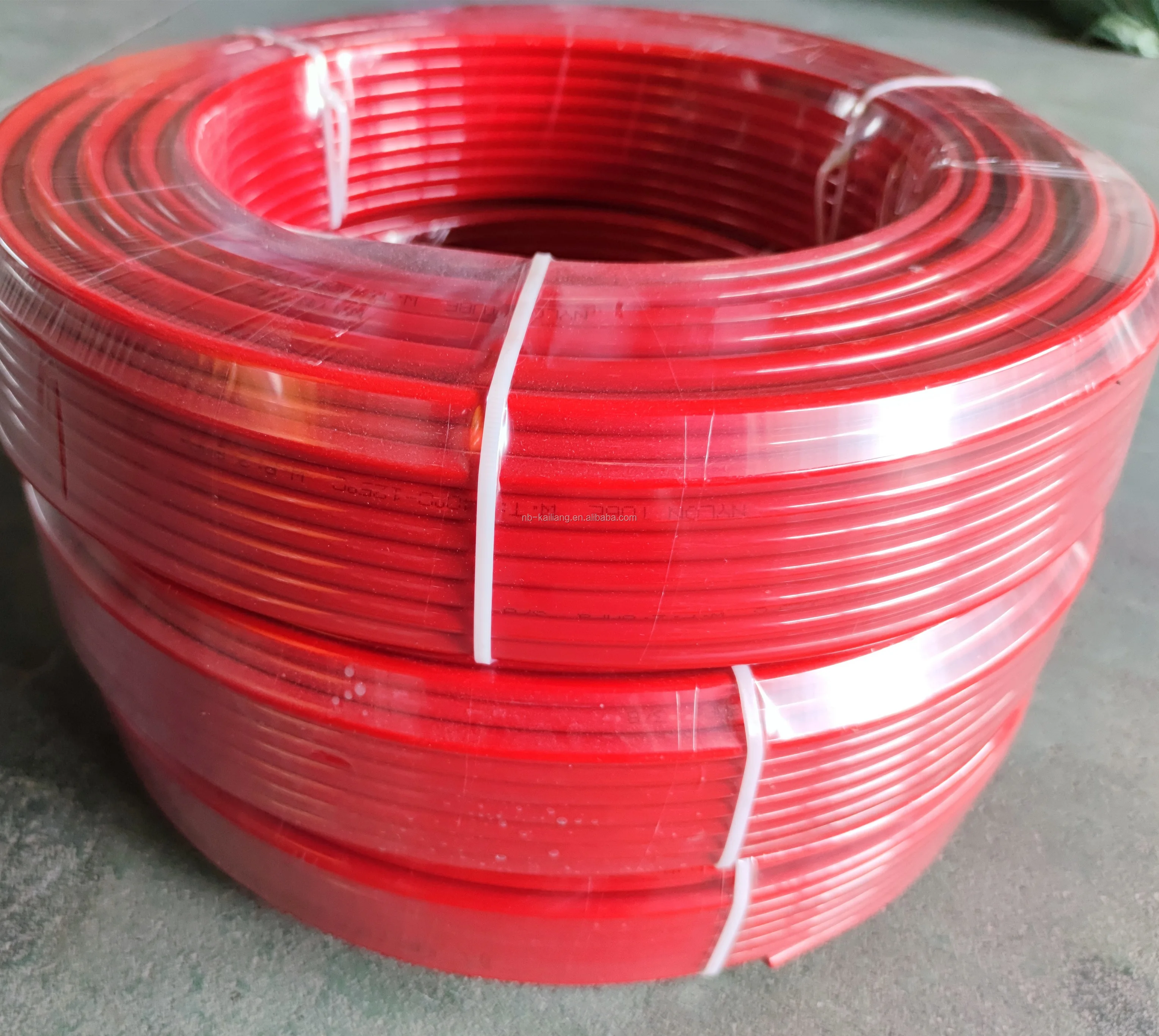

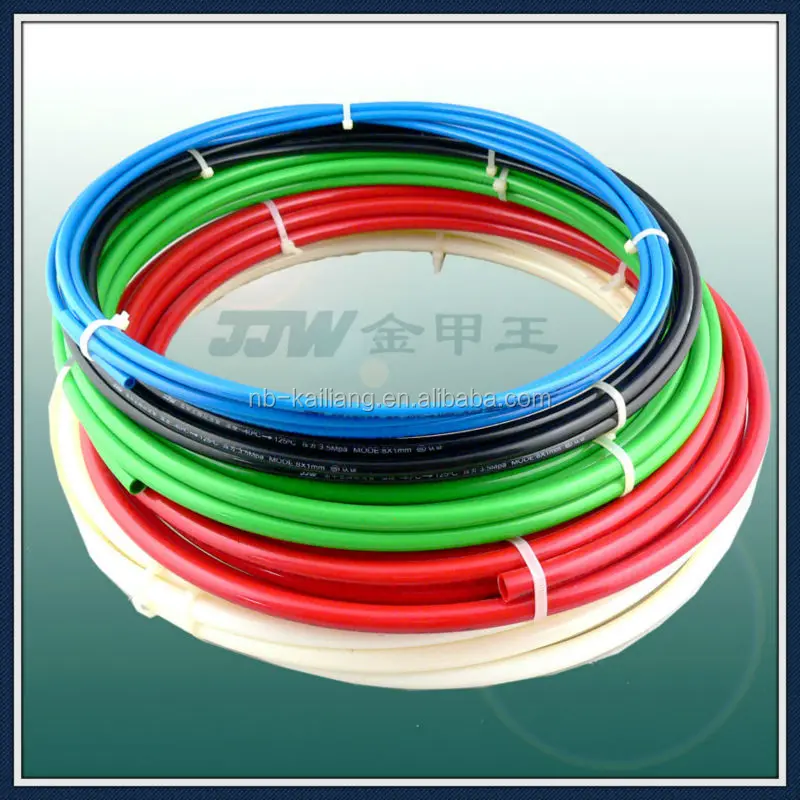

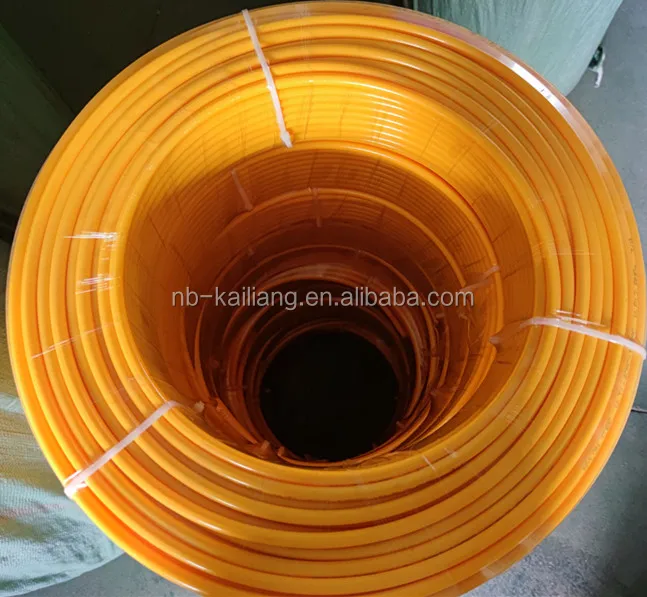

China cheap colored plastic pipe,PA12 power steering hose,nylon tubing

Product Overview

Description

PA  tube

1.     Good wear ability, smooth surface, low resistance, anti-rustiness and anti-scaling

2.   Flexible, easy to be bended into all kinds of shapes , easy to install

3.    High chemical and hydrolysis resistance, stable dimension,little penetration, can be used more than ten years.

4.     High and low temperature resistance(-40°C~120°C),can transfer compressed air, water,oil, chemical liquid and so on.

5.    It is widely used in Light trucks, car hydraulic brake system,power steering tube, forkliftsand and so on.

Mode  No.	Size(O.D×Wall)	O.D.(mm)	Thickness(mm)	Work pressure(Mpa) BurstPressure(Mpa)
NT-1	Φ3×0.5	3	0.5	3.0	4.5
NT-2	Φ4×0.75	4	0.75	3.1	5.5
NT-3	Φ4×1	4	1	4.5	6.8
NT-4	Φ5×1	5	1	3.4	6.5
NT-5	Φ6×1	6	1	3.2	6.3
NT-6	Φ8×1	8	1	2.6	5.7
NT-7	Φ10×1	10	1	2.7	4.5
NT-8	Φ10×1.25	10	1.25	2.8	5.6
NT-9	Φ12×1.5	12	1.5	3.2	5.7
NT-10	Φ14×1.5	14	1.5	2.2	5.6
NT-11	Φ15×1.5	15	1.5	2.0	5.4
NT-12	Φ16×2	16	2	2.8	5.4
NT-13	Φ18×1.5	18	1.5	2.3	3.6
NT-14	Φ23×2	23	2	2.1	3.3
NT-15	3/16”	4.72	0.75	3.3	6.3
NT-16	5/16”	7.9	1	2.5	5.6
NT-17	1/4”	6.35	1	2.7	5.3
NT-18	3/8”	9.5	1.5	2.8	6.1
NT-19	1/2”	12.7	1.5	3.0	5.5
NT-20	5/8”	15.8	1.5	2.7	5.0
