Tool Parts DOP-107EG Delta 7 inch Ethernet 800Hz HMI Touch Screen 7" Panel 800x600 with USB Program Ddownload Cable replace DOP-B07E515

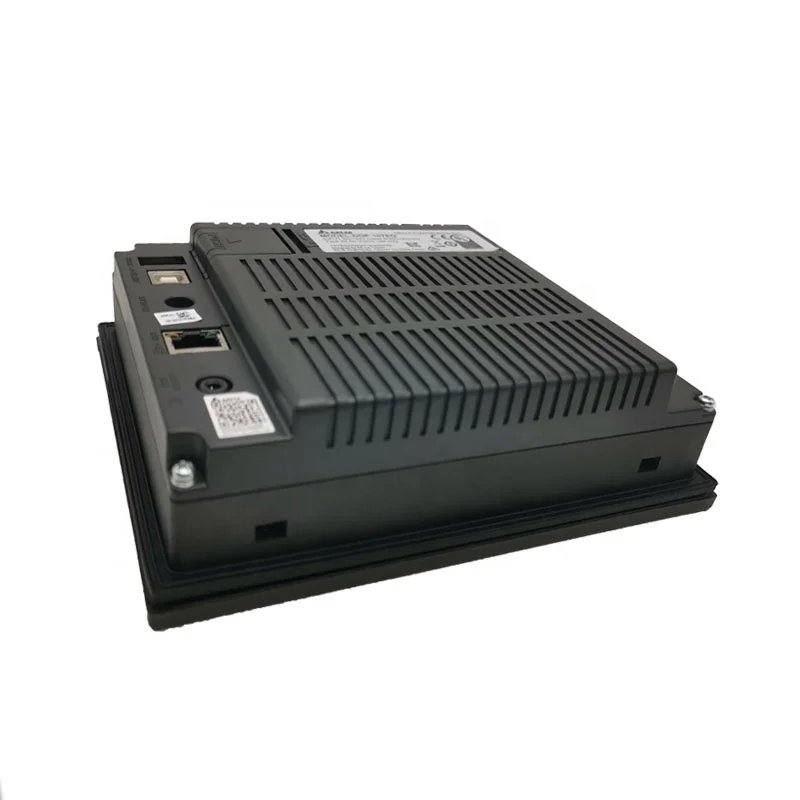

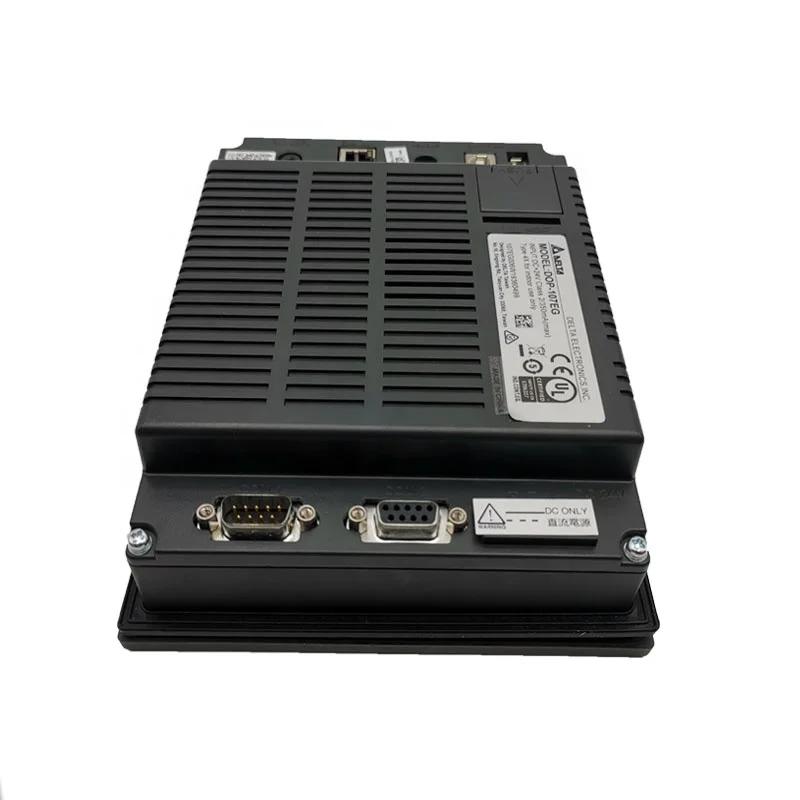

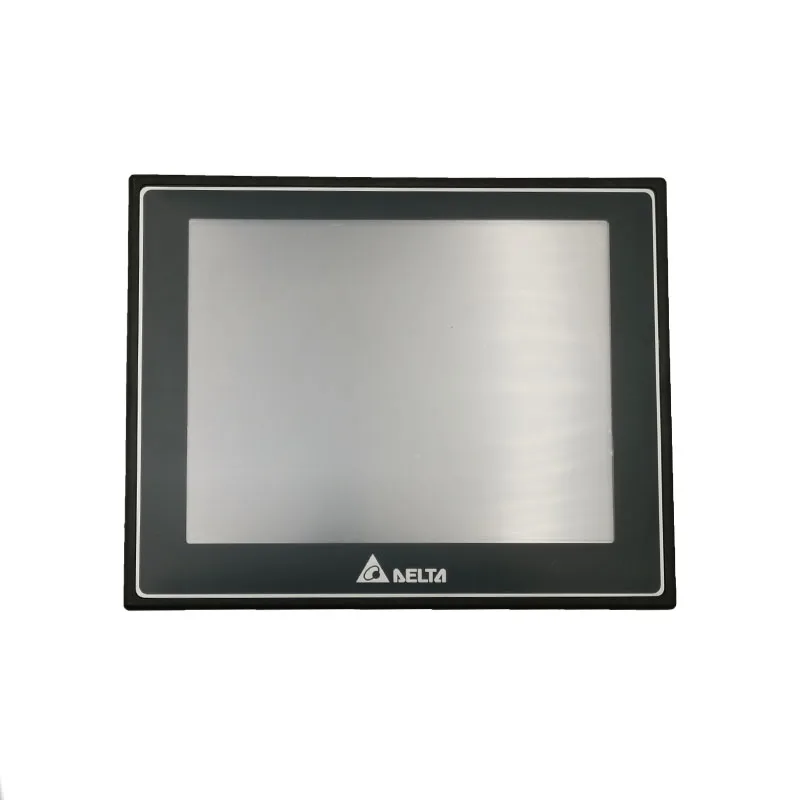

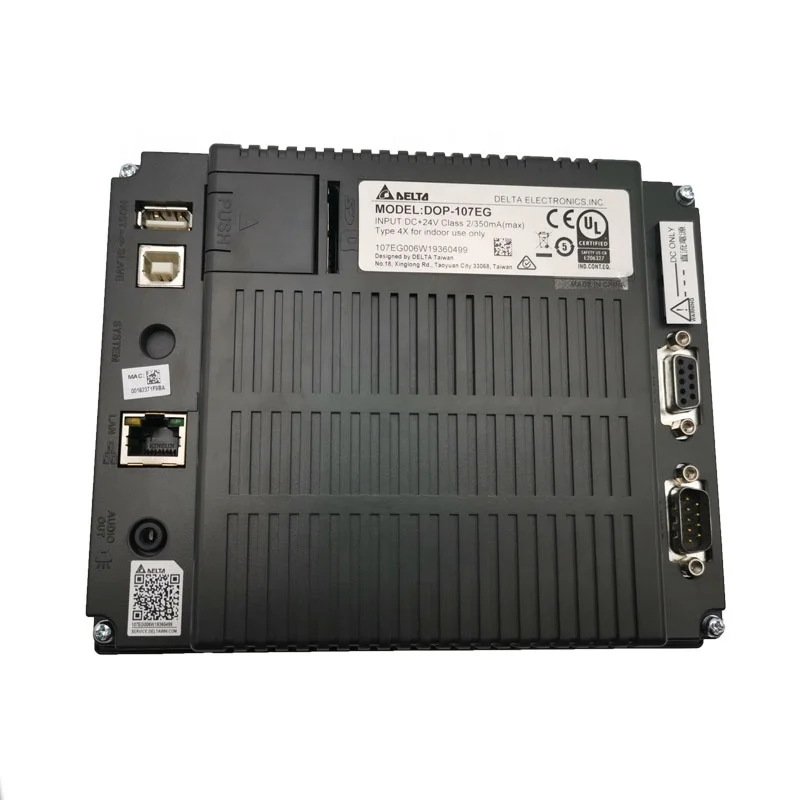

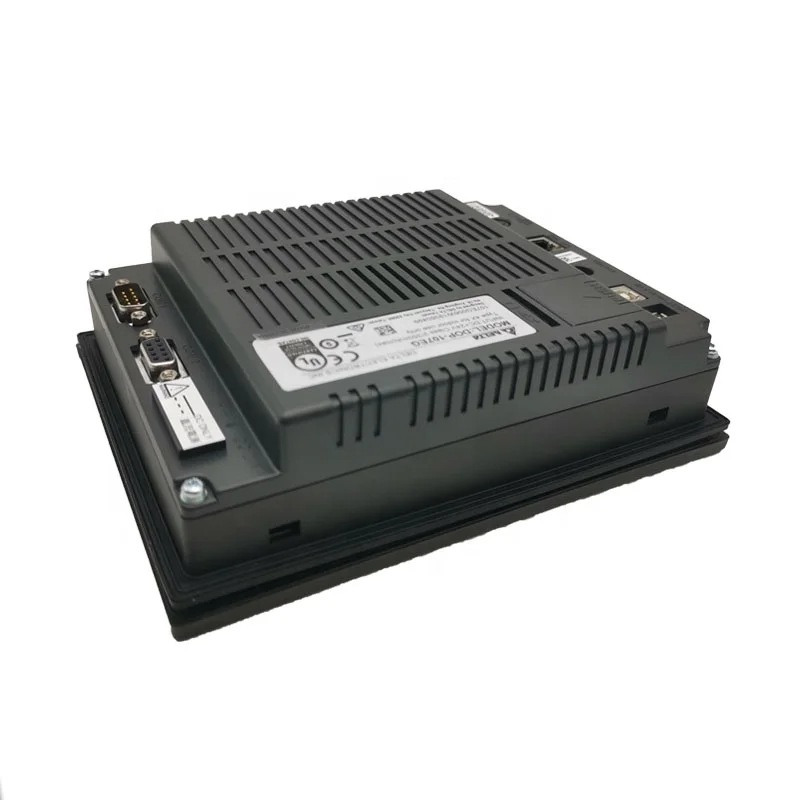

DOP-107EG Delta 7 inch Ethernet 800Hz HMI Touch Screen 7" Panel 800x600 with USB Program Ddownload Cable
replace: DOP-B07E515 / DOP-B07PS515 /DOP-B07S515
1. Shippinglist
1PC
7800600pixelsDelta HMI Touch Screen
1PC
USB program download Cable
2. Specifications:
Model
DOP-103BQ
DOP-107EG
DOP-107BV
Display Type
4.3" TFT LCD (65,535colors)
7" TFT LCD (65,535 colors)
7" TFT LCD (65,535 colors)
Resolution(Pixels)
480 x 272
800 x 600
800 x 480
LCD MODULE
Back Light
LED Back Light (less than 20,000 hours half-life at 25C) (Note 1)
Display Size
95.04 x 53.856 mm
141.00 x 105.75 mm
154.08x85.92mm
luminance(cd/m2)
400 cd/m?2. (Typ.)
450 cd / m?2. (Typ.)
400 cd / m?2. (Typ.)
CPU
ARM Cortex-A8 (800MHz)
Flash ROM (Bytes)
256 MB
RAM (Bytes)
256 MB
Touch panel
Four-wire resistance type > 1,000,000 operated
Sound output
Buzzer
Multi-Tone Frequency (2K ~ 4K Hz)/80dB
AUX
N/A
Stereo output
N/A
Network port
N/A
1 Port, 10/100 Mbps
N/A
USB
1 USB Slave Ver 2.0, 1 USB Host Ver 2.0
SD
N/A
SD * 1
N/A
Serial COM Port
COM1
RS-232(supports hardware flow control) / RS-485*2
RS-232 (supports hardware flow control)*2
RS-232 (supports hardware flow control) / RS485 *2
COM2
RS-422 / RS-485*2
RS-232 (supports hardware flow control) / RS-485*2
RS-422 / RS-485 *2
COM3
N/A
RS-422 / RS-485*2
N/A
Function Key <

                                  Size                         Pixels

DOP-103WQ            4.3" TFT LCD           480 x 272

DOP-107WV            7" TFT LCD              800 x 480

DOP-110WS           10.1" TFT LCD          1024 x 600

DOP-103BQ            4.3" TFT LCD            480 x 272

DOP-107EG            7" TFT LCD               800 x 600

DOP-107BV            7" TFT LCD               800 x 480

DOP-107CV            7" TFT LCD               800 x 480

DOP-107EV            7" TFT LCD               800 x 480

DOP-110CS           10.1" TFT LCD           1024 x 600
